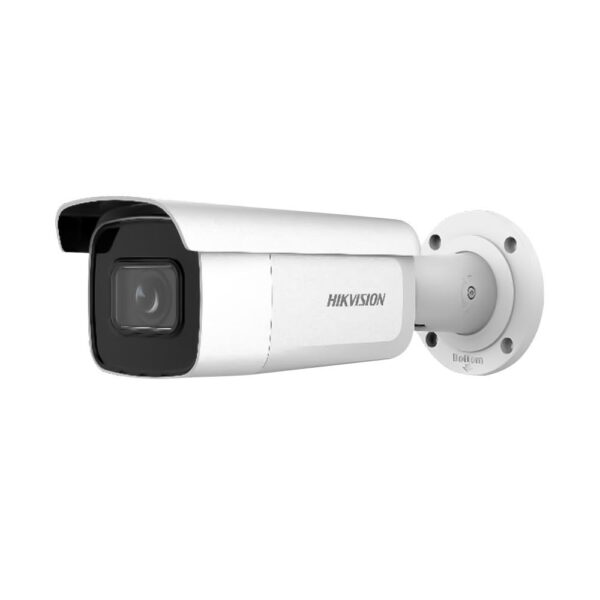

Specifications Hikvision DS-2CD2623G2-IZS

Features	Description
Product Type	2 MP AcuSense Motorized Varifocal Bullet Network Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR
Lens	Motorized Varifocal Lens, 2.8–12 mm
Aperture	F1.6
WDR	120 dB True WDR
IR Range	Up to 60 m
Video Compression	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Frame Rate	Up to 25 fps (50 Hz) / 30 fps (60 Hz)
AI Features	AcuSense Human and Vehicle Target Classification
Perimeter Protection	Line Crossing / Intrusion / Region Entrance / Region Exiting
Face Capture	Supported
Storage	MicroSD Card up to 256 GB, ANR Supported
Audio	1 × Audio Input / 1 × Audio Output
Alarm	1 × Alarm Input / 1 × Alarm Output
Network Interface	1 × RJ45 10/100 Mbps
PoE	IEEE 802.3at, Class 4
Power Supply	12 VDC ±25%
Power Consumption	Max. 13 W (12 VDC) / Max. 15 W (PoE)
Protection	IP67 / IK10
Operating Temperature	-30°C ~ 60°C
Dimensions	308.5 × 97.9 × 93 mm
Weight	Approx. 1440 g

CAMERA & IMAGE
Image Sensor	1/2.8″ Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR
Shutter Time	1/3 s ~ 1/100,000 s
Day & Night	IR Cut Filter
WDR	120 dB True WDR
Noise Reduction	3D DNR
Image Enhancement	BLC / HLC / 3D DNR / Defog / ROI
Angle Adjustment	Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°

LENS & IR
Lens Type	Motorized Varifocal Lens
Focal Length	2.8–12 mm
Aperture	F1.6
Horizontal FOV	106.6° ~ 31.7°
Vertical FOV	54.7° ~ 17.7°
Diagonal FOV	130.3° ~ 36.4°
DORI Range	Detection: 44.1–137.9 m / Observation: 17.5–54.7 m / Recognition: 8.8–27.5 m / Identification: 4.4–13.8 m
IR Range	Up to 60 m
IR Wavelength	850 nm
Smart Supplement Light	Supported

VIDEO & AUDIO
Video Compression	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Video Bit Rate	32 Kbps ~ 8 Mbps
H.264 Profile	Baseline / Main / High Profile
H.265 Profile	Main Profile
Bit Rate Control	CBR / VBR
ROI	1 Fixed Region for Main Stream and Sub-Stream
SVC	H.264 and H.265 Encoding
Audio	Mono Sound
Audio Input	1 × Line In
Audio Output	1 × Line Out
Audio Compression	G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

AI & SMART FEATURES
AcuSense	Human and Vehicle Target Classification
Perimeter Protection	Line Crossing / Intrusion / Region Entrance / Region Exiting
Face Capture	Supported
Motion Detection	Human and Vehicle Target Classification
Smart Events	Scene Change Detection / Video Tampering

NETWORK & STORAGE
Network Interface	1 × RJ45 10/100 Mbps Self-Adaptive Ethernet
PoE	IEEE 802.3at, Class 4
Network Protocols	TCP/IP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTSP / NTP / SMTP / IGMP / 802.1X / IPv4 / IPv6 / SNMP / SSL/TLS
ONVIF	Profile S / Profile G / Profile T
MicroSD	Up to 256 GB
Network Storage	NAS (NFS, SMB/CIFS) / ANR
Client	iVMS-4200 / Hik-Connect / Hik-Central

INTERFACE
Alarm Input	1
Alarm Output	1
Audio Input	1 × Line In
Audio Output	1 × Line Out
Reset	Supported

POWER & GENERAL
Power Supply	12 VDC ±25%, 1.08 A
Power Consumption	Max. 13 W (12 VDC) / Max. 15 W (PoE)
Protection	IP67 / IK10
Operating Temperature	-30°C ~ 60°C
Operating Humidity	95% or Less, Non-Condensing
Material	Aluminum Alloy
Dimensions	308.5 × 97.9 × 93 mm
Weight	Approx. 1440 g

Note: The Hikvision DS-2CD2623G2-IZS is a 2MP AcuSense motorized varifocal bullet network camera featuring a 2.8–12 mm motorized varifocal lens, 120 dB True WDR, up to 60 m IR illumination, H.265+ compression, human and vehicle target classification, perimeter protection, Face Capture, microSD storage up to 256 GB, PoE, IP67 and IK10 protection.
