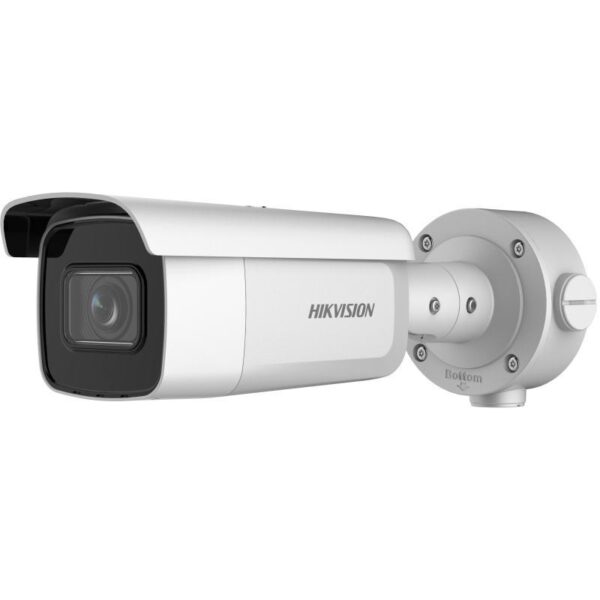

Specifications Hikvision DS-2CD3626G2T-IZS
| Features |
Description |
| Product Type |
2MP AcuSense Varifocal Bullet Network Camera |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Maximum Resolution |
2MP (1920 × 1080) |
| Lens |
Motorized Varifocal, 2.7–13.5 mm / 7–35 mm |
| Low-Light Technology |
Powered-by-DarkFighter |
| Wide Dynamic Range |
120 dB True WDR |
| AI Detection |
Human and Vehicle Target Classification |
| IR Range |
Up to 60 m / 80 m depending on lens |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Storage |
MicroSD up to 256GB |
| Audio |
1-ch Audio Input / 1-ch Audio Output |
| Alarm |
2 Inputs / 2 Outputs |
| PoE |
IEEE 802.3at, Class 4 |
| Protection |
IP67 / IK10 |
| CAMERA |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Maximum Resolution |
1920 × 1080 |
| Minimum Illumination |
Color: 0.002 Lux @ F1.4, AGC ON; B/W: 0 Lux with IR |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Slow Shutter |
Supported |
| Day & Night |
IR Cut Filter |
| Wide Dynamic Range |
120 dB True WDR |
| Image Enhancement |
BLC / HLC / 3D DNR |
| SNR |
≥ 52 dB |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| LENS |
| Lens Type |
Motorized Varifocal Lens |
| Focal Length |
2.7–13.5 mm / 7–35 mm |
| Iris Type |
Auto-Iris |
| Aperture |
F1.4 (2.7–13.5 mm) / F1.6 (7–35 mm) |
| 2.7–13.5 mm FOV |
Horizontal: 113° to 34° / Vertical: 58° to 19° / Diagonal: 138° to 39° |
| 7–35 mm FOV |
Horizontal: 30° to 11° / Vertical: 17° to 6° / Diagonal: 34° to 12° |
| Focus |
Motorized |
| DORI |
| 2.7–13.5 mm |
Detect: 44–129 m / Observe: 17–51 m / Recognize: 8–25 m / Identify: 4–13 m |
| 7–35 mm |
Detect: 137–400 m / Observe: 54–158 m / Recognize: 27–80 m / Identify: 13–40 m |
| ILLUMINATOR |
| Supplement Light Type |
IR |
| IR Range |
Up to 60 m (2.7–13.5 mm) / Up to 80 m (7–35 mm) |
| IR Wavelength |
850 nm |
| Smart Supplement Light |
Supported |
| VIDEO |
| Main Stream |
50 Hz: up to 50 fps at 1920 × 1080 / 1280 × 720
60 Hz: up to 60 fps at 1920 × 1080 / 1280 × 720 |
| Sub-Stream |
50 Hz: 25 fps / 60 Hz: 30 fps |
| Third Stream |
Up to 15 fps |
| Fourth Stream |
Up to 15 fps |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Profile |
Baseline / Main / High Profile |
| H.265 Profile |
Main Profile |
| Bit Rate Control |
CBR / VBR |
| ROI |
Supported |
| ACUSENSE & SMART FEATURES |
| Human Detection |
Supported |
| Vehicle Detection |
Supported |
| Human / Vehicle Classification |
Deep Learning Based |
| Face Capture |
Supported |
| Line Crossing Detection |
Supported |
| Intrusion Detection |
Supported |
| Region Entrance Detection |
Supported |
| Region Exiting Detection |
Supported |
| Unattended Baggage Detection |
Supported |
| Object Removal Detection |
Supported |
| Scene Change Detection |
Supported |
| Audio Exception Detection |
Supported |
| AUDIO |
| Audio Input |
1-ch Line Input |
| Audio Output |
1-ch Line Output |
| Audio Compression |
G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| NETWORK |
| Network Interface |
1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| Protocols |
TCP/IP / IPv4 / IPv6 / HTTP / HTTPS / FTP / SMTP / DNS / DDNS / RTP / RTSP / RTCP / NTP / SNMP / IGMP / DHCP / UDP / UPnP |
| Integration |
ONVIF Profile S / Profile G / Profile T |
| API |
ISAPI / SDK |
| Cloud Service |
Hik-Connect |
| Client Software |
iVMS-4200 / Hik-Connect / Hik-Central |
| STORAGE |
| Memory Card |
MicroSD / MicroSDHC / MicroSDXC |
| Maximum Capacity |
Up to 256GB |
| ANR |
Supported |
| ALARM & INTERFACE |
| Alarm Input |
2 Inputs |
| Alarm Output |
2 Outputs |
| Audio Input |
1 Input |
| Audio Output |
1 Output |
| Reset |
Hardware Reset Supported |
| POWER |
| Power Supply |
12 VDC ±25%, Max. 13 W |
| PoE Standard |
IEEE 802.3at, Class 4 |
| PoE Power Consumption |
Max. 15 W |
| Power Interface |
Ø5.5 mm Coaxial Power Plug |
| PROTECTION & GENERAL |
| Ingress Protection |
IP67 |
| Vandal Resistance |
IK10 |
| Housing Material |
Aluminum Alloy |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Dimensions |
Ø105 × 340.8 mm |
| Net Weight |
Approx. 1.3 kg |
Note: The Hikvision DS-2CD3626G2T-IZS is a 2MP AcuSense Varifocal Bullet Network Camera featuring a 1/2.8″ Progressive Scan CMOS sensor, 1920 × 1080 resolution, DarkFighter low-light technology, 120 dB True WDR and motorized varifocal lens options of 2.7–13.5 mm or 7–35 mm. It supports human and vehicle target classification, face capture, IR illumination up to 60 m or 80 m depending on lens, H.265+ compression, MicroSD storage up to 256GB, audio/alarm interfaces, IEEE 802.3at PoE, IP67 and IK10 protection.
Important: The DS-2CD3626G2T-IZS is a 2MP AcuSense Motorized Varifocal Bullet Network Camera. It is available with 2.7–13.5 mm or 7–35 mm lenses. The 2.7–13.5 mm version provides IR up to 60 m, while the 7–35 mm version provides IR up to 80 m. The camera supports 120 dB True WDR, DarkFighter, human/vehicle classification, MicroSD up to 256GB, IP67, IK10 and PoE 802.3at.
