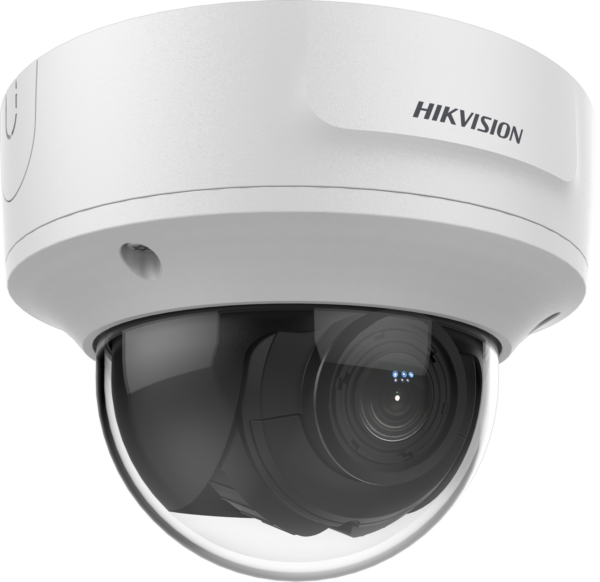

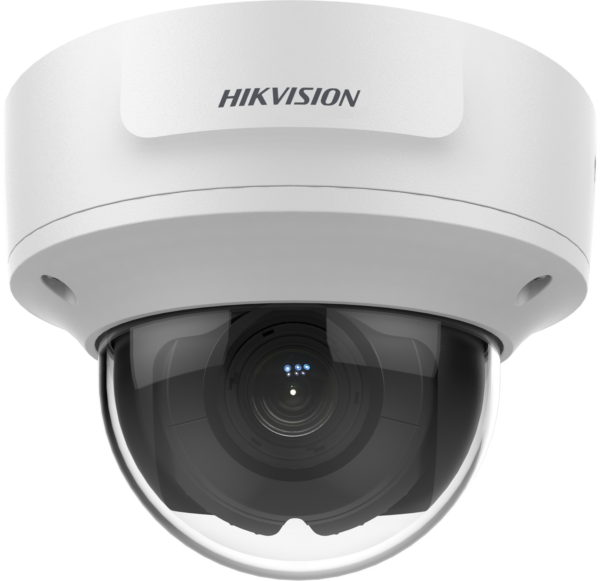

Specifications Hikvision DS-2CD3721G0-IZ
| Features |
Description |
| Product Type |
2MP Varifocal Dome Network Camera |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Maximum Resolution |
2MP (1920 × 1080) |
| Lens |
Motorized Varifocal Lens, 2.7–13.5 mm |
| Wide Dynamic Range |
Digital WDR |
| Minimum Illumination |
0.005 Lux @ F1.6, AGC ON |
| IR Range |
Up to 40 m |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Smart Detection |
Line Crossing / Intrusion / Object Removal / Unattended Baggage |
| Storage |
MicroSD up to 256GB |
| PoE |
IEEE 802.3af |
| Protection |
IP67 / IK10 |
| CAMERA |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Maximum Resolution |
1920 × 1080 |
| Minimum Illumination |
Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day & Night |
IR Cut Filter |
| Wide Dynamic Range |
Digital WDR |
| Image Enhancement |
BLC / HLC / 3D DNR |
| Angle Adjustment |
Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| LENS |
| Lens Type |
Varifocal Lens, Motorized |
| Focal Length |
2.7–13.5 mm |
| Lens Mount |
Ø14 |
| Iris Type |
Fixed |
| Aperture |
F1.6 |
| Field of View |
Horizontal: 98° to 38°
Vertical: 52° to 21°
Diagonal: 115° to 43° |
| Focus |
Motorized |
| DORI |
| Wide |
Detect: 44 m / Observe: 17 m / Recognize: 8 m / Identify: 4 m |
| Tele |
Detect: 133 m / Observe: 52 m / Recognize: 26 m / Identify: 13 m |
| ILLUMINATOR |
| Supplement Light Type |
IR |
| IR Range |
Up to 40 m |
| IR Wavelength |
850 nm |
| Smart Supplement Light |
Supported |
| VIDEO |
| Main Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz: 25 fps / 60 Hz: 30 fps |
| Third Stream |
Up to 1 fps, 640 × 360 |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream Compression |
H.265 / H.264 / MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| Bit Rate Control |
CBR / VBR |
| ROI |
1 Fixed Region for Main Stream |
| SMART FEATURES |
| Line Crossing Detection |
Supported |
| Intrusion Detection |
Supported |
| Object Removal Detection |
Supported |
| Unattended Baggage Detection |
Supported |
| Motion Detection |
Supported |
| Video Tampering Detection |
Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| Protocols |
TCP/IP / IPv4 / IPv6 / HTTP / HTTPS / FTP / SMTP / DNS / DDNS / RTP / RTSP / RTCP / NTP / UPnP / DHCP / UDP / QoS / 802.1X |
| Integration |
ONVIF Profile S / Profile G |
| API |
ISAPI / SDK |
| Cloud Service |
Hik-Connect |
| Client Software |
iVMS-4200 / Hik-Connect |
| STORAGE |
| Memory Card |
MicroSD / MicroSDHC / MicroSDXC |
| Maximum Capacity |
Up to 256GB |
| ANR |
Supported |
| POWER |
| Power Supply |
12 VDC ±25% |
| PoE |
IEEE 802.3af |
| PROTECTION & GENERAL |
| Ingress Protection |
IP67 |
| Vandal Resistance |
IK10 |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
Note: The Hikvision DS-2CD3721G0-IZ is a 2MP Varifocal Dome Network Camera featuring a 1/2.7″ Progressive Scan CMOS sensor, 1920 × 1080 resolution, motorized 2.7–13.5 mm varifocal lens, Digital WDR, 3D DNR, IR illumination up to 40 m, H.265+ compression, MicroSD storage up to 256GB, IEEE 802.3af PoE, IP67 and IK10 protection.
Important: The DS-2CD3721G0-IZ is a 2MP Varifocal Dome Network Camera. It uses a 2.7–13.5 mm motorized varifocal lens, providing a wide-to-tele horizontal FOV of approximately 98° to 38°. The camera supports IR up to 40 m, IP67 and IK10 protection.
