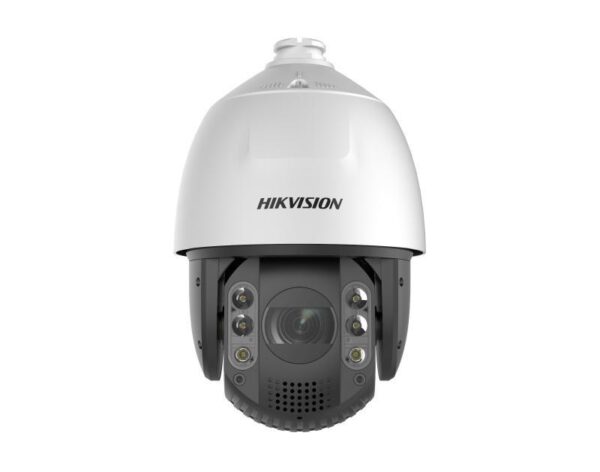

Specifications Hikvision DS-2DE7A232IW-AEB
| Image Sensor |
1/2.8″ progressive scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux@(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed |
1/1 s to 1/30000 s |
| Day & Night |
IR cut filter |
| Zoom |
32x optical, 16x digital |
| Slow Shutter |
Yes |
| DORI |
Detect (25px/m): 2046.9 m
Observe (63px/m): 812.3 m
Recognize (125px/m): 409.4 m
Identify (250px/m): 204.7 m
|
|
Lens
| Focal Length |
4.8 mm to 153 mm |
| FOV |
Horizontal field of view: 50.8° to 2.6° (wide-tele),
Vertical field of view: 29.4° to 1.5° (wide-tele),
Diagonal field of view:57.4° to 3° (wide-tele)
|
| Focus |
Auto, semi-auto, manual |
| Aperture |
Max. F1.6 |
| Zoom Speed |
Approx. 4.8 s |
|
Illuminator
| Supplement Light Type |
IR |
| Supplement Light Range |
IR Distance: up to 200 m |
|
Video
| Main Stream |
50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720),
60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720)
|
| Sub-Stream |
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
|
| Third Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
|
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
|
| Video Bit Rate |
32 kbps to 16384 kbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
8 fixed regions for each stream |
|
Audio
| Audio Compression |
G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Audio Bit Rate |
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC) |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering |
Yes |
|
| Image Settings |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) |
120 dB |
| SNR |
> 52 dB |
| Defog |
Digital defog |
| Image Stabilization |
EIS |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Privacy Mask |
24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus |
Yes |
| Regional Exposure |
Yes |
|
General DS-2DE7A232IW-AEB
| Power |
24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater);
Hi-PoE
|
| Dimension |
Ø 220 mm × 363.3 mm (Ø 8.66″ × 13.91″) |
| Weight |
Approx. 5 kg (11.03 lb.) |
| Material |
ADC12 |
| Operating Condition |
-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| Demist |
Yes |
|
