Specifications Hikvision DS-2SE4C225MWG-E/12
| Features |
Description |
| Product Type |
TandemVu 2+2MP 25X ColorVu & IR AcuSense Network Speed Dome |
| Camera Type |
TandemVu Speed Dome with Bullet & PTZ Channels |
| Bullet Resolution |
2MP (1920 × 1080) |
| PTZ Resolution |
2MP (1920 × 1080) |
| Bullet Lens |
2.8 mm Fixed Lens |
| PTZ Lens |
4.8–120 mm, 25× Optical Zoom |
| Digital Zoom |
16× |
| IR Range |
Up to 100 m |
| White Light Range |
Up to 30 m |
| Low-Light Technology |
ColorVu / DarkFighter |
| AI Detection |
Human / Vehicle Classification |
| Audio |
Built-in Speaker & Dual Microphone |
| PoE |
IEEE 802.3at |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
Bullet Channel: 1/2.8″ Progressive Scan CMOS
PTZ Channel: 1/2.8″ Progressive Scan CMOS |
| Maximum Resolution |
1920 × 1080 |
| Minimum Illumination |
Bullet: 0.0005 Lux @ F1.0, AGC ON, 0 Lux with Light
PTZ: Color 0.005 Lux @ F1.6, B/W 0.001 Lux @ F1.6, 0 Lux with IR |
| Shutter Speed |
1 s to 1/30,000 s |
| Day/Night |
ICR |
| Slow Shutter |
Supported |
| LENS |
| Bullet Lens |
2.8 mm Fixed Lens |
| Bullet Aperture |
F1.0 |
| Bullet FOV |
Horizontal: 106.1°, Vertical: 56.8°, Diagonal: 126.5° |
| PTZ Lens |
4.8–120 mm |
| PTZ Optical Zoom |
25× |
| PTZ Digital Zoom |
16× |
| PTZ Aperture |
F1.6 |
| PTZ FOV |
Horizontal: 54.8° to 2.8°
Vertical: 31.4° to 1.5°
Diagonal: 62.2° to 3.2° |
| Focus |
Auto / Manual / Semi-Auto |
| Zoom Speed |
Approx. 3.6 s |
| ILLUMINATOR |
| PTZ IR |
Up to 100 m |
| Bullet White Light |
Up to 30 m |
| Smart Supplement Light |
Supported |
| Light Control |
Automatic / Manual |
| PTZ |
| Pan Range |
360° Endless |
| Tilt Range |
-15° to 90° |
| Pan Speed |
Configurable 0.1° to 80°/s; Preset Speed 80°/s |
| Tilt Speed |
Configurable 0.1° to 80°/s; Preset Speed 80°/s |
| Presets |
300 |
| Patrol Scan |
8 Patrols, up to 32 Presets per Patrol |
| Pattern Scan |
4 Pattern Scans |
| 3D Positioning |
Supported |
| Auto Flip |
Supported |
| Power-off Memory |
Supported |
| VIDEO |
| Main Stream |
50 Hz: 25 fps up to 1920 × 1080
60 Hz: 30 fps up to 1920 × 1080 |
| Sub-Stream |
50 Hz: 25 fps / 60 Hz: 30 fps |
| Third Stream |
Up to 1920 × 1080 |
| Video Compression |
H.265 / H.264 / MJPEG |
| H.264 Profile |
Baseline / Main / High Profile |
| H.265+ |
Supported |
| H.264+ |
Supported |
| SVC |
Supported |
| ROI |
8 Fixed Regions for Each Stream |
| AI & ACUSENSE |
| Human Detection |
Supported |
| Vehicle Detection |
Supported |
| Human / Vehicle Classification |
Supported |
| Line Crossing |
Supported |
| Intrusion Detection |
Supported |
| Region Entrance Detection |
Supported |
| Region Exiting Detection |
Supported |
| Face Detection |
Supported |
| Deep Learning |
Human and Vehicle Target Classification |
| Dual-VCA |
Supported |
| IMAGE |
| WDR |
Supported |
| HLC |
Supported |
| BLC |
Supported |
| 3D DNR |
Supported |
| Defog |
Supported |
| Regional Exposure |
Supported |
| Regional Focus |
Supported |
| Image Enhancement |
ColorVu / DarkFighter |
| AUDIO |
| Microphone |
Built-in Dual Microphone |
| Speaker |
Built-in Speaker |
| Audio Compression |
G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| Audio Bit Rate |
32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 / 16 / 32 / 48 kHz |
| Noise Filtering |
Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100M Self-Adaptive Ethernet |
| Protocols |
IPv4 / IPv6 / HTTP / HTTPS / 802.1X / QoS / FTP / SMTP / UPnP / SNMP / DNS / DDNS / NTP / RTSP / RTCP / RTP / TCP/IP / UDP / IGMP / ICMP / DHCP / PPPoE / Bonjour / WebSocket / WebSockets |
| Integration |
ONVIF Profile S / G / T |
| API |
ISAPI / SDK / ISUP |
| Simultaneous Live View |
Up to 20 Channels |
| Maximum Users |
Up to 32 Users |
| Client Software |
iVMS-4200 / HikCentral Pro / Hik-Connect |
| STORAGE |
| Network Storage |
NAS (NFS / SMB / CIFS) |
| ANR |
Supported |
| Smart Record |
Supported |
| Dual-VCA |
Supported |
| INTERFACE |
| Alarm Input |
2 |
| Alarm Output |
2 |
| Audio Input |
1 × 3.5 mm |
| Audio Output |
1 × 3.5 mm |
| Ethernet |
1 × RJ45 10/100M |
| POE & POWER |
| PoE Standard |
IEEE 802.3at |
| Power Supply |
12 VDC |
| PoE Voltage |
42.5–57.2 V |
| Power Consumption |
Max. 40 W |
| PROTECTION & GENERAL |
| Ingress Protection |
IP67 |
| Lightning Protection |
TVS 6000V |
| Operating Temperature |
-30°C to 65°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Dimensions |
Ø166 × 294.8 mm |
| Net Weight |
Approx. 3.0 kg |
| Material |
ADC12 |

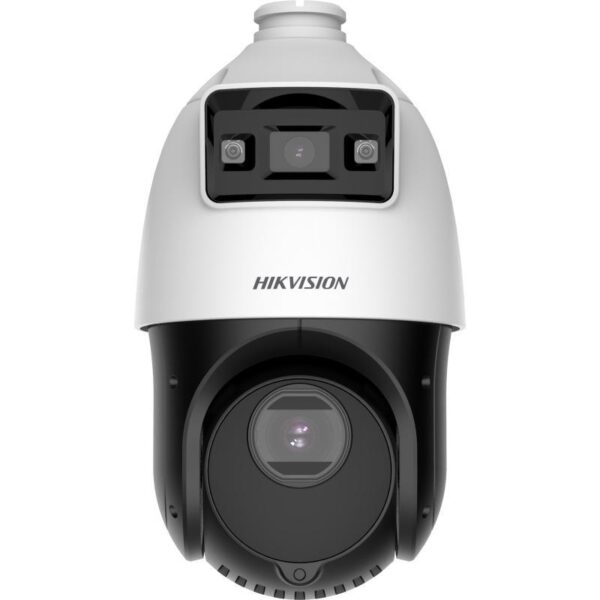

Note: The Hikvision DS-2SE4C225MWG-E/12 is a TandemVu 2+2MP 25X ColorVu & IR AcuSense Network Speed Dome that combines a fixed Bullet channel and a PTZ channel in one camera. The Bullet channel uses a 2.8 mm lens with ColorVu technology, while the PTZ channel provides 25× optical zoom and 16× digital zoom. The camera provides up to 100 m IR distance and 30 m white light, supports human and vehicle classification, built-in speaker and dual microphones, and IEEE 802.3at PoE+.
Important: The Hikvision DS-2SE4C225MWG-E/12 is a TandemVu Speed Dome combining 2 × 2MP camera channels, 25× optical zoom and 16× digital zoom. It features ColorVu and DarkFighter technology, up to 100 m IR, 30 m white light, human/vehicle classification, active strobe and audio alarm. The camera supports IEEE 802.3at PoE+, IP67 protection, ONVIF Profile S/G/T and Hik-Connect.
