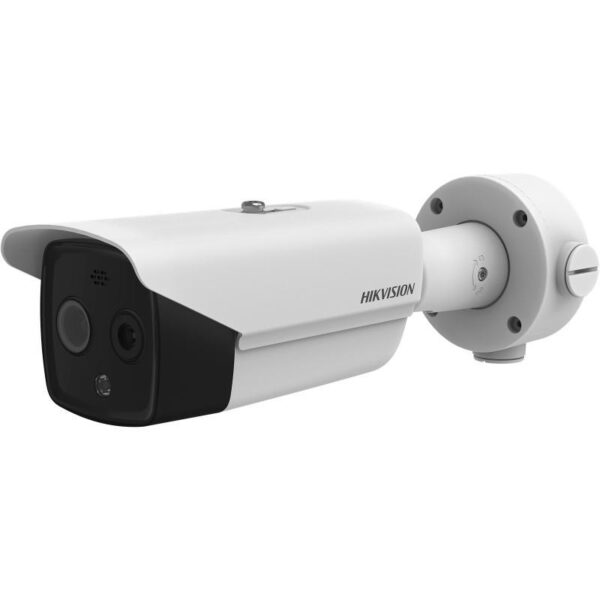

Specifications Hikvision DS-2TD2617-6/QA

Features	Description
Product Type	Thermal & Optical Bi-Spectrum Network Bullet Camera
Camera Type	Bi-Spectrum Bullet Camera
Thermal Resolution	160 × 120
Optical Resolution	4MP (2688 × 1520)
Thermal Lens	6.2 mm Fixed Lens
Optical Lens	8 mm Fixed Lens
Thermal NETD	<40 mK (@25°C, F#=1.1)
Temperature Measurement	-20°C to 150°C
Temperature Accuracy	±8°C
IR Range	Up to 40 m
White Light Range	Up to 40 m
Smart Detection	VCA / Fire Detection / Smoking Detection / Temperature Exception Alarm
Storage	MicroSD up to 256GB
PoE	IEEE 802.3af, Class 3
Protection	IP67 / IK10

THERMAL MODULE
Image Sensor	Vanadium Oxide Uncooled Focal Plane Arrays
Resolution	160 × 120
Pixel Pitch	17 μm
Spectral Range	8 μm to 14 μm
NETD	<40 mK (@25°C, F#=1.1)
Focal Length	6.2 mm
IFOV	2.74 mrad
Field of View	25.0° × 18.7° (H × V)
Minimum Focusing Distance	0.6 m
Aperture	F1.1
Digital Zoom	×2 / ×4

OPTICAL MODULE
Image Sensor	1/2.7″ Progressive Scan CMOS
Resolution	2688 × 1520
Minimum Illumination	0.0089 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed	1 s to 1/100000 s
Focal Length	8 mm
Field of View	39.42° × 22.14° (H × V)
Aperture	F1.6
WDR	120 dB
Day/Night	IR Cut Filter with Auto Switch

IMAGE FEATURES
Thermal Image Processing	Linear / Histogram / Self-Adaptive Thermal AGC / DDE / 3D DNR
Target Coloration	White Hot / Black Hot
Thermal Color Palettes	Multiple Color Palettes
Bi-Spectrum Image Fusion	Supported
Picture in Picture	Supported
Sun-Reflection Filter	Supported

ILLUMINATOR & ALARM
IR Distance	Up to 40 m
IR Adjustment	Intensity and Angle Automatically Adjusted
White Light Range	Up to 40 m
Visual Alarm	White Light Alarm with Adjustable Flashing Frequency
Audio Alarm	2 Preset Voice Alerts + 6 User-Defined Voice Alerts

SMART FEATURES
VCA	Line Crossing / Intrusion / Region Entrance / Region Exiting
VCA Rules	Up to 8 Rules
Temperature Measurement	10 Points / 10 Areas / 1 Line, 21 Rules Total
Temperature Range	-20°C to 150°C
Temperature Accuracy	±8°C
Temperature Exception Alarm	Supported
Fire Detection	Supported
Smoking Detection	Supported

VIDEO
Thermal Main Stream	25 fps: 1280 × 720 / 704 × 576 / 640 × 480 / 352 × 288 / 320 × 240
Optical Main Stream	50 Hz: 25 fps up to 2688 × 1520; 60 Hz: 30 fps up to 2688 × 1520
Thermal Sub-Stream	25 fps: 704 × 576 / 352 × 288 / 320 × 240
Optical Sub-Stream	50 Hz: 25 fps / 60 Hz: 30 fps
Video Compression	H.265 / H.264 / MJPEG
Video Streams	Thermal + Optical

AUDIO
Audio Input	1 × 3.5 mm Mic / Line In
Audio Output	1 × Line Out
Audio Compression	G.722.1 / G.711 μ-law / G.711 A-law / MP2L2 / G.726 / PCM
Audio Alarm	Supported

NETWORK
Network Interface	1 × RJ45 10/100M Self-Adaptive Ethernet
RS-485	1 × RS-485, Half Duplex
Protocols	IPv4 / IPv6 / HTTP / HTTPS / 802.1x / QoS / FTP / SMTP / UPnP / SNMP / DNS / DDNS / NTP / RTSP / RTCP / RTP / TCP / UDP / IGMP / ICMP / DHCP / PPPoE / TLS
API	ISAPI / HIKVISION SDK / ISUP / ONVIF Profile S / G / T
Maximum Live View	Up to 20 Channels
Maximum Users	Up to 32 Users
Client Software	iVMS-4200 / Hik-Connect

STORAGE
MicroSD Card	Up to 256GB
Storage Type	MicroSD / MicroSDHC / MicroSDXC
Network Storage	NAS (NFS / SMB / CIFS)
ANR	Supported

INTERFACE
Alarm Input	2
Alarm Output	2
Audio Input	1 × 3.5 mm Mic / Line In
Audio Output	1 × Linear Level
Ethernet	1 × RJ45 10/100M
RS-485	1 × RS-485
Analog Video Output	1 × BNC, PAL / NTSC
MicroSD Slot	Supported

POE & POWER
PoE Standard	IEEE 802.3af, Class 3
Power Supply	12 VDC ±25%
Maximum Power Consumption	6 W (12 VDC) / 6.5 W (PoE)
Power Interface	Ø5.5 mm Coaxial Power Plug

PROTECTION & GENERAL
Ingress Protection	IP67
Vandal Resistance	IK10
Lightning Protection	TVS 6000V
Operating Temperature	-40°C to 65°C
Operating Humidity	≤95% RH
Dimensions	358.3 × 113.5 × 115.2 mm
Net Weight	Approx. 1.76 kg

Note: The Hikvision DS-2TD2617-6/QA is a Thermal & Optical Bi-Spectrum Network Bullet Camera combining a 160 × 120 VOx uncooled thermal module with a 4MP optical camera. The thermal module features a 6.2 mm lens, NETD below 40 mK and a 25.0° × 18.7° field of view, while the optical module uses an 8 mm lens with 2688 × 1520 resolution and 120 dB WDR. It supports temperature measurement from -20°C to 150°C with ±8°C accuracy, fire detection, smoking detection, VCA, temperature exception alarms, bi-spectrum image fusion and picture-in-picture.

Important: The Hikvision DS-2TD2617-6/QA is a Thermal & Optical Bi-Spectrum Bullet Camera featuring 160 × 120 thermal imaging and 4MP optical imaging. It supports temperature measurement from -20°C to 150°C, fire detection, smoking detection, VCA, temperature exception alarms, 40 m IR, 40 m white light alarm, IEEE 802.3af PoE, IP67 and IK10 protection.
