DS-3E0106P-E/M

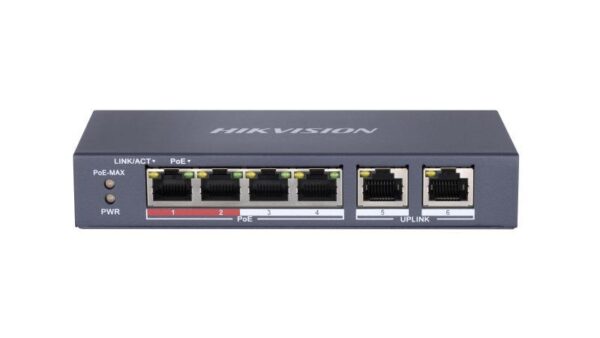

Hikvision DS-3E0106P-E/M

6-Port Fast Ethernet PoE Switch

4 × 10/100Mbps PoE ports for network and power
2 × 10/100Mbps uplink ports
Supports IEEE 802.3af/at PoE standards
Up to 35W total PoE power budget
Supports PoE transmission up to 300m
Compact plug-and-play design for easy installation

Specifications Hikvision DS-3E0106P-E/M

Features	Description
Product Type	4-Port Fast Ethernet Unmanaged PoE Switch
Port	4 × 10/100 Mbps PoE Ports + 2 × 10/100 Mbps RJ45 Ports
PoE Standard	IEEE 802.3af / 802.3at
PoE Budget	35 W
Maximum Port Power	30 W per PoE Port
Long Range	Up to 300 m
Switching Capacity	1.2 Gbps
Packet Forwarding Rate	0.89 Mpps
MAC Address Table	2K
Surge Protection	6 kV
Management	Unmanaged
Installation	Desktop / Wall-Mounted
Power Supply	48 VDC, 0.8 A
Housing	Metal, Fan-Free Design
Dimensions	145 × 68.45 × 25.6 mm

Note: The Hikvision DS-3E0106P-E/M is a 4-Port Fast Ethernet Unmanaged PoE Switch featuring 4 × 10/100 Mbps PoE ports, 2 × 10/100 Mbps RJ45 uplink ports, IEEE 802.3af/at PoE, 35 W PoE power budget, up to 300 m long-range transmission, 6 kV surge protection, and a fan-free metal housing.
