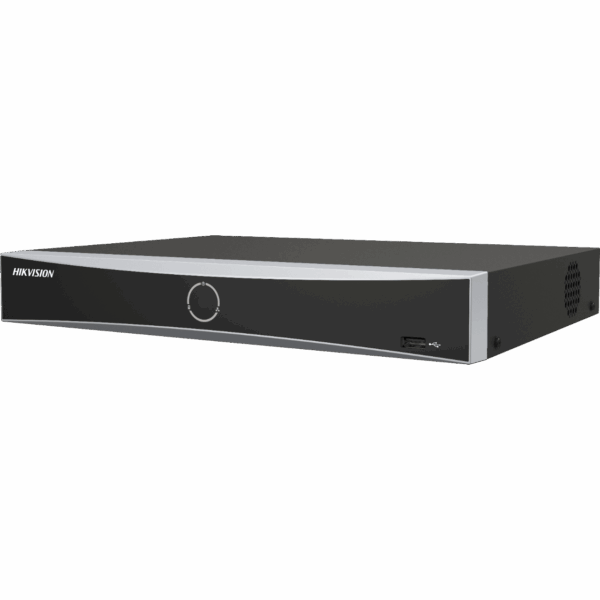

Specifications Hikvision DS-7608NXI-K2
| Features | Description |
|---|---|
| Product Type | 8-Channel 1U AcuSense 4K Network Video Recorder |
| IP Video Input | 8 Channels |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Video Compression | H.265 / H.265+ / H.264 / H.264+ |
| Recording Resolution | Up to 12MP |
| Decoding Capability | 2-ch @ 12MP / 3-ch @ 8MP / 6-ch @ 4MP / 12-ch @ 1080p |
| Synchronous Playback | 8 Channels |
| HDMI Output | 1 × HDMI, up to 4K (3840 × 2160) @ 30Hz |
| VGA Output | 1 × VGA, up to 1920 × 1080 @ 60Hz |
| Audio Input | 1 × RCA |
| Audio Output | 1 × RCA |
| Two-Way Audio | 1 × RCA |
| HDD Interface | 2 × SATA |
| Maximum HDD Capacity | Up to 10TB per HDD |
| RAID | Not Supported |
| Network Interface | 1 × RJ45 10/100/1000 Mbps |
| USB Interface | 1 × USB 2.0 / 1 × USB 3.0 |
| Alarm Input / Output | 4 / 1 |
| AI by Device | Facial Recognition / Perimeter Protection / Motion Detection 2.0 |
| Motion Detection 2.0 | All Channels, Human and Vehicle Recognition |
| Perimeter Protection | 2 Channels, Human and Vehicle Recognition |
| Facial Recognition | 1-Channel Face Detection / 4-Channel Face Picture Comparison |
| ONVIF | Profile S / Profile G |
| Power Supply | 12 VDC, 3.3A |
| Power Consumption | ≤15W (Without HDD) |
| Operating Temperature | -10°C ~ 55°C |
| Operating Humidity | 10% ~ 90% RH, Non-Condensing |
| Dimensions | 385 × 315 × 52 mm |
| Weight | ≤1 kg (Without HDD) |
| VIDEO & RECORDING | |
|---|---|
| IP Video Input | 8 Channels |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Compression | H.265 / H.265+ / H.264 / H.264+ |
| Recording Resolution | Up to 12MP |
| Synchronous Playback | 8 Channels |
| HDMI Output | Up to 4K (3840 × 2160) @ 30Hz |
| VGA Output | Up to 1920 × 1080 @ 60Hz |
| DECODING | |
|---|---|
| AI On | 1-ch @ 12MP / 2-ch @ 8MP / 4-ch @ 4MP / 8-ch @ 1080p |
| AI Off | 2-ch @ 12MP / 3-ch @ 8MP / 6-ch @ 4MP / 12-ch @ 1080p |
| Decoding Format | H.265 / H.265+ / H.264 / H.264+ |
| AI & SMART FEATURES | |
|---|---|
| Facial Recognition | 1-ch Facial Detection and Analytics / 4-ch Face Picture Comparison |
| Face Picture Library | Up to 16 Libraries / Up to 20,000 Face Pictures |
| Motion Detection 2.0 | All Channels, Human and Vehicle Recognition |
| Perimeter Protection | 2-ch, Human and Vehicle Recognition |
| Smart Search | Supported |
| STORAGE & INTERFACE | |
|---|---|
| HDD Interface | 2 × SATA |
| HDD Capacity | Up to 10TB per HDD |
| USB | 1 × USB 2.0 / 1 × USB 3.0 |
| Network Interface | 1 × RJ45 10/100/1000 Mbps |
| Alarm Input / Output | 4 / 1 |
| AUDIO & NETWORK | |
|---|---|
| Audio Input | 1 × RCA |
| Audio Output | 1 × RCA |
| Two-Way Audio | 1 × RCA |
| ONVIF | Profile S / Profile G |
| Network Protocols | TCP/IP / DHCP / IPv4 / IPv6 / DNS / DDNS / NTP / RTSP / SMTP / SNMP / NFS / iSCSI / ISUP / UPnP / HTTP / HTTPS |
| POWER & GENERAL | |
|---|---|
| Power Supply | 12 VDC, 3.3A |
| Power Consumption | ≤15W (Without HDD) |
| Operating Temperature | -10°C ~ 55°C |
| Operating Humidity | 10% ~ 90% RH, Non-Condensing |
| Dimensions | 385 × 315 × 52 mm |
| Weight | ≤1 kg (Without HDD) |
Note: The Hikvision DS-7608NXI-K2 is an 8-channel 1U AcuSense 4K Network Video Recorder supporting up to 12MP recording, 80Mbps incoming bandwidth, H.265+ compression, 2 SATA HDDs up to 10TB each, 4K HDMI output, Motion Detection 2.0, facial recognition and perimeter protection. It supports 8-channel synchronous playback and Gigabit Ethernet connectivity.
