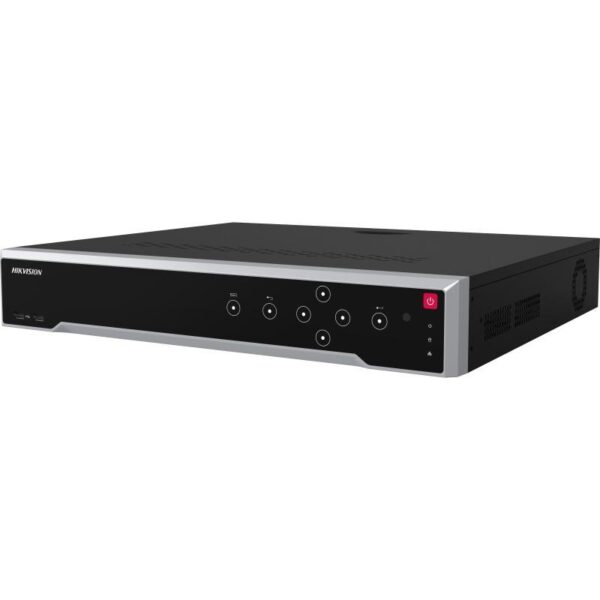

Specifications Hikvision DS-7716NI-M4
| Features | Description |
|---|---|
| Product Type | 16-Channel 1.5U 8K Network Video Recorder |
| IP Video Input | 16 Channels |
| Maximum IP Resolution | Up to 32 MP |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding Capability | 2-ch @ 32 MP + 2-ch @ 8 MP / 10-ch @ 8 MP / 20-ch @ 4 MP / 40-ch @ 1080p |
| Synchronous Playback | 16 Channels |
| HDMI 1 Output | Up to 8K (7680 × 4320) @ 30Hz |
| HDMI 2 Output | Up to 4K (3840 × 2160) @ 60Hz |
| VGA Output | Up to 1920 × 1080 @ 60Hz |
| Video Output | HDMI1/VGA Simultaneous, HDMI2/VGA Independent |
| Audio Input | 1 × RCA |
| Audio Output | 1 × RCA |
| Two-Way Audio | Supported |
| SATA | 4 × SATA Interfaces |
| HDD Capacity | Up to 16 TB per HDD |
| eSATA | 1 × eSATA |
| Network Interface | 2 × RJ45 10/100/1000 Mbps |
| USB | 2 × USB 2.0 + 1 × USB 3.0 |
| Serial Interface | 2 × RS-485 / 1 × RS-232 |
| Alarm I/O | 16 Inputs / 9 Outputs |
| Remote Connection | 128 Connections |
| RAID | Not Supported |
| Network Protocol | TCP/IP / DHCP / IPv4 / IPv6 / DNS / DDNS / NTP / RTSP / SMTP / SNMP / NFS / iSCSI / ISUP / UPnP / HTTP / HTTPS / ONVIF / OTAP |
| Power Supply | 100–240 VAC, 50/60 Hz |
| VIDEO & DECODING | |
|---|---|
| IP Input | 16 Channels |
| Maximum Resolution | Up to 32 MP |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Decoding | 2-ch @ 32 MP + 2-ch @ 8 MP / 10-ch @ 8 MP / 20-ch @ 4 MP / 40-ch @ 1080p |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Synchronous Playback | 16 Channels |
| VIDEO OUTPUT | |
|---|---|
| HDMI 1 | Up to 8K (7680 × 4320) @ 30Hz |
| HDMI 2 | Up to 4K (3840 × 2160) @ 60Hz |
| VGA | Up to 1920 × 1080 @ 60Hz |
| CVBS | 1 × BNC |
| Output Mode | HDMI1/VGA Simultaneous, HDMI2/VGA Independent |
| STORAGE & INTERFACE | |
|---|---|
| SATA | 4 × SATA |
| HDD Capacity | Up to 16 TB per HDD |
| eSATA | 1 × eSATA |
| Network Port | 2 × RJ45 10/100/1000 Mbps |
| USB | 2 × USB 2.0 + 1 × USB 3.0 |
| ALARM & SERIAL | |
|---|---|
| Alarm Input | 16 Channels |
| Alarm Output | 9 Channels |
| RS-485 | 2 Interfaces |
| RS-232 | 1 Interface |
| APPLICATION | |
|---|---|
| CCTV System | 16-Channel High-Resolution IP Surveillance System |
| 8K Surveillance | Up to 8K HDMI Video Output |
| High-Resolution Cameras | Supports IP Cameras up to 32 MP |
| Enterprise Security | Professional Network Video Recording and Monitoring |
| Smart Surveillance | VCA / ANPR / Heat Map / People Counting |
Note: The Hikvision DS-7716NI-M4 is a 16-channel 1.5U 8K Network Video Recorder supporting up to 32 MP IP cameras, 256 Mbps incoming and outgoing bandwidth, 16-channel synchronous playback, 2 HDMI outputs including up to 8K resolution, 4 SATA interfaces supporting up to 16 TB per HDD, dual Gigabit Ethernet ports, VCA, ANPR, heat map and people counting functions. It is designed for professional high-resolution IP surveillance systems.
