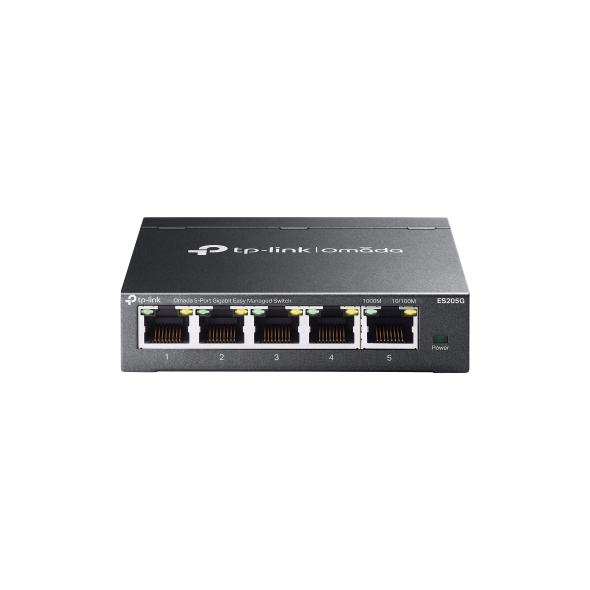

Specifications TP-Link ES205G
| Features |
Description |
| Device Type |
5-Port Gigabit Easy Managed Switch |
| Network Ports |
5 × 10/100/1000Mbps RJ45 Ports |
| Management |
Omada Cloud, Web GUI, Omada App |
| Switching Capacity |
10 Gbps |
| Packet Forwarding Rate |
7.4 Mpps |
| MAC Address Table |
8K Entries |
| Smart Features |
VLAN, QoS, IGMP Snooping, Loop Prevention |
| Design |
Fanless Metal Housing |
| Application |
Small Office, Home Office, Enterprise Edge Network |
| Power Supply |
5V DC / 0.6A External Adapter |
| Device Type |
Easy Managed Gigabit Switch |
| Network Ports |
5 × Gigabit RJ45 Ports |
| Switching Capacity |
10 Gbps |
| Packet Forwarding Rate |
7.4 Mpps |
| MAC Address Table |
8K |
| Packet Buffer |
4 Mbit |
| Jumbo Frame |
15 KB |
| SMART FEATURES |
| VLAN |
802.1Q, MTU VLAN, Port-Based VLAN |
| QoS |
802.1p / DSCP QoS, Bandwidth Control |
| Layer 2 Features |
Loop Prevention, Link Aggregation, Port Mirroring, LLDP |
| Multicast |
IGMP Snooping v1/v2/v3 |
| NETWORK |
| Network Standard |
IEEE 802.3i / 802.3u / 802.3ab / 802.3x / 802.1Q / 802.1p |
| Transmission Method |
Store-and-Forward |
| Flow Control |
IEEE 802.3x Flow Control |
| Management |
Omada Cloud Controller, Omada App, Web GUI |
| GENERAL |
| Housing |
Metal Desktop / Wall-Mount Case |
| Cooling |
Fanless Design |
| Surge Protection |
±6kV |
| Operating Temperature |
0°C to 40°C |
| Dimensions |
100 × 98 × 25 mm |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The TP-Link ES205G is a 5-port Gigabit Easy Managed switch with Omada cloud management, VLAN, QoS, IGMP Snooping, and fanless operation. It is ideal for small office and business networks requiring simple centralized management.
