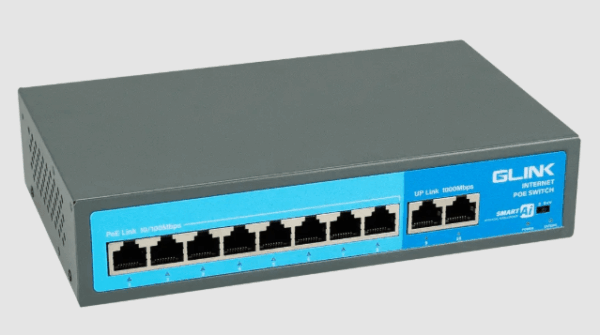

GLink GPOE-02

GLink GPOE-02

GLINK GPOE-02

8-Port AI PoE Switch

  • 8 PoE ports 10/100Mbps with 2 Gigabit Uplink ports
  • Supports IEEE 802.3af/at PoE with 30W per port
  • PoE Power Budget up to 120W for IP Camera and network devices
  • Supports VLAN, Extend Mode up to 250m and Smart AI Watchdog
  • Built-in overload and short circuit protection system
  • Supports plug & play with LED status indicators
หมวดหมู่: , ป้ายกำกับ:

คุณสมบัติ GLINK GPOE-02

Features Description
Device Type 8-Port PoE Switch with 2 Gigabit Uplink Ports
PoE Ports 8 × RJ45 10/100 Mbps PoE Ports
Uplink Ports 2 × RJ45 10/100/1000 Mbps Gigabit Uplink Ports
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Power Up to 30W per Port / Total 120W PoE Budget
Transmission Distance Up to 250 meters (Extend Mode)
Switching Capacity 12 Gbps
Installation Plug & Play, No Configuration Required
Application IP Camera, Access Point, VoIP Phone and PoE Devices
Power Supply AC 110–240V
Device Type AI PoE Switch for CCTV & Network Devices
PoE Ports 8 × 10/100 Mbps RJ45 PoE Ports
Uplink Ports 2 × Gigabit RJ45 Ports
PoE Standard IEEE 802.3af / IEEE 802.3at
MAC Address Table 2K Entries
Forwarding Rate 8.92 Mpps
PERFORMANCE
PoE Budget 120W Total Power Budget
Maximum Power per Port 30W per Port
Extend Mode Supports Data & Power Transmission up to 250m
Protection Short Circuit Protection
AI Function Smart AI PoE Management
NETWORK
Network Speed 10/100 Mbps PoE Ports / 10/100/1000 Mbps Uplink Ports
Transmission Mode Store-and-Forward
Compatible Devices IP Camera, Wireless Access Point, IP Phone
Topology Star Network
GENERAL
Power Supply AC 110–240V, 50/60Hz
Power Consumption Max. 120W
Operating Temperature 0°C to 55°C
Dimensions Approx. 190 × 100 × 30 mm
LED Indicator Power, Link/Activity, PoE Status

Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official information before installation.

Important: The GLINK GPOE-02 is an 8-port PoE switch designed for CCTV and network installations. It supports IEEE 802.3af/at PoE, provides up to 30W per port with a total PoE budget of 120W, and supports Extend Mode for long-distance transmission up to 250 meters. The 2 Gigabit uplink ports are suitable for connecting NVR, router, or core switches.
