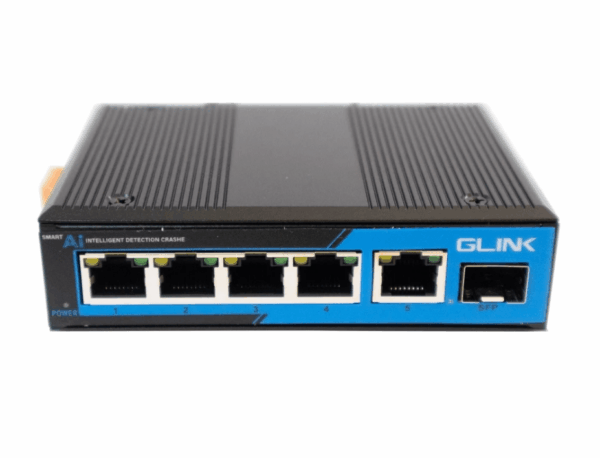

GLink GPOE-04

GLink GPOE-04

GLINK GPOE-04

Industrial Gigabit PoE Switch

  • 4 PoE Gigabit ports with 1 RJ45 Uplink and 1 SFP port
  • Supports PoE Power Budget up to 75W for IP Camera and devices
  • Supports Extend Mode up to 250m, VLAN and Smart AI Watchdog
  • Features LPP & BSP protection for network stability
  • Industrial design with IP40 protection and wide temperature support
  • Supports Din Rail installation with overload and short circuit protection
หมวดหมู่: , , ป้ายกำกับ:

Specification GLINK GPOE-04

Features Description
Device Type Industrial Grade Gigabit PoE Switch
PoE Ports 4 × 10/100/1000 Mbps RJ45 PoE Ports
Uplink Ports 1 × Gigabit RJ45 Uplink + 1 × Gigabit SFP Port
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Power Budget 75W Total Power Budget
Transmission Distance Up to 250 meters (Extend Mode on Port 1)
Network Speed Gigabit Ethernet 10/100/1000 Mbps
Smart Features LPP, BSP, VLAN, Smart AI Watchdog
Installation DIN Rail Mount / Industrial Installation
Power Supply AC 100–240V / Dual DC Terminal Input
Device Type Industrial Gigabit PoE Switch
PoE Ports 4 × 10/100/1000 Mbps RJ45 PoE Ports
Uplink Ports 1 × RJ45 Gigabit + 1 × SFP Gigabit
PoE Standard IEEE 802.3af / IEEE 802.3at
Switching Capacity 12 Gbps
MAC Address Table 2K Entries
PERFORMANCE
PoE Budget 75W Total Power Budget
Maximum Power per Port Up to 30W per Port
Extend Mode Port 1 Supports Data & PoE Transmission up to 250m
VLAN Function Port Isolation for Network Security
Protection LPP (Loop Protection Port), BSP (Broadcast Storm Protection)
Smart AI Watchdog Auto Detection & Recovery
NETWORK
Ethernet 10/100/1000 Mbps Gigabit Ethernet
Transmission Mode Store-and-Forward
Compatible Devices IP Camera, Access Point, IP Phone, IoT Devices
Input Interface RJ45 Uplink + SFP Fiber Uplink
GENERAL
Power Supply AC 100–240V 50/60Hz
Power Input Dual Terminal Power Input (Redundant Power)
Operating Temperature -10°C to 80°C
Storage Temperature -40°C to 80°C
Protection IP40 Industrial Grade
Installation DIN Rail Mount
Weight Approx. 322 g

Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official information before installation.

Important: The GLINK GPOE-04 is an Industrial Grade Gigabit PoE Switch designed for CCTV and industrial network systems. It provides 4 PoE Gigabit ports, 1 RJ45 uplink port, and 1 SFP fiber uplink port. The switch supports 75W PoE power budget, Extend Mode up to 250 meters, VLAN, LPP/BSP protection, Smart AI Watchdog, and redundant power input for reliable 24/7 operation.
