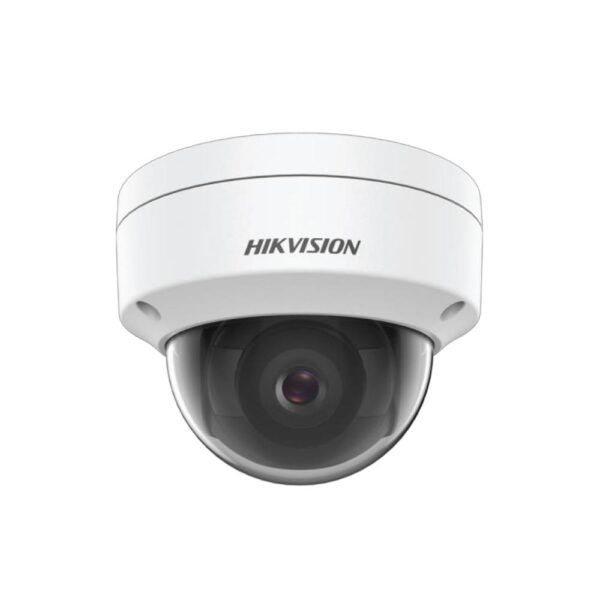

Specifications Hikvision DS-2CD1143G0-I
| Features |
Description |
| Product Type |
4 MP Fixed Dome Network Camera |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Min. Illumination |
Color: 0.01 Lux @ F2.0, AGC ON; B/W: 0 Lux with IR |
| Lens |
Fixed Focal Lens, 2.8 / 4 mm |
| Aperture |
F2.0 |
| WDR |
120 dB |
| IR Range |
Up to 30 m |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Frame Rate |
Up to 20 fps at 2560 × 1440; up to 25 fps (50 Hz) / 30 fps (60 Hz) at 1920 × 1080 |
| Storage |
NAS (NFS, SMB/CIFS) |
| Network Interface |
1 × RJ45 10/100 Mbps |
| PoE |
IEEE 802.3af, Class 3 |
| Power Supply |
12 VDC ±25% |
| Power Consumption |
Max. 5 W (12 VDC) / Max. 6.5 W (PoE) |
| Protection |
IP67 / IK10 |
| Operating Temperature |
-30°C ~ 60°C |
| Dimensions |
Ø111 × 82.4 mm |
| Weight |
Approx. 360 g |
| CAMERA & IMAGE |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Min. Illumination |
Color: 0.01 Lux @ F2.0, AGC ON; B/W: 0 Lux with IR |
| Shutter Time |
1/3 s ~ 1/100,000 s |
| Day & Night |
IR Cut Filter |
| WDR |
120 dB |
| Noise Reduction |
3D DNR |
| Image Enhancement |
BLC / HLC / 3D DNR |
| Angle Adjustment |
Pan: 0° ~ 355°, Tilt: 0° ~ 75° |
| LENS & IR |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
2.8 mm / 4 mm |
| Aperture |
F2.0 |
| Lens Mount |
M12 |
| Horizontal FOV |
98.0° (2.8 mm) / 78.7° (4 mm) |
| Vertical FOV |
53.1° (2.8 mm) / 43.1° (4 mm) |
| Diagonal FOV |
114.7° (2.8 mm) / 92.3° (4 mm) |
| IR Range |
Up to 30 m |
| IR Wavelength |
850 nm |
| Smart Supplement Light |
Supported |
| VIDEO |
| Main Stream |
50 Hz: 20 fps (2560 × 1440); 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440); 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Video Bit Rate |
32 Kbps ~ 8 Mbps |
| H.264 Profile |
Baseline / Main / High Profile |
| H.265 Profile |
Main Profile |
| Bit Rate Control |
CBR / VBR |
| ROI |
1 Fixed Region for Main Stream |
| SMART FEATURES |
| Motion Detection |
Supported |
| Video Tampering |
Supported |
| Region of Interest |
Supported |
| NETWORK & STORAGE |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet |
| PoE |
IEEE 802.3af, Class 3 |
| Network Protocols |
TCP/IP / ICMP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / RTCP / NTP / UPnP / SMTP / IGMP / QoS / IPv6 / IPv4 / UDP / SSL/TLS / Bonjour |
| ONVIF |
Profile S / Profile G |
| Network Storage |
NAS (NFS, SMB/CIFS) |
| Client |
iVMS-4200 / Hik-Connect |
| Simultaneous Live View |
Up to 6 Channels |
| POWER & GENERAL |
| Power Supply |
12 VDC ±25%, 0.4 A; PoE IEEE 802.3af, Class 3 |
| Power Consumption |
Max. 5 W (12 VDC) / Max. 6.5 W (PoE) |
| Protection |
IP67 / IK10 |
| Operating Temperature |
-30°C ~ 60°C |
| Operating Humidity |
95% or Less, Non-Condensing |
| Material |
Base: Metal; Cover: Plastic |
| Dimensions |
Ø111 × 82.4 mm |
| Weight |
Approx. 360 g |
Note: The Hikvision DS-2CD1143G0-I is a 4MP fixed dome network camera featuring a 1/3″ Progressive Scan CMOS sensor, 2560 × 1440 resolution, 120 dB WDR, H.265+ compression, up to 30 m IR illumination, 2.8 mm or 4 mm fixed lens options, PoE, IP67 weather resistance and IK10 vandal resistance.
