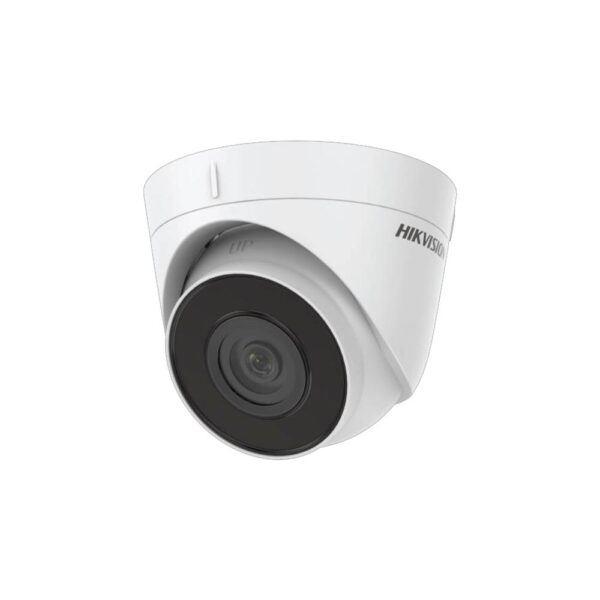

Specifications Hikvision DS-2CD1323G0-IUF

Features	Description
Product Type	2 MP Built-in Microphone Fixed Turret Network Camera
Image Sensor	1/2.7″ Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.01 Lux @ F2.0, AGC ON; B/W: 0 Lux with IR
Lens	Fixed Focal Lens, 2.8 / 4 mm
Aperture	F2.0
WDR	Digital WDR
IR Range	Up to 30 m
Video Compression	H.265+ / H.265 / H.264+ / H.264
Frame Rate	Up to 25 fps (50 Hz) / 30 fps (60 Hz) at 1920 × 1080
Audio	Built-in Microphone
Storage	MicroSD / SDHC / SDXC Card up to 256 GB
Network Interface	1 × RJ45 10/100 Mbps
PoE	IEEE 802.3af, Class 3
Power Supply	12 VDC ±25%
Power Consumption	Max. 5 W (12 VDC) / Max. 6.5 W (PoE)
Protection	IP67
Operating Temperature	-30°C ~ 60°C
Dimensions	Ø110 × 85.3 mm
Weight	Approx. 320 g

CAMERA & IMAGE
Image Sensor	1/2.7″ Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.01 Lux @ F2.0, AGC ON; B/W: 0 Lux with IR
Shutter Time	1/3 s ~ 1/100,000 s
Slow Shutter	Supported
Day & Night	IR Cut Filter
WDR	Digital WDR
Noise Reduction	3D DNR
Image Enhancement	BLC / 3D DNR / ROI
Angle Adjustment	Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°

LENS & IR
Lens Type	Fixed Focal Lens
Focal Length	2.8 mm / 4 mm
Aperture	F2.0
Lens Mount	M12
Horizontal FOV	112.1° (2.8 mm) / 90.2° (4 mm)
Vertical FOV	60.0° (2.8 mm) / 48.6° (4 mm)
Diagonal FOV	132.2° (2.8 mm) / 107.6° (4 mm)
IR Range	Up to 30 m
IR Wavelength	850 nm
Smart Supplement Light	Supported

VIDEO & AUDIO
Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression	H.265+ / H.265 / H.264+ / H.264
Video Bit Rate	32 Kbps ~ 8 Mbps
H.264 Profile	Baseline / Main / High Profile
H.265 Profile	Main Profile
Bit Rate Control	CBR / VBR
ROI	1 Fixed Region for Main Stream
Audio	Built-in Microphone
Audio Compression	G.711 μlaw / G.711 Alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC
Audio Sampling Rate	8 kHz / 16 kHz
Environment Noise Filtering	Supported

SMART FEATURES
Motion Detection	Supported
Video Tampering Detection	Supported
Region of Interest	Supported
General Function	Anti-Flicker / Heartbeat / Mirror / Password Protection / Privacy Mask / Watermark / IP Address Filter

NETWORK & STORAGE
Network Interface	1 × RJ45 10/100 Mbps Self-Adaptive Ethernet
PoE	IEEE 802.3af, Class 3
Network Protocols	TCP/IP / ICMP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / RTCP / NTP / UPnP / SMTP / IGMP / QoS / IPv6 / Bonjour / IPv4 / UDP / SSL/TLS
ONVIF	Profile S / Profile G
MicroSD	Up to 256 GB
Network Storage	NAS (NFS, SMB/CIFS)
Client	iVMS-4200 / Hik-Connect
Simultaneous Live View	Up to 6 Channels
User/Host	Up to 32 Users, 3 Levels: Administrator / Operator / User

INTERFACE
Ethernet	1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port
Audio	Built-in Microphone
Storage	1 × MicroSD Card Slot, up to 256 GB

POWER & GENERAL
Power Supply	12 VDC ±25%, 0.4 A; PoE IEEE 802.3af, Class 3
Power Consumption	Max. 5 W (12 VDC) / Max. 6.5 W (PoE)
Protection	IP67
Operating Temperature	-30°C ~ 60°C
Operating Humidity	95% or Less, Non-Condensing
Material	Metal & Plastic
Dimensions	Ø110 × 85.3 mm
Weight	Approx. 320 g

Note: The Hikvision DS-2CD1323G0-IUF is a 2 MP fixed turret network camera with a built-in microphone. It features 1920 × 1080 resolution, Digital WDR, H.265+ compression, up to 30 m IR illumination, 2.8 mm or 4 mm fixed lens options, MicroSD storage up to 256 GB, PoE and IP67 protection.
