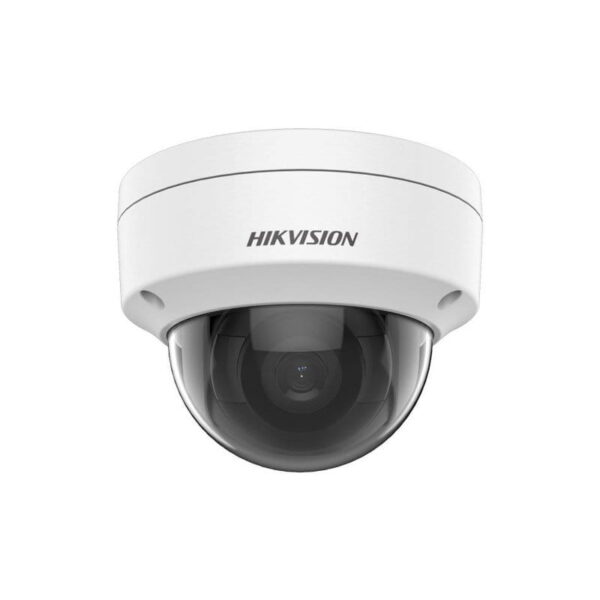

Specifications Hikvision DS-2CD2143G2-I
| Features | Description |
|---|---|
| Product Type | 4 MP AcuSense Fixed Dome Network Camera |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| Lens | Fixed Focal Lens, 2.8 / 4 mm |
| Aperture | F1.6 |
| WDR | 120 dB True WDR |
| IR Range | Up to 30 m |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Frame Rate | Up to 25 fps (50 Hz) / 30 fps (60 Hz) |
| AI Features | AcuSense Human and Vehicle Target Classification |
| Perimeter Protection | Line Crossing / Intrusion / Region Entrance / Region Exiting |
| Face Capture | Supported |
| Network Interface | 1 × RJ45 10/100 Mbps |
| PoE | IEEE 802.3af, Class 3 |
| Storage | NAS (NFS, SMB/CIFS), ANR |
| Power Supply | 12 VDC ±25% |
| Power Consumption | Max. 5.5 W (12 VDC) / Max. 7.5 W (PoE) |
| Protection | IP67 / IK10 |
| Operating Temperature | -30°C ~ 60°C |
| Dimensions | Ø121.4 × 92.2 mm |
| Weight | Approx. 570 g |
| CAMERA & IMAGE | |
|---|---|
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| Shutter Time | 1/3 s ~ 1/100,000 s |
| Day & Night | IR Cut Filter |
| WDR | 120 dB True WDR |
| Noise Reduction | 3D DNR |
| Image Enhancement | BLC / HLC / 3D DNR / Defog / ROI |
| Angle Adjustment | Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotate: 0° ~ 355° |
| LENS & IR | |
|---|---|
| Lens Type | Fixed Focal Lens |
| Focal Length | 2.8 mm / 4 mm |
| Aperture | F1.6 |
| Horizontal FOV | 103° (2.8 mm) / 84° (4 mm) |
| Vertical FOV | 55° (2.8 mm) / 45° (4 mm) |
| Diagonal FOV | 122° (2.8 mm) / 100° (4 mm) |
| IR Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Supported |
| VIDEO | |
|---|---|
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Video Bit Rate | 32 Kbps ~ 8 Mbps |
| H.264 Profile | Baseline / Main / High Profile |
| H.265 Profile | Main Profile |
| Bit Rate Control | CBR / VBR |
| ROI | 1 Fixed Region for Main Stream and Sub-Stream |
| SVC | Supported |
| AI & SMART FEATURES | |
|---|---|
| AcuSense | Human and Vehicle Target Classification |
| Perimeter Protection | Line Crossing / Intrusion / Region Entrance / Region Exiting |
| Face Capture | Supported |
| Motion Detection | Human and Vehicle Target Classification |
| Smart Events | Scene Change Detection / Video Tampering |
| NETWORK & STORAGE | |
|---|---|
| Network Interface | 1 × RJ45 10/100 Mbps Self-Adaptive Ethernet |
| PoE | IEEE 802.3af, Class 3 |
| Network Protocols | TCP/IP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTSP / NTP / SMTP / IGMP / 802.1X / IPv4 / IPv6 / SNMP / SSL/TLS |
| ONVIF | Profile S / Profile G / Profile T |
| Network Storage | NAS (NFS, SMB/CIFS) / ANR |
| Client | iVMS-4200 / Hik-Connect / Hik-Central |
| POWER & GENERAL | |
|---|---|
| Power Supply | 12 VDC ±25% |
| Power Consumption | Max. 5.5 W (12 VDC) / Max. 7.5 W (PoE) |
| Protection | IP67 / IK10 |
| Operating Temperature | -30°C ~ 60°C |
| Operating Humidity | 95% or Less, Non-Condensing |
| Material | Metal |
| Dimensions | Ø121.4 × 92.2 mm |
| Weight | Approx. 570 g |
Note: The Hikvision DS-2CD2143G2-I is a 4MP AcuSense fixed dome network camera featuring 2688 × 1520 resolution, 120 dB True WDR, H.265+ compression, up to 30 m IR illumination, human and vehicle target classification, perimeter protection, Face Capture, PoE, IP67 weather resistance and IK10 vandal resistance. It is available with 2.8 mm and 4 mm fixed lenses.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ่อมกล้องวงจรปิด พัทยา ชลบุรี
