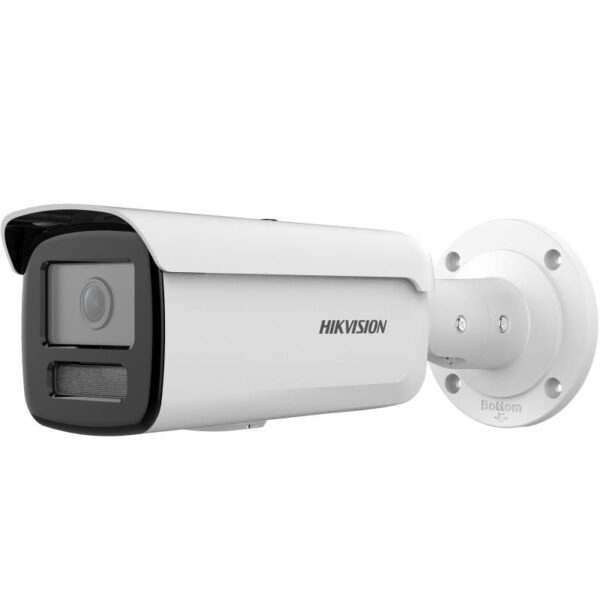

Specifications Hikvision DS-2CD2T26G2-2I4D
| Features | Description |
|---|---|
| Device Type | 2 MP AcuSense Fixed Bullet Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Lens | Fixed Lens, 4 mm |
| Day/Night | IR Cut Filter with Auto Switching |
| WDR | 120 dB True WDR |
| IR Range | Up to 60 m |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Smart Detection | Human and Vehicle Target Classification |
| Audio | 1-ch Audio Input, 1-ch Audio Output |
| Alarm | 1-ch Alarm Input, 1-ch Alarm Output |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet Port |
| Power Supply | 12 VDC / PoE (802.3af, Class 3) |
| Protection | IP67 Weather and Dust Resistant |
| Application | Outdoor Surveillance, Building Perimeter, Parking Areas, Entrances, Warehouses and General Security Monitoring |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
|---|---|
| Maximum Resolution | 1920 × 1080 |
| Frame Rate | 25 fps (50 Hz), 30 fps (60 Hz) |
| Minimum Illumination | Color: 0.001 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| Shutter | 1/3 s to 1/100,000 s |
| Lens | 4 mm Fixed Lens |
| Lens Mount | M12 |
| Field of View | Horizontal: 79°; Vertical: 43°; Diagonal: 94° |
| WDR | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264/MJPEG |
| Bit Rate | 32 Kbps to 8 Mbps |
| Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS |
| Smart Detection | Line Crossing, Intrusion Detection, Region Entrance, Region Exiting |
| Target Classification | Human and Vehicle |
| IR Range | Up to 60 m |
| Network Interface | 1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| Network Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, SNMP, IGMP, IPv6 and QoS |
| Storage | NAS (NFS, SMB/CIFS), ANR |
| Web Browser | IE10+, Chrome 57+, Firefox 52+, Safari 12+ |
| Power Supply | 12 VDC ±25%, PoE (802.3af, Class 3) |
| Power Consumption | Maximum 7.5 W |
| Material | Metal |
| Protection | IP67 |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Dimensions | Ø 105 × 244 mm |
| Weight | Approximately 1,100 g |
| SMART FEATURES | |
|---|---|
| AcuSense Technology | Deep Learning Algorithms Classify Human and Vehicle Targets to Improve Alarm Accuracy |
| DarkFighter Technology | Provides Excellent Low-Light Imaging Performance for Clearer Night-Time Surveillance |
| 120 dB WDR | Balances Bright and Dark Areas to Produce Clear Images in High-Contrast Lighting Conditions |
| Efficient H.265+ | Reduces Bandwidth and Storage Requirements While Maintaining Image Quality |
| Long-Range IR | Built-in Infrared Illumination Provides Night-Time Visibility up to 60 Meters |
| Weather Protection | IP67 Protection Provides Resistance Against Dust and Water for Outdoor Installation |
| GENERAL | |
|---|---|
| Camera Type | Fixed Bullet Network Camera |
| Installation Method | Wall, Ceiling and Outdoor Mounting |
| Lens Type | Fixed 4 mm Lens |
| Night Vision | IR Up to 60 m |
| Communication | 10/100 Mbps Ethernet |
| Power | 12 VDC or PoE 802.3af |
| Operating Temperature | -30°C to +60°C |
| Weather Protection | IP67 |
| Standards Compliance | ONVIF, ISAPI, SDK and Open Network Video Interface |
| Warranty | 3 Years |
Note: The Hikvision DS-2CD2T26G2-2I4D is a 2 MP AcuSense fixed bullet network camera featuring a 1/2.8″ Progressive Scan CMOS sensor, 4 mm fixed lens, DarkFighter low-light technology, 120 dB WDR and H.265+ compression. It provides human and vehicle target classification using deep learning algorithms and infrared night vision up to 60 meters.
Important: The Hikvision DS-2CD2T26G2-2I4D supports 1920 × 1080 resolution, 25/30 fps, 10/100 Mbps Ethernet and PoE 802.3af Class 3. Its IP67-rated housing is designed for outdoor surveillance applications, while AcuSense technology helps reduce false alarms by focusing detection on human and vehicle targets.
