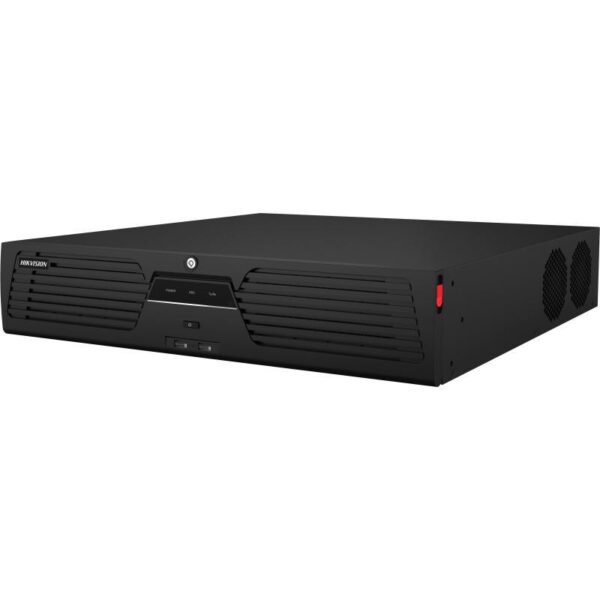

Hikvision DS-9632NI-M8

Hikvision DS-9632NI-M8

32-Channel 4K NVR

  • 32-channel network video recorder for IP cameras
  • Supports up to 32MP resolution recording
  • Supports H.265+/H.265/H.264+/H.264 video compression
  • 8 × SATA interfaces for high-capacity video storage
  • HDMI and VGA video outputs for high-definition monitoring
  • Supports advanced AI and video analytics functions
หมวดหมู่: , , ป้ายกำกับ:

Specifications Hikvision DS-9632NI-M8

Features Description
Product Type 32-Channel 8K Network Video Recorder (NVR)
Series M Series
IP Video Input 32 Channels
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 400 Mbps
Video Compression H.265+ / H.265 / H.264+ / H.264
Recording Resolution Up to 32 MP
Synchronous Playback 16 Channels
Decoding & Video Output Description
Decoding Capability 2-ch @ 32 MP / 2-ch @ 8 MP, or 10-ch @ 8 MP, or 20-ch @ 4 MP, or 32-ch @ 1080p
HDMI 1 Up to 8K (7680 × 4320) @ 30 Hz
HDMI 2 Up to 4K (3840 × 2160) @ 60 Hz
VGA Outputs 2 × VGA, up to 1920 × 1080 @ 60 Hz
CVBS Output 1 × BNC
Audio Output 2 × RCA
Two-Way Audio 1 × RCA
Storage Description
SATA 8 × SATA Interfaces
Maximum HDD Capacity Up to 14 TB per HDD*
eSATA 1 × eSATA
RAID RAID 0 / 1 / 5 / 6 / 10
Hot Spare N+M Hot Spare
Network & Interface Description
Network Ports 2 × 10/100/1000 Mbps RJ45
Network Protocols TCP/IP, IPv4/IPv6, DHCP, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTP, HTTPS
USB 2 × USB 2.0 Front + 2 × USB 3.0 Rear
RS-485 1 × RS-485
RS-232 1 × RS-232
Alarm I/O 16 Inputs / 9 Outputs
General Description
Power Supply 100–240 VAC, 50/60 Hz
Power Consumption Up to 50 W, Without HDD
Operating Temperature -10°C to 55°C
Operating Humidity 10%–90%, Non-Condensing
Chassis 2U Rack-Mount
Dimension 445 × 465 × 93 mm
Weight Up to 10 kg, Without HDD

Note: The Hikvision DS-9632NI-M8 is a 32-channel M Series 8K NVR supporting up to 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth. It provides 8 SATA interfaces, RAID 0/1/5/6/10, up to 8K HDMI output, dual Gigabit Ethernet ports, 16-channel synchronous playback, and advanced functions including VCA, ANPR, people counting, fisheye camera support, and POS integration.
