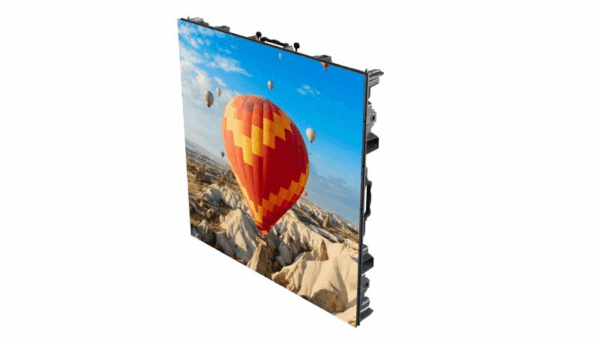

Specifications Hikvision DS-D4230CO-1BAB
| Features | Description |
|---|---|
| Product Type | P3 Outdoor Fixed LED Display Cabinet |
| Pixel Configuration | SMD Triad LED |
| Pixel Pitch | 3.076 mm |
| Modules Component | 3 × 6 |
| Cabinet Dimensions | 960 × 960 × 104 mm |
| Resolution | 312 × 312 Pixels |
| Display Area | 0.9216 m² |
| Pixel Density | 10625 Dots/m² |
| Cabinet Material | Die-casting Aluminum |
| Maintenance Method | Back Maintenance |
| Cabinet Flatness | 0.2 mm |
| Protection Level | Front IP65 / Rear IPX5 |
| Display Performance | Description |
|---|---|
| Brightness | 4500 nit (Factory Preset) / 5000 nit (Peak) |
| Color Temperature | 2000K–14000K Adjustable |
| Viewing Angle | Horizontal 160° / Vertical 140° |
| Contrast Ratio | ≥ 5000:1 |
| Color Uniformity | ≤ ±0.003 Cx, Cy |
| Brightness Uniformity | ≥ 97% |
| Driving Method | Constant Current Driving |
| Frame Frequency | 50/60 Hz |
| Refresh Rate | Up to 3840 Hz |
| Gray Level | 13–15 bit Adjustable |
| Key Material | Description |
|---|---|
| Lamp Encapsulation | 1415 (Copper) |
| Control System | DS-D42C04-H |
| Power | Description |
|---|---|
| Power Supply | 110–220 VAC ±15% |
| Maximum Power Consumption | ≤ 580 W/m² (4500 nit) |
| Average Power Consumption | ≤ 193 W/m² (4500 nit) |
| General | Description |
|---|---|
| Operating Temperature | -40°C to 60°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Storage Temperature | -40°C to 60°C |
| Storage Humidity | 10%–90% RH, Non-Condensing |
| Cabinet Weight | 32.95 kg |
| Package Dimensions | 1108 × 703 × 1194 mm |
| Lamp Lifespan | 100,000 Hours |
Note: The Hikvision DS-D4230CO-1BAB is a P3 outdoor fixed LED display cabinet featuring a 3.076 mm pixel pitch, 312 × 312 resolution, 4500 nit factory preset brightness, up to 3840 Hz refresh rate, and a die-casting aluminum cabinet. It is designed for outdoor permanent advertising and display applications.
