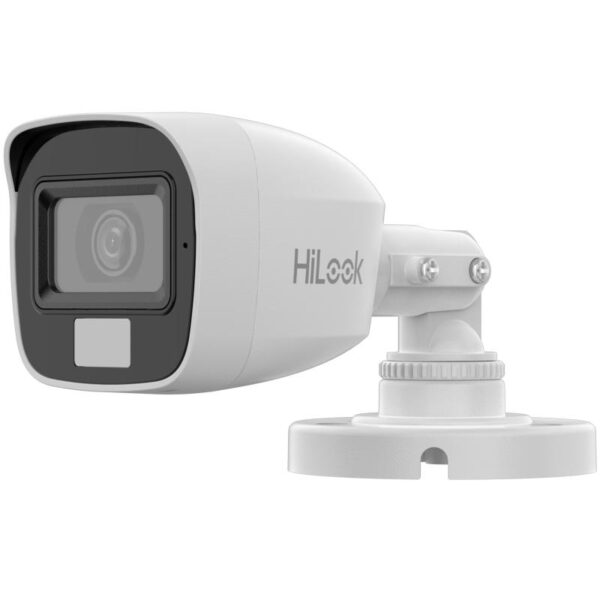

Specifications Hikvision HiLook THC-B157-LMS (2.8mm)
| Features | Description |
|---|---|
| Product Type | 3K Dual Light Audio Fixed Mini Bullet Camera |
| Image Sensor | 3K CMOS |
| Max. Resolution | 2960 × 1665 |
| Lens | 2.8 mm Fixed Focal Lens |
| Horizontal FOV | 104.9° |
| Vertical FOV | 67.3° |
| Diagonal FOV | 129.8° |
| Minimum Illumination | 0.01 Lux @ F2.0, AGC ON; 0 Lux with IR |
| Supplement Light | Smart / IR / White Light |
| IR Range | Up to 20 m |
| White Light Range | Up to 20 m |
| Audio | Built-in Microphone |
| Video Output | Switchable TVI / AHD / CVI / CVBS |
| Frame Rate | TVI: 3K @ 20 fps; 4 MP @ 25/30 fps; 1080p @ 25/30 fps |
| WDR | Digital WDR |
| Image Enhancement | DWDR / BLC / HLC / Global |
| Day/Night | Auto / Color / B&W |
| Protection | IP66 |
| Power Supply | 12 VDC ± 25% |
| Power Consumption | Max. 2.9 W |
| Operating Temperature | -40°C to +60°C |
| Material | Metal |
| Weight | Approx. 300 g |
| CAMERA & LENS | |
|---|---|
| Image Sensor | 3K CMOS |
| Resolution | 2960 × 1665 |
| Lens | 2.8 mm Fixed Focal Lens |
| Lens Mount | M12 |
| Horizontal FOV | 104.9° |
| Vertical FOV | 67.3° |
| Diagonal FOV | 129.8° |
| Day & Night | ICR |
| ILLUMINATION & IMAGE | |
|---|---|
| Minimum Illumination | 0.01 Lux @ F2.0, AGC ON; 0 Lux with IR |
| Supplement Light | Smart / IR / White Light |
| IR Range | Up to 20 m |
| White Light Range | Up to 20 m |
| WDR | Digital WDR |
| Image Enhancement | DWDR / BLC / HLC / Global |
| White Balance | Auto / Manual |
| AGC | Supported |
| VIDEO & AUDIO | |
|---|---|
| Video Output | Switchable TVI / AHD / CVI / CVBS |
| TVI | 3K @ 20 fps; 4 MP @ 25/30 fps; 1080p @ 25/30 fps |
| AHD | 5 MP @ 20 fps; 4 MP @ 25/30 fps |
| CVI | 4 MP @ 25/30 fps |
| CVBS | PAL / NTSC |
| Microphone | Built-in Microphone |
| Audio Transmission | Audio over Coaxial Cable |
| GENERAL | |
|---|---|
| Protection | IP66 |
| Material | Metal |
| Power Supply | 12 VDC ± 25% |
| Power Consumption | Max. 2.9 W |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | 90% or less, Non-Condensing |
| Communication | HIKVISION-C |
| Dimensions | 161.22 × 57.97 × 61.96 mm |
| Weight | Approx. 300 g |
Note: The Hikvision HiLook THC-B157-LMS (2.8mm) is a 3K Dual Light Audio Fixed Mini Bullet Camera featuring a 3K CMOS sensor with 2960 × 1665 resolution, 2.8 mm fixed lens, 104.9° horizontal field of view, Smart-Hybrid Light with up to 20 m IR and white light range, built-in microphone with audio over coaxial cable, Digital WDR, switchable TVI/AHD/CVI/CVBS output, and IP66 weather and dust resistance.
