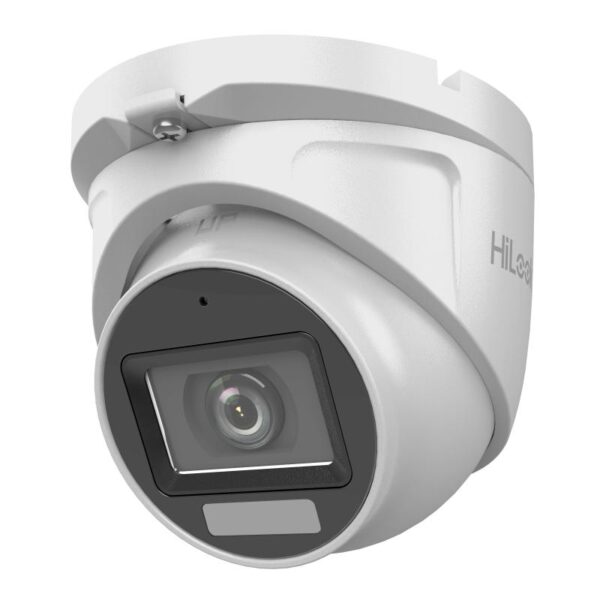

Specifications Hikvision HiLook THC-T127-LMS
| Features | Description |
|---|---|
| Device Type | 2 MP Dual Light Audio Fixed Turret Camera (Turbo HD Analog Camera) |
| Brand / Series | HiLook by Hikvision / 1080P Series Solution |
| Image Sensor | 2 MP CMOS Sensor (Resolution: 1920 x 1080) |
| Lens Options | Fixed Focal Lens: 2.8 mm or 3.6 mm |
| Field of View (FOV) | 2.8 mm: Horizontal 100°, Vertical 55°, Diagonal 116° 3.6 mm: Horizontal 80°, Vertical 43°, Diagonal 95° |
| Illuminator Type | Smart-Hybrid Light (Supports IR, White Light, and Smart Modes) |
| Illumination Range | Up to 30 m IR Distance & Up to 20 m White Light Distance for Bright Night Imaging |
| Audio Features | Built-in Microphone with High-Quality Audio Transmission over Coaxial Cable (Audio over Coaxial) |
| Video Output | 4-in-1 Switchable Output (TVI / AHD / CVI / CVBS) |
| Ingress Protection | Water and Dust Resistant (IP66 Rated Metal Casing) |
| Frame Rate Performance | TVI: 1080p @25/30 fps AHD: 1080p @25/30 fps CVI: 1080p @25/30 fps CVBS: PAL/NTSC |
|---|---|
| Min. Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Image Settings & Enhancement | Digital WDR, BLC, HLC, Global, Brightness, Sharpness, Smart IR |
| Power Supply & Consumption | 12 VDC ± 25%, Max. 3.2 W |
| SMART FEATURES | |
|---|---|
| Smart-Hybrid Light Technology | Flexibly switches between Infrared mode (discreet night vision) and White Light mode (full-color imaging triggered upon motion/event) to optimize nighttime security |
| High-Resolution 1080P Imaging | Delivers sharp, detailed surveillance footage at 1920 x 1080 resolution |
| Coaxial Audio Integration | Transmits both crisp multi-channel audio (via built-in mic) and high-definition video over a single coaxial cable, simplifying wiring layout |
| Multi-Standard Compatibility | One-port switchable layout supports all major analog formats (TVI, AHD, CVI, and CVBS), ensuring seamless integration with various DVR systems |
| GENERAL | |
|---|---|
| Dimensions & Weight | 82.65 mm x 69.16 mm (~ 253 g) |
| Operating Conditions | -40°C to 60°C (-40°F to 140°F), Humidity 90% or less (non-condensing) |
| Warranty | Standard Manufacturer Warranty (Typically 3 Years through Authorized Distributors) |
Note: The Hikvision HiLook THC-T127-LMS is a cost-effective 2 MP dual-light fixed turret analog camera equipped with Smart-Hybrid illumination and a built-in microphone. Designed for high-clarity outdoor or indoor surveillance, it combines robust IP66 metal housing with versatile 4-in-1 signal switching.
Important: Operating on standard 12VDC power, this camera utilizes Hikvision-C protocol communication to allow OSD menu configuration and light mode management directly through compatible Turbo HD DVRs over the coaxial cable.
