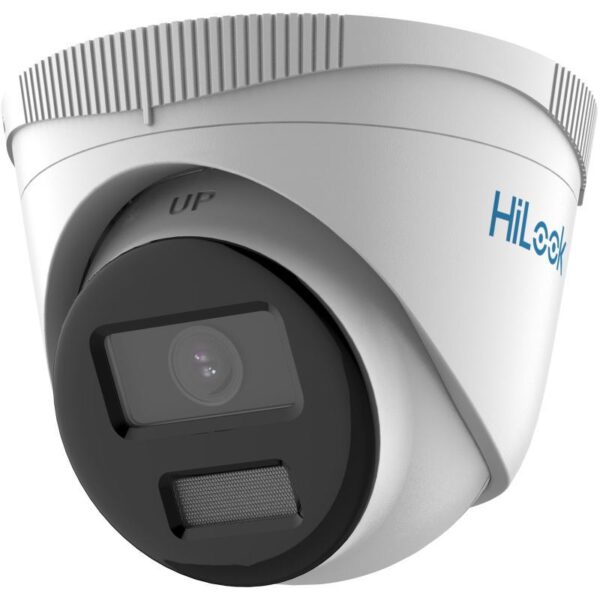

HiLook IPC-T249H Features
| feature |
details |
| Sensor / Image Sensor |
1/3″ Progressive Scan CMOS |
| Lens / Aperture |
F1.0 Super Aperture, Focal Length: 2.8 mm / 4 mm |
| View Angle |
2.8 mm: Wide face, 96° angle / 4 mm: Narrow face, emphasizing a 75° angle. |
| Resolution / Frame Rate |
4MP (2560 × 1440) at 20 fps / 1080P at 25 fps |
| Night Vision / IR |
Smart Hybrid Light (IR + White Light) with a maximum range of 30 meters. |
| Recording / Storage |
Recorded via NVR/NAS network system. |
| Audio |
Built-in microphone for recording audio along with video (LU code only). |
| Intelligent detection feature |
Motion Detection, Human and Vehicle Detection |
| Network / Connectivity |
1 RJ45 10M/100M Ethernet port (PoE supported). Wi-Fi is not supported. |
| Energy / Power supply |
12 VDC ± 25% or PoE (802.3af, class 3) |
| Size / Dimensions |
Approximately Ø 109.9 mm × 89.3 mm |
| Operating temperature / range |
-30°C to 60°C (IP67 waterproof and dustproof standard) |
| Energy consumption (maximum) |
12 VDC, max. 5.0 W/PoE, max. 6.5 W |
Describe the details of the HiLook IPC-T249H.
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Lens |
F/NO: 1.0; Focal Length: 2.8mm / 4mm |
| Minimum Illumination |
Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with Light |
| Night Vision |
Smart Hybrid Light (IR / White Light) up to 30 m |
| Interface & Button |
1× RJ45 10M/100M Self-Adaptive Ethernet Port |
| Protection Rating |
IP67 Weatherproof Waterproof |
| Resolution |
4MP (2560 x 1440) |
|
VIDEO & AUDIO
|
| Maximum Resolution |
4MP (2560 x 1440 px) |
| Frame Rate |
20 fps @ 4MP / 25 fps @ 1080p |
| Digital Zoom |
None |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Live View |
Yes |
| Image Enhancement |
120 dB WDR, 3D DNR, BLC, HLC, AGC |
| Audio Input & Output |
Built-in Microphone (Only -LU model) |
| Audio Communication |
1-Way Audio (Environment Sound Recording) |
|
STORAGE
|
| Local Storage |
None (Records via Network Video Recorder – NVR) |
| Network Storage |
NAS (Network Attached Storage), Central Management Software (iVMS-4200) |
|
DETECTION and NOTIFICATIONS
|
| AI Detection |
Motion Detection (Human and Vehicle targets classification) |
| Activity Zones |
Yes (Region of Interest – ROI) |
| Output Notification |
App Linkage Push Notification via HiLookVision / Hik-Connect |
|
NETWORK
|
| Network Connectivity |
Connect via RJ45 Ethernet Cable |
| Wired Connectivity |
1x RJ45 10M/100M Self-Adaptive Ethernet Port |
| Network Security |
Password Protection, HTTPS Encryption, IP Address Filter |
| RTSP |
Yes |
| ONVIF |
Yes (Profile S, Profile G, Profile T) |
|
POWER
|
| Power Source |
12 VDC Adapter or PoE (Power over Ethernet) |
| PoE Specification |
PoE (802.3af, Class 3) |
| Power Consumption |
12 VDC: Max. 5.0 W / PoE: Max. 6.5 W |
|
HARDWARE
|
| Material |
Metal & Plastic |
| Dimensions (W x D x H) |
Ø 109.9 mm × 89.3 mm (Ø 4.3″ × 3.5″) |
| Weight |
Approx. 340 g (0.7 lb.) |
|
GENERAL
|
| Smart Integration |
HiLookVision, Hik-Connect, Web Browser Management |
| Weather Resistance |
IP67 (Water and Dust Resistant) |
| Mounting Options |
Wall Mounted, Ceiling Mounted (commonly installed under the ceiling) |
| Operating Temperature |
-30 °C to 60 °C (-22 °F to 140 °F) |
| Operating Humidity |
95% or less (non-condensing) |
| Package Content |
HiLook IPC-T249H Camera, Quick Start Guide, Waterproof Accessories, Mounting Screws & Anchors |
Distributed by Focus System & Design Co., Ltd. , CCTV installation and repair services in Pattaya, Chonburi .
