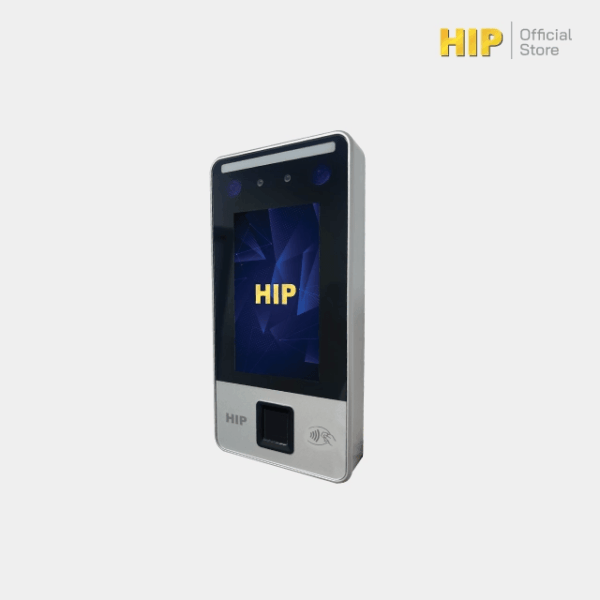

Specifications HIP CiF93S-VL
| Features | Description |
|---|---|
| Product Type | Visible Light Face Recognition Time Attendance & Access Control |
| Maximum Users | 2,000 Users |
| Face Capacity | 2,000 Faces |
| Fingerprint Capacity | 10,000 Fingerprints |
| Card Capacity | 2,000 Cards (MIFARE 13.56 MHz) |
| Password Capacity | 2,000 Passwords |
| Record Capacity | 200,000 Records |
| Display | 4.3″ IPS Touch Screen |
| Resolution | 272 × 480 Pixels |
| Identification Time | < 1 Second |
| Recognition Distance | 0.5–2 m |
| Authentication | Face / Fingerprint / Card / Password |
| Communication | TCP/IP, Wi-Fi, USB, Wiegand 26/34 |
| Access Control | Relay Output, Exit Button, Door Sensor |
| Anti-Spoofing | Live Detection |
| Mask Detection | Supported |
| Waterproof | IP65 |
| Tamper Alarm | Supported |
| Operating Temperature | -10°C to +60°C |
| Operating Humidity | 20%–80% RH |
| Power Supply | DC 12V / 2A |
| Dimensions | 185 × 89 × 24 mm |
| Language | English / Thai |
| Software | HIP TIME 4.0 / HIP Premium Time Series 8 / HIP ezTIME |
| IDENTIFICATION | |
|---|---|
| Face Recognition | Up to 2,000 Faces |
| Fingerprint | Up to 10,000 Fingerprints |
| Card | Up to 2,000 MIFARE Cards, 13.56 MHz |
| Password | Up to 2,000 Passwords |
| Recognition Distance | 0.5–2 m |
| Live Detection Distance | 0.5–1 m |
| Identification Time | Less than 1 second |
| Authentication Mode | 1:1 / 1:N |
| ACCESS CONTROL | |
|---|---|
| Relay Output | Supported |
| Exit Button | Supported |
| Door Sensor | Supported |
| Tamper Alarm | Supported |
| Wiegand | Wiegand 26/34 Output |
| COMMUNICATION | |
|---|---|
| Network | TCP/IP |
| Wireless | Wi-Fi |
| USB | USB Link / U-Disk Download |
| Wiegand | Wiegand 26/34 Output |
| GENERAL | |
|---|---|
| Display | 4.3″ IPS Touch Screen |
| Resolution | 272 × 480 |
| Operating Temperature | -10°C to +60°C |
| Operating Humidity | 20%–80% RH |
| Waterproof | IP65 |
| Power | DC 12V / 2A |
| Dimensions | 185 × 89 × 24 mm |
| Language | English / Thai |
Note: The HIP CiF93S-VL is a Visible Light Facial Recognition Time Attendance and Access Control device supporting up to 2,000 users, 2,000 faces, 10,000 fingerprints, 2,000 MIFARE cards, 2,000 passwords, and 200,000 attendance records. It features a 4.3-inch IPS touch screen, face recognition in less than 1 second, Live Detection, mask detection, IP65 protection, TCP/IP, Wi-Fi, USB, Wiegand, relay output, door sensor, exit button, and tamper alarm.
