| Features |
Description |
| Device Type |
Standalone RFID Time Attendance & Access Control Terminal |
| Authentication |
RFID Card, Password, Card + Password |
| Card Capacity |
50,000 Cards |
| Password Capacity |
50,000 Passwords |
| Record Capacity |
160,000 Records |
| Verification Speed |
≤ 0.5 Second |
| Display |
2.4-inch TFT Graphic Interface |
| Communication |
TCP/IP, USB Link, U-Disk, Wiegand In/Out, RS485 |
| Application |
Office, Factory, School, Door Access Control |
| Power Supply |
DC 12V / 1A |
| Device Type |
Standalone Card Time Attendance & Access Control |
| Card Capacity |
50,000 RFID Cards |
| Password Capacity |
50,000 Passwords |
| Record Capacity |
160,000 Records |
| Display |
2.4-inch TFT Graphic Interface (320 × 240) |
| Card Type |
125kHz ID Card (13.56MHz MIFARE Optional) |
| Authentication Mode |
1:N Identification |
| AUTHENTICATION FEATURES |
| Verification Methods |
Card, Password, Card + Password |
| Recognition Speed |
≤ 0.5 Second |
| Access Control |
Standalone Door Access Control |
| Additional Functions |
Anti Pass-back, Tamper Alarm, Door Bell, Schedule Bell |
| COMMUNICATION |
| Network |
TCP/IP |
| Interfaces |
USB Link, U-Disk, Wiegand In/Out, RS485 |
| Software |
HIP TIME 4.0, HIP Premium Time Series 8, HIP ezTIME |
| Optional |
Wi-Fi Module (Optional) |
| GENERAL |
| Power Supply |
DC 12V / 1A |
| Operating Temperature |
-10°C to 60°C |
| Operating Humidity |
20% to 80% RH |
| Language |
Thai / English |
| Battery Backup |
Not Supported |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.

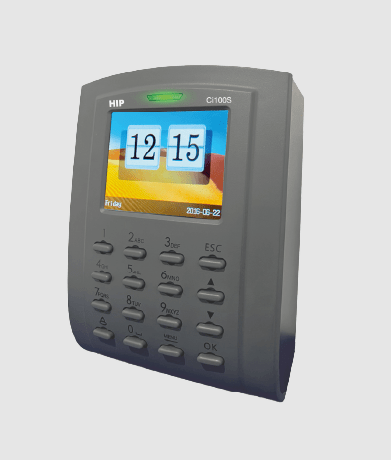

Important: The HIP Ci100S is a standalone RFID time attendance and access control terminal supporting up to 50,000 cards and 160,000 records. It features TCP/IP, USB, Wiegand, and RS485 connectivity, making it ideal for offices, factories, and secure door access systems.
