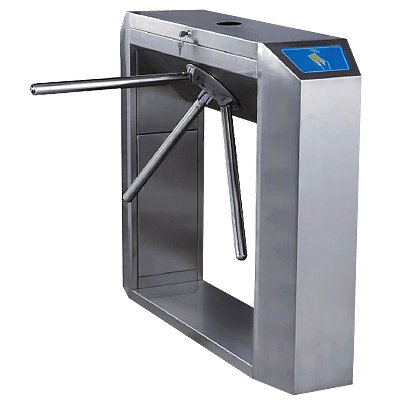

HIP ระบบประตูโรงงาน Turnstile รุ่น CMC301
| Model : | CMC301 |
| Power Supply : | AC220V+-10V, 50Hz/AC110+-10V,60Hz |
| Temperature : | -15 to 60 degrees |
| Humidity : | <95%, without concretion |
| Passage Width : | <=600mm |
| Passing Speed : | 40 persons/min (IC Card) |
| Power Consumption : | 100W |
| input interface : | +12V electrical singnal or impulse singal width more than 100ms, drive current>10mA |
| Communication Interface : | RS485 (Distance : <=1200) |
| Material : | Housing – 304 stainess steel arm – stainless steel |
| Dimenension : | 1200x280x990 ,mm Arm Length : 500mm |
| Working Environment : | Indoors or outdoors with shed |
