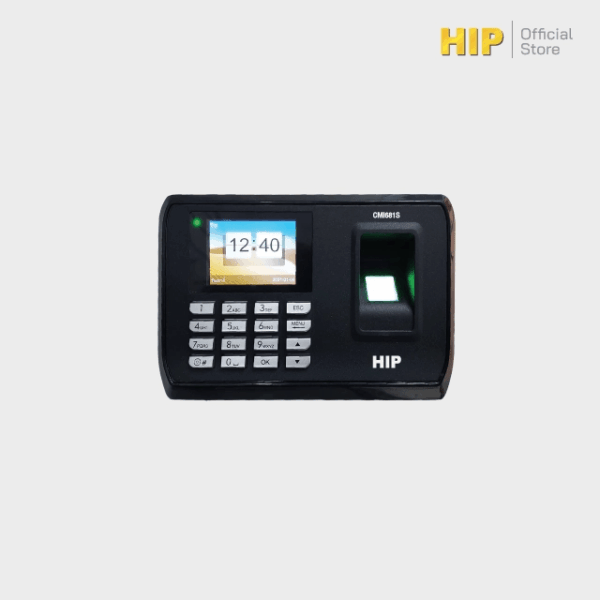

Specifications HIP CMi681S
| Features | Description |
|---|---|
| Product Type | Standalone Fingerprint Time Attendance & Access Control |
| Maximum Users | 6,000 Users |
| Fingerprint Capacity | 6,000 Fingerprints |
| Card Capacity | 6,000 ID Cards |
| Password Capacity | 6,000 Passwords |
| Record Capacity | 160,000 Records |
| Face Recognition | Not Supported |
| Identification Time | ≤ 0.5 sec |
| Authentication Mode | 1:N |
| Identification Mode | Fingerprint / Card / Password / Fingerprint + Card / Fingerprint + Password / Fingerprint + Card + Password |
| Display & Communication | Description |
|---|---|
| Display | 2.4″ TFT Graphic Interface |
| Resolution | 320 × 240 |
| Communication | TCP/IP, USB Link, U Disk Download |
| Card Type | ID Card |
| Optional Card | MIFARE Card 13.56 MHz |
| Language | English / Thai |
| Functions | Description |
|---|---|
| Access Control | Supported via Power Supply / Power Box |
| Schedule Bell | Built-in Schedule Bell |
| Battery Backup | Yes, up to 2 hours |
| Software | HIP TIME 4.0 / HIP Premium Time Series 8 / HIP ezTIME |
| General | Description |
|---|---|
| Power Supply | DC 12 V / 1 A |
| Operating Temperature | -10°C to +60°C |
| Operating Humidity | 20% to 80% RH |
| Dimension | 170 × 120 × 35 mm |
Note: The HIP CMi681S is a standalone fingerprint time attendance and access control terminal supporting up to 6,000 users, 6,000 fingerprints, 6,000 ID cards, and 160,000 attendance records. It supports fingerprint, card, and password authentication, with TCP/IP and USB connectivity for data management.
