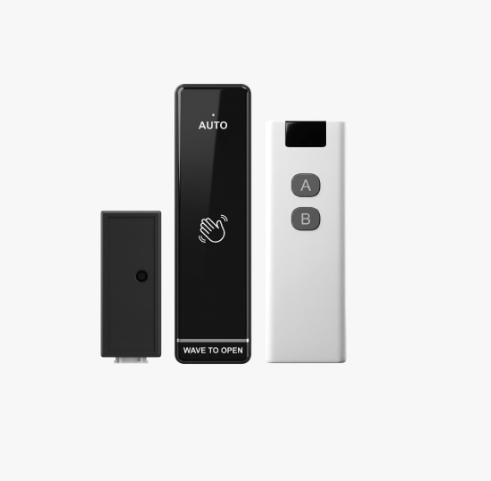

Wireless No Touch Exit Switch

  • Wireless no-touch exit switch with 433.92MHz transmission
  • 30–50m wireless range with no additional wiring required
  • Supports Access Control and automatic door systems
  • Supports Jog Mode and Interlock functions
  • Glass touchless panel tested for up to 1 million operations
  • Ideal for hospitals, offices, hotels and commercial buildings
หมวดหมู่: ป้ายกำกับ:

Specifications HIP Exit Switch No Touch EX03W

Features Description
Device Type Wireless No Touch Exit Switch
Operating Mode Infrared No Touch Sensor
Wireless Frequency 433.92MHz
Wireless Range 30–50m (Open Area)
Battery CR2032 × 2
Durability 1,000,000 Operations
Compatible Systems Access Control, Automatic Door, Electric Lock
Receiver RE60W (Supports NO/NC Output)
Installation Wireless Installation, No Additional Wiring Required
Application Hospital, Office, Hotel, Restaurant and Commercial Buildings
Panel Material Glass
Power Source CR2032 Battery × 2
Transmission Frequency 433.92MHz
Transmission Distance 30–50m
Dimensions 36 × 138 × 10mm
Operating Temperature -30°C to 60°C
Humidity 10%–90% RH
SMART FEATURES
No Touch Sensor Wave-to-Open Design Reduces Physical Contact and Improves Hygiene
Wireless Design Easy Installation Without Additional Wiring
Long Distance Control Wireless Communication up to 30–50 Meters
Access Control Support Compatible with Access Control Systems and Automatic Doors
Receiver Functions Supports Jog Mode and Interlock Functions
Receiver Capacity Supports up to 60 Wireless Switches or 30 Remote Controls
GENERAL
Receiver Power Input 12–24VDC
Receiver Output NO / NC Relay Output
Delay Time 0–30 Seconds (Receiver)
Receiver Material Stainless Steel 304
Warranty According to HIP Warranty Policy

Note: The EX03W wireless no-touch exit switch operates with the RE60W receiver. The receiver is powered by 12–24VDC and provides NO/NC relay outputs for access control systems. Wireless transmission distance depends on the installation environment.

Important: The HIP Exit Switch No Touch EX03W is a wireless infrared exit switch operating at 433.92MHz with a transmission range of up to 30–50 meters. It features touch-free hand detection, glass panel construction, easy cable-free installation, supports access control and automatic door systems, offers up to 1,000,000 operation durability, and works with the RE60W receiver supporting NO/NC output, Jog Mode, and Interlock functions.

จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
