Specifications Hikvision HVS-2CD1001-I4
| Features |
Description |
| Product Type |
1MP IR Fixed Bullet Network Camera |
| Image Sensor |
1/4″ Progressive Scan CMOS |
| Maximum Resolution |
1280 × 720 |
| Lens |
4mm Fixed Lens |
| Minimum Illumination |
0.01 Lux @ F1.2, 0 Lux with IR |
| WDR |
Digital WDR |
| IR Distance |
Up to 30m |
| Video Compression |
H.264 / MJPEG |
| Video Streams |
Dual Stream |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/4″ Progressive Scan CMOS |
| Maximum Resolution |
1280 × 720 |
| Maximum Frame Rate |
25fps @ 50Hz / 30fps @ 60Hz |
| Minimum Illumination |
Color: 0.01 Lux @ F1.2, AGC ON
0 Lux with IR |
| Shutter Speed |
1/3s to 1/100,000s |
| Day & Night |
IR Cut Filter with Auto Switch |
| Noise Reduction |
3D DNR |
| Wide Dynamic Range |
Digital WDR |
| Backlight Compensation |
BLC |
| Slow Shutter |
Supported |
| LENS |
| Lens Type |
Fixed |
| Focal Length |
4mm |
| Aperture |
F2.2 |
| Lens Mount |
M12 |
| Horizontal Field of View |
70° |
| Adjustment |
Pan: 0°–360°, Tilt: -90°–90°, Rotate: 0°–360° |
| INFRARED |
| IR Technology |
IR Cut Filter with Auto Switch |
| IR Distance |
Up to 30m |
| IR Control |
Automatic |
| VIDEO |
| Video Compression |
H.264 / MJPEG |
| Video Streams |
Dual Stream |
| Main Stream |
1280 × 720 @ 25/30fps |
| Sub Stream |
640 × 480 / 352 × 288 / 320 × 240 @ 25/30fps |
| Bit Rate |
32Kbps–2Mbps |
| Bit Rate Control |
CBR / VBR |
| H.264 Profile |
Baseline Profile / Main Profile |
| SMART FEATURES |
| Motion Detection |
Supported |
| Video Tampering Detection |
Supported |
| Network Disconnected Detection |
Supported |
| IP Address Conflict Detection |
Supported |
| Region of Interest |
1 Fixed Region |
| Privacy Mask |
Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100Mbps Self-Adaptive Ethernet Port |
| Network Protocols |
TCP/IP / ICMP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / RTCP / NTP / UPnP / SMTP / IGMP / 802.1X / QoS / IPv6 / Bonjour |
| Interoperability |
ONVIF Profile S / Profile G / PSIA / CGI / ISAPI |
| Client |
Hik-Connect / iVMS-4200 / Web Browser |
| Security |
Password Protection / HTTPS / IP Address Filtering |
| STORAGE |
| Network Storage |
NAS |
| Recording |
Continuous / Event Recording |
| POWER |
| Power Supply |
12VDC ±25% / PoE |
| PoE Standard |
IEEE 802.3af |
| Power Consumption |
Maximum 4W / 5W with PoE |
| PROTECTION |
| Protection Rating |
IP67 |
| Operating Temperature |
-30°C to +60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| POWER & GENERAL |
| Power Supply |
12VDC / PoE (802.3af) |
| Maximum Power Consumption |
5W |
| Dimensions |
69.1 × 66 × 172.7mm |
| Net Weight |
Approx. 500g |
| Protection Rating |
IP67 |

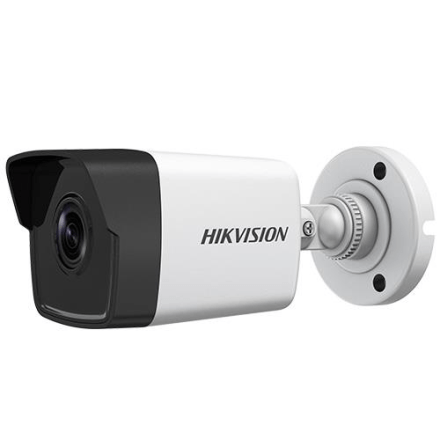

Note: The Hikvision HVS-2CD1001-I4 is a 1MP IR Fixed Bullet Network Camera featuring a 1/4″ Progressive Scan CMOS sensor, 1280 × 720 resolution, 4mm fixed lens, Digital WDR and 3D DNR. It provides up to 30m IR illumination and supports H.264/MJPEG compression, dual video streams, motion detection, PoE and IP67 protection.
Important: The Hikvision HVS-2CD1001-I4 is a 1MP Fixed Bullet Network Camera with a 4mm fixed lens and 70° horizontal field of view. It supports Digital WDR, 3D DNR, H.264/MJPEG, IEEE 802.3af PoE and IP67 protection, with IR illumination up to 30m.
