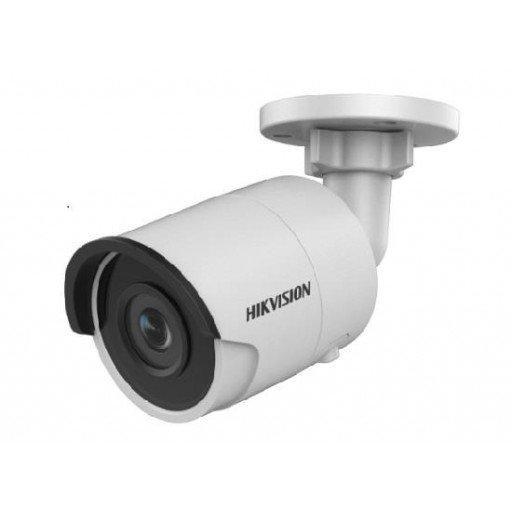

Specifications Hikvision HVS-2CD2025FWD-I28
| Features | Description |
|---|---|
| Product Type | 2MP Powered-by-DarkFighter Fixed Mini Bullet Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Lens | 2.8mm Fixed Lens |
| Minimum Illumination | 0.005 Lux @ F1.2, 0 Lux with IR |
| WDR | 120dB |
| IR Distance | Up to 30m |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Storage | MicroSD/SDHC/SDXC up to 128GB |
| Protection | IP67 |
| CAMERA | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Maximum Frame Rate | 25fps @ 50Hz / 30fps @ 60Hz |
| Minimum Illumination | Color: 0.005 Lux @ F1.2, AGC ON; 0 Lux with IR |
| Shutter Speed | 1/3s to 1/100,000s |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter with Auto Switch |
| Noise Reduction | 3D DNR |
| Backlight Compensation | BLC / HLC |
| Slow Shutter | Supported |
| LENS | |
|---|---|
| Lens Type | Fixed |
| Focal Length | 2.8mm |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Horizontal Field of View | 108° |
| Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
| INFRARED | |
|---|---|
| IR Technology | IR |
| IR Distance | Up to 30m |
| IR Control | Automatic |
| VIDEO | |
|---|---|
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Video Streams | 3 Streams |
| Main Stream | 1920 × 1080 @ 25/30fps |
| Sub Stream | 640 × 480 / 640 × 360 / 320 × 240 @ 25/30fps |
| Third Stream | 1920 × 1080 / 1280 × 720 / 640 × 360 / 352 × 288 @ 25/30fps |
| Bit Rate | 32Kbps–16Mbps |
| Bit Rate Control | CBR / VBR |
| H.264+ | Supported |
| H.265+ | Supported |
| SMART FEATURES | |
|---|---|
| Line Crossing Detection | Supported |
| Intrusion Detection | Supported |
| Unattended Baggage Detection | Supported |
| Object Removal Detection | Supported |
| Face Detection | Supported |
| Motion Detection | Supported |
| Video Tampering Detection | Supported |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100Mbps Self-Adaptive Ethernet Port |
| Network Protocols | TCP/IP / UDP / ICMP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / RTCP / PPPoE / NTP / UPnP / SMTP / SNMP / IGMP / 802.1X / QoS / IPv6 / Bonjour |
| Interoperability | ONVIF Profile S / Profile G / PSIA / CGI / ISAPI |
| Simultaneous Live View | Up to 6 Channels |
| User Capacity | Up to 32 Users |
| Client | iVMS-4200 / Hik-Connect |
| Security | HTTPS / IP Address Filtering / User Authentication |
| STORAGE | |
|---|---|
| Memory Card | MicroSD / SDHC / SDXC up to 128GB |
| Network Storage | NAS (NFS / SMB/CIFS) |
| ANR | Supported |
| Recording | Continuous / Event Recording |
| POWER | |
|---|---|
| Power Supply | 12VDC ±25% / PoE |
| PoE Standard | IEEE 802.3af, Class 3 |
| 12VDC Power Consumption | Maximum 5W |
| PoE Power Consumption | Maximum 6.5W |
| PROTECTION | |
|---|---|
| Protection Rating | IP67 |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| POWER & GENERAL | |
|---|---|
| Power Supply | 12VDC / PoE |
| Maximum Power Consumption | 6.5W |
| Dimensions | Ø70 × 155.03mm |
| Net Weight | Approx. 410g |
| Protection Rating | IP67 |
Note: The Hikvision HVS-2CD2025FWD-I28 is a 2MP Powered-by-DarkFighter Fixed Mini Bullet Network Camera featuring a 1/2.8″ Progressive Scan CMOS sensor, 1920 × 1080 resolution, 2.8mm fixed lens, 120dB WDR and IR illumination up to 30m. It supports H.265+/H.265/H.264+/H.264 compression, three video streams, line crossing, intrusion, face detection, MicroSD storage up to 128GB and PoE connectivity.
Important: The Hikvision HVS-2CD2025FWD-I28 is a 2MP Fixed Mini Bullet Network Camera with a 2.8mm fixed lens, 108° horizontal field of view, 120dB WDR and IR up to 30m. It supports H.265+, H.265, H.264+ and H.264, MicroSD storage up to 128GB, IEEE 802.3af PoE and IP67 protection.
