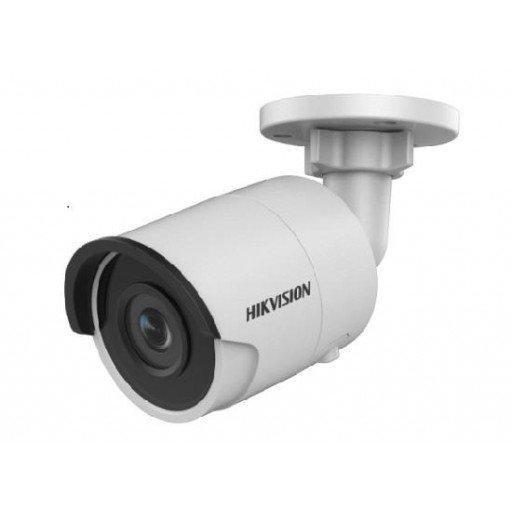

Specifications Hikvision HVS-2CD2025FWD-I4

Features	Description
Product Type	2MP Powered-by-DarkFighter Fixed Mini Bullet Network Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Maximum Resolution	1920 × 1080
Lens	4mm Fixed Lens
Minimum Illumination	0.005 Lux @ F1.2, 0 Lux with IR
WDR	120dB
IR Distance	Up to 30m
Video Compression	H.265+ / H.265 / H.264+ / H.264
Storage	MicroSD/SDHC/SDXC up to 128GB
Protection	IP67

CAMERA
Image Sensor	1/2.8″ Progressive Scan CMOS
Maximum Resolution	1920 × 1080
Maximum Frame Rate	25fps @ 50Hz / 30fps @ 60Hz
Minimum Illumination	Color: 0.005 Lux @ F1.2, AGC ON; 0 Lux with IR
Shutter Speed	1/3s to 1/100,000s
Wide Dynamic Range	120dB
Day & Night	IR Cut Filter with Auto Switch
Noise Reduction	3D DNR
Backlight Compensation	BLC / HLC
Slow Shutter	Supported

LENS
Lens Type	Fixed
Focal Length	4mm
Aperture	F1.6
Lens Mount	M12
Horizontal Field of View	86.4°
Adjustment	Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°

INFRARED
IR Technology	IR
IR Distance	Up to 30m
IR Control	Automatic

VIDEO
Video Compression	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Video Streams	3 Streams
Main Stream	1920 × 1080 @ 25/30fps
Sub Stream	640 × 480 / 640 × 360 / 320 × 240 @ 25/30fps
Third Stream	1920 × 1080 / 1280 × 720 / 640 × 360 / 352 × 288 @ 25/30fps
Bit Rate	32Kbps–16Mbps
Bit Rate Control	CBR / VBR
H.264+	Supported
H.265+	Supported

SMART FEATURES
Line Crossing Detection	Supported
Intrusion Detection	Supported
Unattended Baggage Detection	Supported
Object Removal Detection	Supported
Face Detection	Supported
Motion Detection	Supported
Video Tampering Detection	Supported

NETWORK
Network Interface	1 × RJ45 10/100Mbps Self-Adaptive Ethernet Port
Network Protocols	TCP/IP / UDP / ICMP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / RTCP / PPPoE / NTP / UPnP / SMTP / SNMP / IGMP / 802.1X / QoS / IPv6 / Bonjour / SSL/TLS
Interoperability	ONVIF Profile S / Profile G / Profile T / ISAPI
Simultaneous Live View	Up to 6 Channels
User Capacity	Up to 32 Users
Client	iVMS-4200 / Hik-Connect / Hik-Central
Security	HTTPS / IP Address Filtering / User Authentication / 802.1X

STORAGE
Memory Card	MicroSD / SDHC / SDXC up to 128GB
Network Storage	NAS (NFS / SMB/CIFS)
ANR	Supported
Recording	Continuous / Event Recording

POWER
Power Supply	12VDC ±25% / PoE
PoE Standard	IEEE 802.3af, Class 3
12VDC Power Consumption	Maximum 5W
PoE Power Consumption	Maximum 6.5W

PROTECTION
Protection Rating	IP67
Operating Temperature	-30°C to +60°C
Operating Humidity	≤95% RH, Non-Condensing

POWER & GENERAL
Power Supply	12VDC / PoE
Maximum Power Consumption	6.5W
Dimensions	Ø70 × 155.03mm
Material	Metal
Net Weight	Approx. 410g
Protection Rating	IP67

Note: The Hikvision HVS-2CD2025FWD-I4 is a 2MP Powered-by-DarkFighter Fixed Mini Bullet Network Camera featuring a 1/2.8″ Progressive Scan CMOS sensor, 1920 × 1080 resolution, 4mm fixed lens and 120dB WDR. It supports H.265+/H.265/H.264+/H.264 compression, three video streams, line crossing, intrusion, unattended baggage, object removal and face detection. The camera provides up to 30m IR illumination, MicroSD storage up to 128GB and IEEE 802.3af PoE.

Important: The Hikvision HVS-2CD2025FWD-I4 is a 2MP Fixed Bullet Network Camera with a 4mm fixed lens and 86.4° horizontal field of view. It provides 120dB WDR, IR up to 30m, H.265+/H.265/H.264+/H.264, MicroSD storage up to 128GB, IEEE 802.3af PoE and IP67 protection.
