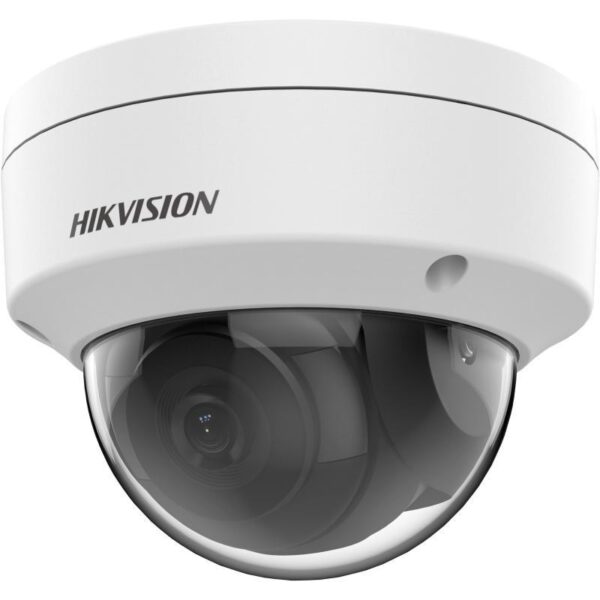

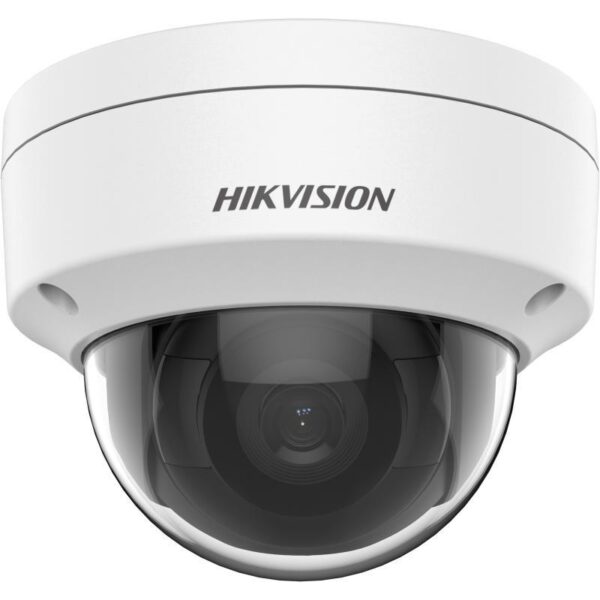

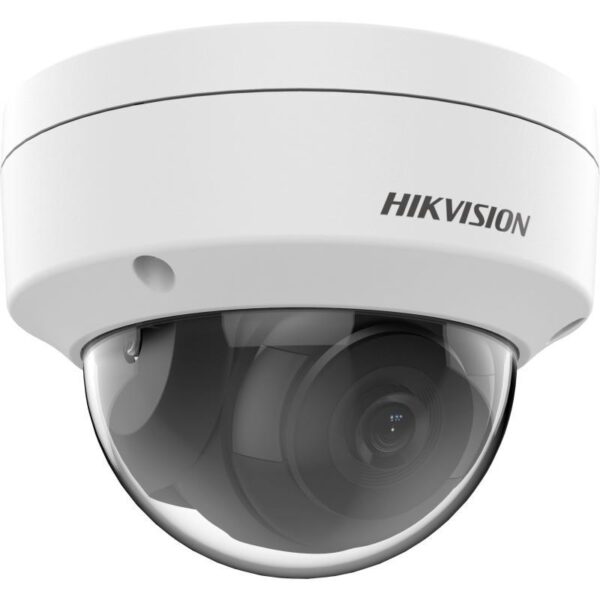

2MP Fixed Dome Network Camera

  • 2MP CMOS sensor with 1920 × 1080 resolution
  • 4mm fixed lens for focused viewing
  • IR night vision for low-light surveillance
  • Supports H.265+ and H.264 video compression
  • Supports PoE for power and network connectivity
  • IP67 weatherproof design for outdoor use
หมวดหมู่: , ป้ายกำกับ:

Specifications Hikvision HVS-CD1123G0E-I4C

Camera

Image Sensor 1/2.7″ Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100, 000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°

Lens

Focal Length & FOV

2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°

4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
Lens Mount M12
Focus Fixed
Aperture F2.0

Illuminator

Supplement Light Type IR
Supplement Light Range Up to 30 m
IR Wavelength 850 nm

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression

Main Stream: H.265/H.264/H.264+/H.265+

Sub-Stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream

Network

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host Up to 32 users. 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect
Web Browser

Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+


Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC, 3D DNR

Interface

Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event Motion detection, video tampering alarm, exception
Linkage Upload to FTP, notify surveillance center, send email

General

Power

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material Metal & Plastic
Dimension Ø110 mm × 82.4 mm (Ø4.4″ × 3.2″)
Package Dimension 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
Weight Approx. 410 g (0.9 lb.)
With Package Weight With Package Weight
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Language English, Ukrainian
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Datasheet
