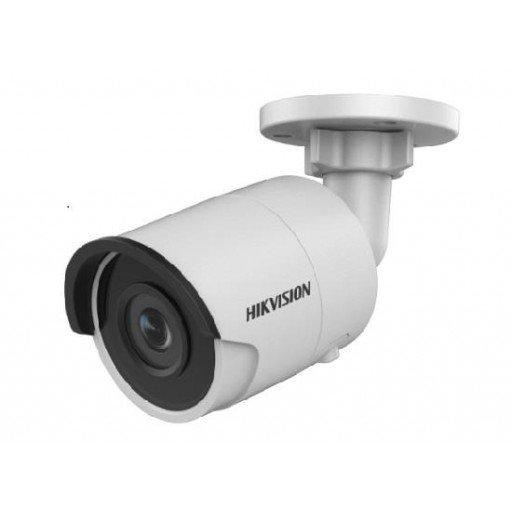

Specifications Hikvision HVS-CD2043G0-I-4
| Features |
Description |
| Product Type |
4MP Outdoor WDR Fixed Bullet Network Camera |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Lens |
4mm Fixed Lens |
| Minimum Illumination |
0.01 Lux @ F1.2, AGC ON; 0 Lux with IR |
| WDR |
120dB |
| IR Distance |
Up to 30m |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Storage |
MicroSD/SDHC/SDXC up to 128GB |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Maximum Frame Rate |
25fps @ 50Hz / 30fps @ 60Hz |
| Minimum Illumination |
Color: 0.01 Lux @ F1.2, AGC ON
0 Lux with IR |
| Shutter Speed |
1/3s to 1/100,000s |
| Wide Dynamic Range |
120dB True WDR |
| Day & Night |
IR Cut Filter with Auto Switch |
| Noise Reduction |
3D DNR |
| Backlight Compensation |
BLC / HLC |
| Slow Shutter |
Supported |
| LENS |
| Lens Type |
Fixed |
| Focal Length |
4mm |
| Aperture |
F1.6 |
| Focus |
Fixed |
| Lens Mount |
M12 |
| Horizontal Field of View |
83° |
| Vertical Field of View |
45° |
| Diagonal Field of View |
99° |
| Adjustment |
Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
| INFRARED |
| IR Technology |
EXIR 2.0 |
| IR Distance |
Up to 30m |
| IR Wavelength |
850nm |
| IR Control |
Automatic |
| VIDEO |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Video Streams |
3 Streams |
| Main Stream |
2688 × 1520 @ 25fps / 30fps |
| Sub Stream |
640 × 480 / 640 × 360 / 320 × 240 |
| Third Stream |
1280 × 720 / 640 × 360 / 352 × 288 |
| Bit Rate |
32Kbps–16Mbps |
| Bit Rate Control |
CBR / VBR |
| H.264+ |
Supported |
| H.265+ |
Supported |
| SMART FEATURES |
| Line Crossing Detection |
Supported |
| Intrusion Detection |
Supported |
| Face Detection |
Supported |
| Motion Detection |
Supported |
| Video Tampering Detection |
Supported |
| Exception Detection |
Network Disconnected / IP Conflict / Illegal Login |
| Region of Interest |
1 Fixed Region |
| NETWORK |
| Network Interface |
1 × RJ45 10/100Mbps Self-Adaptive Ethernet Port |
| Network Protocols |
TCP/IP / ICMP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / RTCP / PPPoE / NTP / UPnP / SMTP / SNMP / IGMP / 802.1X / QoS / IPv6 / Bonjour |
| Interoperability |
ONVIF Profile S / Profile G / ISAPI |
| Simultaneous Live View |
Up to 6 Channels |
| User Capacity |
Up to 32 Users |
| Client |
iVMS-4200 / Hik-Connect / iVMS-5200 |
| Security |
HTTPS / IP Address Filtering / User Authentication |
| STORAGE |
| Memory Card |
MicroSD / SDHC / SDXC up to 128GB |
| Network Storage |
NAS / NFS / SMB/CIFS |
| ANR |
Supported |
| Recording |
Continuous / Event Recording |
| POWER |
| Power Supply |
12VDC ±25% / PoE |
| PoE Standard |
IEEE 802.3af, Class 3 |
| 12VDC Power Consumption |
Maximum 6W |
| PoE Power Consumption |
Maximum 7.5W |
| PROTECTION |
| Protection Rating |
IP67 |
| Lightning Protection |
TVS 2000V |
| Housing Material |
Metal |
| Operating Temperature |
-30°C to +60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| POWER & GENERAL |
| Power Supply |
12VDC / PoE |
| Maximum Power Consumption |
7.5W |
| Dimensions |
Φ70 × 155.03mm |
| Material |
Metal |
| Net Weight |
Approx. 420g |
| Protection Rating |
IP67 |
Note: The Hikvision HVS-CD2043G0-I-4 is a 4MP Outdoor WDR Fixed Bullet Network Camera featuring a 1/3″ Progressive Scan CMOS sensor, 2688 × 1520 resolution, 4mm fixed lens, 120dB True WDR and EXIR 2.0 infrared illumination up to 30m. It supports H.265+/H.265/H.264+/H.264 compression, three video streams, line crossing, intrusion and face detection, MicroSD storage up to 128GB and PoE connectivity.
Important: The Hikvision HVS-CD2043G0-I-4 is a 4MP Fixed Bullet Network Camera with a 4mm fixed lens, 83° horizontal field of view, 120dB True WDR and EXIR 2.0 IR up to 30m. It supports H.265+, H.265, H.264+ and H.264, MicroSD storage up to 128GB, IEEE 802.3af PoE and IP67 protection.
