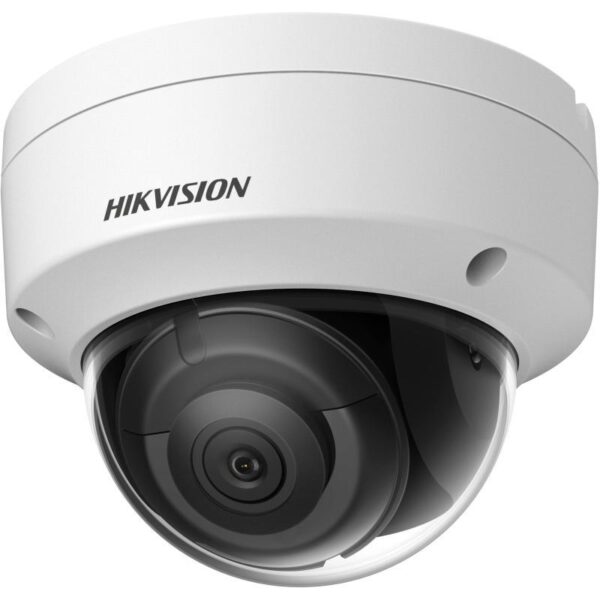

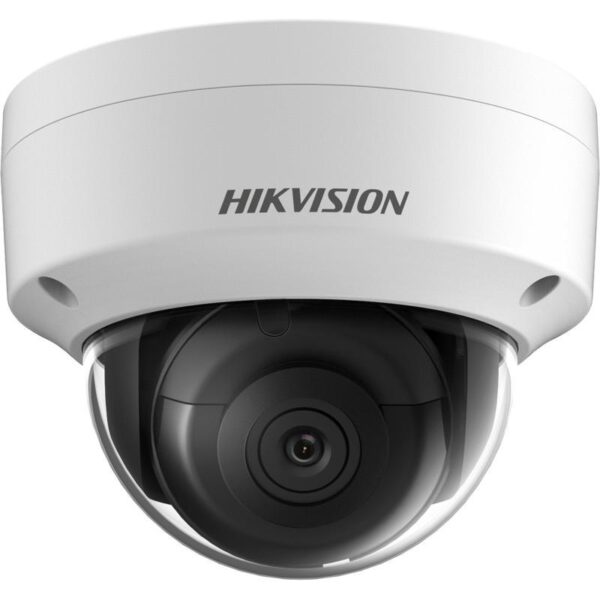

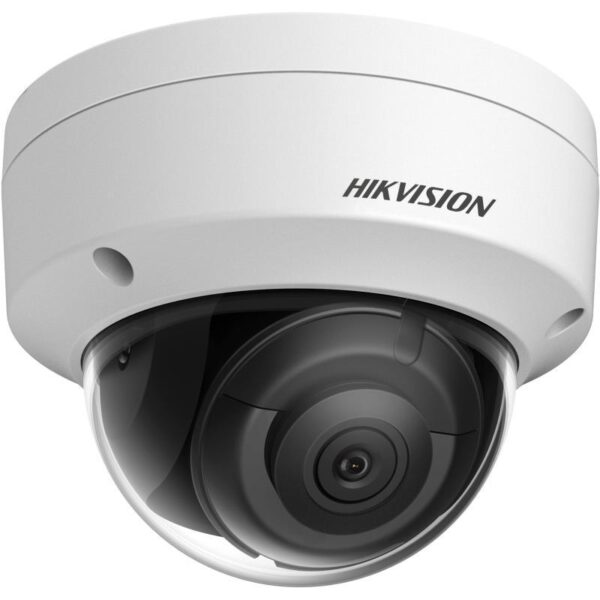

2MP Fixed Dome Network Camera

  • 2MP CMOS sensor with 1920 × 1080 resolution
  • 4mm fixed lens for focused viewing
  • IR night vision for low-light surveillance
  • Supports H.265+ and H.264 video compression
  • Supports PoE for power and network connectivity
  • IP67 weatherproof design for outdoor use
หมวดหมู่: ,

Specifications Hikvision HVS-CD3121G0-I4C

Camera

Image Sensor 1/2.7″ Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100, 000 s
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Focal Length & FOV 2.8 mm, horizontal FOV 111.6°, vertical FOV 59.3°, diagonal FOV 133.9°4 mm, horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°
Lens Mount M12
Aperture F1.6

DORI

DORI 2.8 mm: D: 43 m, O: 17 m, R: 9 m, I: 5 m4 mm: D: 53 m, O: 21 m, R: 11 m, I: 6 m

Illuminator

Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850 nm

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz: 25 fps ( 640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream

50 Hz: 1 fps (640 × 360)

60 Hz: 1 fps (640 × 360)
Video Compression

Main stream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream

Network

Network TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS, ONVIF
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host Up to 32 users. 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect
Web Browser

Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+


Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, 3D DNR

Interface

Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event Motion detection, video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection
Linkage Notify surveillance center, send email, trigger recording, trigger capture

Deep Learning Function

Perimeter Protection Line crossing, intrusion

General

Power HVS-CD3121G0-I4C

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material Metal & Plastic
Dimension Ø110.8 mm × 84.7 mm (4.4″ × 3.3″)
Package Dimension 135 mm × 135 mm × 110 mm (5.3″ × 5.3″ × 4.3″)
Weight Approx. 497 g (1.1 lb.)
With Package Weight Approx. 597 g (1.3 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Language English, Ukrainian
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
