Specifications Hikvision iDS-2CD7A46G0-IZHS
| Features | Description |
|---|---|
| Product Type | 4MP DeepinView Moto Varifocal Bullet Network Camera |
| Camera Type | Motorized Varifocal Bullet Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Maximum Resolution | 4MP (2688 × 1520) |
| Lens | 2.8–12 mm Motorized Varifocal Lens |
| WDR | 140 dB |
| Low-Light Technology | DarkFighter |
| IR Range | Up to 50 m |
| Smart Detection | Human / Vehicle / Face Detection |
| Deep Learning | Human and Vehicle Classification / Face Detection |
| Storage | MicroSD up to 256GB |
| PoE | IEEE 802.3af |
| Protection | IP67 / IK10 |
| CAMERA | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Maximum Resolution | 2688 × 1520 |
| Minimum Illumination | Color: 0.0005 Lux @ F1.2, AGC ON; B/W: 0.0001 Lux @ F1.2, AGC ON; 0 Lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Day/Night | IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 140 dB |
| Slow Shutter | Supported |
| Blue Glass Module | Supported |
| Digital Noise Reduction | 3D DNR |
| LENS | |
|---|---|
| Lens Type | Motorized Varifocal |
| Focal Length | 2.8–12 mm |
| Focus | Auto / Semi-Auto / Manual |
| Aperture | F1.2–F2.5 |
| Horizontal FOV | 114.5° to 41.8° |
| Vertical FOV | 59.3° to 23.6° |
| Diagonal FOV | 141.1° to 48° |
| P-Iris | Supported |
| Lens Mount | Integrated |
| DORI | |
|---|---|
| Wide / 2.8 mm | Detect: 60 m, Observe: 23.8 m, Recognize: 12 m, Identify: 6 m |
| Tele / 12 mm | Detect: 149 m, Observe: 59.1 m, Recognize: 29.8 m, Identify: 14.9 m |
| ILLUMINATOR | |
|---|---|
| IR Type | EXIR 2.0 |
| IR Range | Up to 50 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Supported |
| VIDEO | |
|---|---|
| Main Stream | 50 Hz: 25 fps up to 2688 × 1520; 60 Hz: 30 fps up to 2688 × 1520 |
| Sub-Stream | 50 Hz: 25 fps up to 704 × 576; 60 Hz: 30 fps up to 704 × 480 |
| Third Stream | Up to 1920 × 1080 |
| Fourth Stream | Up to 1920 × 1080 |
| Fifth Stream | Up to 704 × 576 / 704 × 480 |
| Custom Stream | Up to 1920 × 1080 |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream Compression | H.265 / H.264 / MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Profile | Baseline / Main / High Profile |
| Video Streams | 5 Defined Streams + 5 Custom Streams |
| AI & DEEP LEARNING | |
|---|---|
| Human Detection | Supported |
| Vehicle Detection | Supported |
| Face Detection | Supported |
| Human / Vehicle Classification | Supported |
| Deep Learning | Supported |
| Line Crossing Detection | Supported |
| Intrusion Detection | Supported |
| Region Entrance Detection | Supported |
| Region Exiting Detection | Supported |
| Scene Change Detection | Supported |
| IMAGE | |
|---|---|
| Wide Dynamic Range | 140 dB WDR |
| Backlight Compensation | Supported |
| Highlight Compensation | Supported |
| 3D DNR | Supported |
| Defog | Supported |
| Image Enhancement | HLC / BLC / Defog / EIS |
| Privacy Mask | Supported |
| ROI | Supported |
| AUDIO | |
|---|---|
| Audio Input | 1 × Line In, 3.5 mm |
| Audio Output | 1 × Line Out, 3.5 mm |
| Audio Compression | G.711 / G.726 / MP2L2 / PCM |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100/1000M Self-Adaptive Ethernet Port |
| Network Protocols | TCP/IP, IPv4, IPv6, HTTP, HTTPS, FTP, SMTP, DNS, DDNS, NTP, RTSP, RTP, RTCP, UDP, DHCP, PPPoE, SNMP, 802.1X, QoS, UPnP |
| Integration | ONVIF Profile S / G / T |
| API | ISAPI / Hikvision SDK |
| Client Software | iVMS-4200 / Hik-Connect |
| Web Browser | IE / Chrome / Firefox / Edge |
| STORAGE | |
|---|---|
| MicroSD Card | Up to 256GB |
| Storage Type | MicroSD / MicroSDHC / MicroSDXC |
| Network Storage | NAS / NFS / SMB / CIFS |
| ANR | Supported |
| INTERFACE | |
|---|---|
| Ethernet | 1 × RJ45 10/100/1000M |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Audio Input | 1 × 3.5 mm Line In |
| Audio Output | 1 × 3.5 mm Line Out |
| RS-485 | Not Available on Standard IZHS Model |
| MicroSD Slot | Supported |
| Reset Button | Supported |
| POE & POWER | |
|---|---|
| PoE Standard | IEEE 802.802.3at, Type 2, Class 4 |
| Power Supply | 12 VDC ±20% |
| Maximum Power Consumption | 16.8W (12 VDC) / 20W (PoE) |
| Power Output | 12 VDC, Max. 100 mA |
| PROTECTION & GENERAL | |
|---|---|
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Housing Material | Aluminum Alloy |
| Operating Temperature | -40°C to 60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Dimensions | Approx. Ø140 × 351 mm |
| Net Weight | Approx. 1.955 kg |

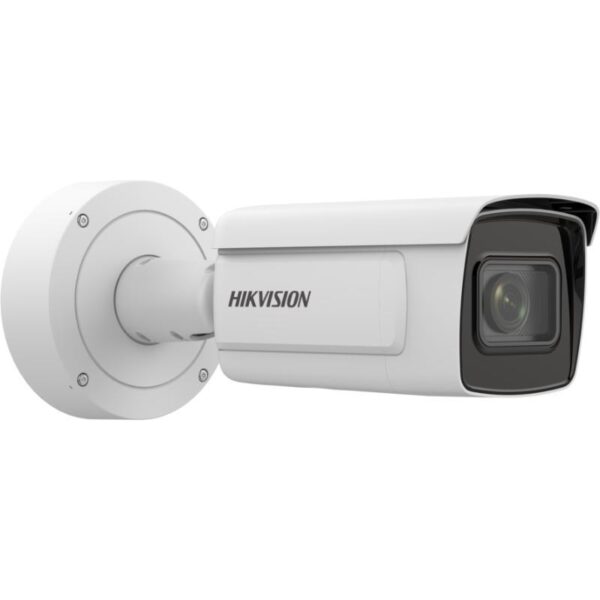

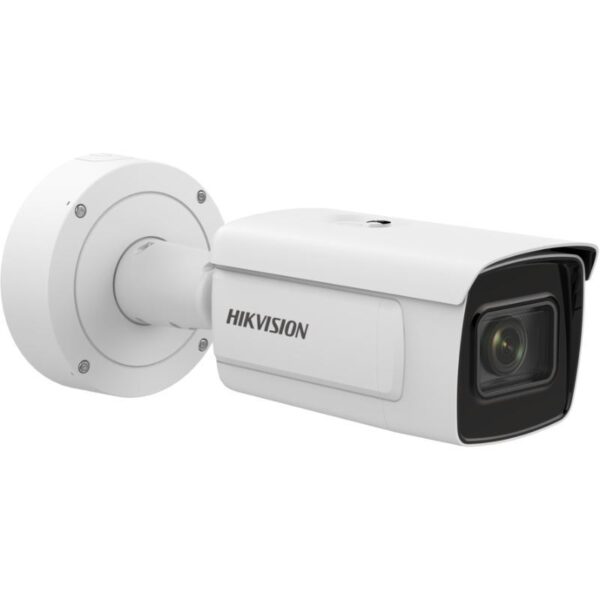

Note: The Hikvision iDS-2CD7A46G0-IZHS is a 4MP DeepinView Moto Varifocal Bullet Network Camera featuring a 1/1.8″ Progressive Scan CMOS sensor and 2688 × 1520 resolution. It uses a 2.8–12 mm motorized varifocal lens with P-Iris, DarkFighter technology, 140 dB WDR and EXIR 2.0 IR up to 50 m. The camera supports deep learning-based human, vehicle and face detection, multiple video streams, H.265+ compression, MicroSD storage up to 256GB, alarm I/O, audio I/O, IEEE 802.3at PoE and IP67/IK10 protection.
Important: The Hikvision iDS-2CD7A46G0-IZHS is a 4MP DeepinView Moto Varifocal Bullet Network Camera featuring a 2.8–12 mm motorized varifocal lens, 140 dB WDR, DarkFighter technology and up to 50 m IR. It supports Human Detection, Vehicle Detection, Face Detection and Deep Learning-based classification, together with H.265+ compression, 256GB MicroSD storage, IEEE 802.3at PoE, IP67 and IK10 protection.
