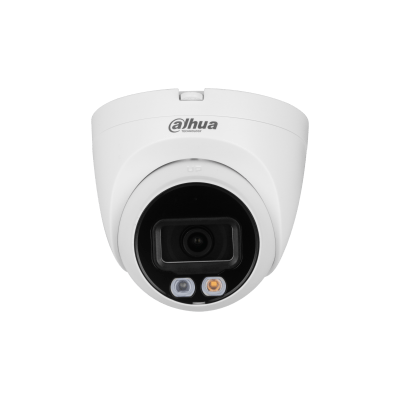

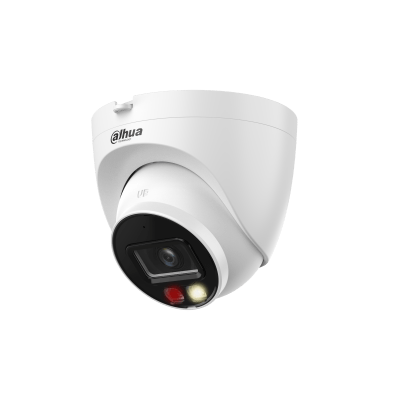

Specifications Dahua IPC-HDW2449T-S-PRO
| Features | Description |
|---|---|
| Product Type | 4MP WizColor Fixed-focal Eyeball WizSense Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Maximum Resolution | 2688 × 1520 |
| Lens | Fixed-focal 2.8mm / 3.6mm |
| Minimum Illumination | 0.0001 Lux @ F1.0 |
| WDR | 120dB |
| Smart Features | SMD Plus / Human & Vehicle Classification |
| Illumination | Warm Light up to 30m |
| Audio | Built-in Microphone |
| Protection | IP67 |
| CAMERA | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Maximum Resolution | 2688 × 1520 |
| Maximum Frame Rate | 20fps at 2688 × 1520 / 25/30fps at 2560 × 1440 |
| Minimum Illumination | 0.0001 Lux @ F1.0 |
| Electronic Shutter | Auto / Manual, 1/3s–1/100,000s |
| S/N Ratio | >56dB |
| Day/Night | Auto / Color / B/W |
| Wide Dynamic Range | 120dB |
| Noise Reduction | 3D NR |
| Backlight Compensation | BLC / HLC |
| LENS | |
|---|---|
| Lens Type | Fixed-focal |
| Lens Mount | M16 |
| Focal Length | 2.8mm / 3.6mm |
| Maximum Aperture | F1.0 |
| Iris Control | Fixed |
| Field of View – 2.8mm | H: 105° / V: 57° / D: 125° |
| Field of View – 3.6mm | H: 89° / V: 48° / D: 105° |
| Close Focus Distance – 2.8mm | 2.0m |
| Close Focus Distance – 3.6mm | 3.0m |
| DORI | |
|---|---|
| 2.8mm Detect | 57.9m |
| 2.8mm Observe | 23.2m |
| 2.8mm Recognize | 11.6m |
| 2.8mm Identify | 5.8m |
| 3.6mm Detect | 70.3m |
| 3.6mm Observe | 28.1m |
| 3.6mm Recognize | 14.1m |
| 3.6mm Identify | 7.0m |
| ILLUMINATION | |
|---|---|
| Light Type | Warm Light |
| Illuminator | 2 × Warm Light |
| Illumination Distance | Up to 30m |
| Illuminator Control | Auto / Manual |
| VIDEO | |
|---|---|
| Video Compression | H.265 / H.264 / H.264H / H.264B / MJPEG |
| Smart Codec | Smart H.265+ / Smart H.264+ |
| Main Stream | 2688 × 1520 @ 1–20fps / 2560 × 1440 @ 1–25/30fps |
| Sub Stream | 704 × 576 @ 1–25fps / 704 × 480 @ 1–30fps |
| Stream Capability | 2 Streams |
| Video Bit Rate | H.264: 32Kbps–6144Kbps / H.265: 12Kbps–6144Kbps |
| Bit Rate Control | CBR / VBR |
| ROI | Supported |
| Privacy Masking | 4 Areas |
| Digital Watermarking | Supported |
| SMART FEATURES | |
|---|---|
| IVS | Intrusion / Tripwire |
| Target Classification | Human / Vehicle |
| SMD | SMD Plus |
| Smart Search | Supported with Smart NVR |
| Motion Detection | Supported |
| Video Tampering Detection | Supported |
| Audio Detection | Supported |
| Voltage Detection | Supported |
| AUDIO | |
|---|---|
| Built-in Microphone | Supported |
| Audio Compression | G.711a / G.711Mu / PCM / G.726 |
| Audio Detection | Supported |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100Mbps Ethernet Port |
| PoE | IEEE 802.3af |
| Network Protocols | IPv4 / IPv6 / HTTP / TCP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / PPPoE / P2P / Bonjour |
| Interoperability | ONVIF Profile S / Profile G / Profile T / Profile M / CGI |
| Maximum Users | 20 Users |
| Total Bandwidth | 48Mbps |
| Security | HTTPS / 802.1X / IP-MAC Filtering / Account Lockout / Security Logs / X.509 / Trusted Boot / Trusted Execution / Trusted Upgrade |
| Management Software | SmartPSS Lite / DSS / DMSS |
| Mobile Client | iOS / Android |
| STORAGE | |
|---|---|
| MicroSD | MicroSD Card up to 256GB |
| Storage | FTP / SFTP / MicroSD / NAS |
| Smart Search | Supported with Smart NVR |
| POWER | |
|---|---|
| Power Supply | 12VDC ±30% / PoE |
| PoE Standard | IEEE 802.3af |
| Basic Power Consumption | 1.7W @ 12VDC / 2W @ PoE |
| Maximum Power Consumption | 4.9W @ 12VDC / 5.5W @ PoE |
| PROTECTION | |
|---|---|
| Ingress Protection | IP67 |
| Anti-Corrosion | Basic Protection |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Storage Temperature | -40°C to +60°C |
| Storage Humidity | ≤95% RH, Non-Condensing |
| POWER & GENERAL | |
|---|---|
| Power Supply | 12VDC / PoE |
| Maximum Power Consumption | 5.5W @ PoE |
| Dimensions | 109.5 × Ø109.9mm |
| Material | Metal Inner Core + Plastic Cover |
| Net Weight | 0.39kg |
| Operating Temperature | -40°C to +60°C |
| Protection Rating | IP67 |
Note: The Dahua IPC-HDW2449T-S-PRO is a 4MP WizColor Fixed-focal Eyeball WizSense Network Camera featuring a 1/1.8″ CMOS sensor, 2688 × 1520 resolution, 2.8mm or 3.6mm fixed-focal lens and F1.0 aperture. It supports 120dB WDR, Smart H.265+/H.264+, SMD Plus, human and vehicle classification, intrusion and tripwire detection, built-in microphone, MicroSD storage up to 256GB and warm-light illumination up to 30m.
Important: The Dahua IPC-HDW2449T-S-PRO is a 4MP WizColor Eyeball Network Camera with a 1/1.8″ CMOS sensor, 2.8mm or 3.6mm fixed-focal lens, F1.0 aperture and 120dB WDR. It supports SMD Plus, human and vehicle classification, intrusion, tripwire, Smart H.265+/H.264+, built-in microphone and up to 256GB MicroSD storage. The camera supports 12VDC and IEEE 802.3af PoE and features IP67 protection for outdoor installation.
