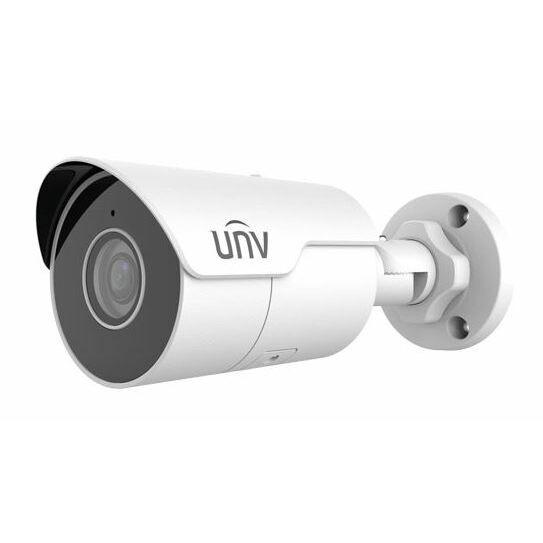

Specifications Uniview IPC2125LE-ADF28KM-G
| Features | Description |
|---|---|
| Product Type | 5MP HD Mini IR Fixed Bullet Network Camera |
| Image Sensor | 1/2.7″ 5.0 Megapixel Progressive Scan CMOS |
| Max. Resolution | 2880 × 1620 |
| Min. Illumination | Color: 0.003 Lux @ F1.6, AGC ON; 0 Lux with IR |
| Lens | Fixed 2.8 mm @ F1.6 |
| WDR | 120 dB True WDR |
| IR Range | Up to 50 m |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Frame Rate | 5MP (2880 × 1620) up to 25 fps |
| Audio | Built-in Microphone |
| Storage | MicroSD Card up to 256 GB |
| Network Interface | 1 × RJ45 10/100 Mbps |
| PoE | IEEE 802.3af |
| Power Supply | DC 12V ±25% |
| Power Consumption | Max. 5.6 W |
| Protection | IP67 |
| Operating Temperature | -30°C ~ 60°C |
| Dimensions | 190 × 73 × 71 mm |
| Weight | Approx. 0.40 kg |
| CAMERA & IMAGE | |
|---|---|
| Image Sensor | 1/2.7″ 5.0 Megapixel Progressive Scan CMOS |
| Max. Resolution | 2880 × 1620 |
| Min. Illumination | Color: 0.003 Lux @ F1.6, AGC ON; 0 Lux with IR |
| Shutter | Auto / Manual, 1 ~ 1/100,000 s |
| Day & Night | IR-Cut Filter with Auto Switch (ICR) |
| WDR | 120 dB True WDR |
| S/N Ratio | >56 dB |
| Noise Reduction | 2D / 3D DNR |
| Image Enhancement | BLC / HLC / Digital Defog / Smart IR |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| LENS & IR | |
|---|---|
| Lens Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Horizontal FOV | 112.9° |
| Vertical FOV | 59.1° |
| Diagonal FOV | 121.2° |
| DORI | Detect: 63.0 m / Observe: 25.2 m / Recognize: 12.6 m / Identify: 6.3 m |
| IR Range | Up to 50 m |
| IR Wavelength | 850 nm |
| Smart IR | Supported |
| VIDEO & AUDIO | |
|---|---|
| Main Stream | 5MP (2880 × 1620) @ 25 fps; 4MP (2560 × 1440) @ 25 fps; 3MP (2304 × 1296) @ 30 fps; 1080P (1920 × 1080) @ 30 fps |
| Sub-Stream | 720P (1280 × 720) / D1 (720 × 576) / 640 × 360 @ 30 fps |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| H.264 Profile | Baseline / Main / High Profile |
| U-Code | Supported |
| 9:16 Corridor Mode | Supported |
| ROI | Up to 8 Areas |
| Privacy Mask | Up to 4 Areas |
| OSD | Up to 4 OSDs |
| Audio | Built-in Microphone |
| Audio Compression | G.711U / G.711A |
| Audio Bit Rate | 64 Kbps |
| SMART FEATURES | |
|---|---|
| Motion Detection | Supported |
| Cross Line Detection | Supported |
| Intrusion Detection | Supported |
| Tampering Alarm | Supported |
| Audio Detection | Supported |
| Smart IR | Supported |
| NETWORK & STORAGE | |
|---|---|
| Network Interface | 1 × RJ45 10/100 Mbps Base-TX Ethernet |
| PoE | IEEE 802.3af |
| Network Protocols | IPv4 / IPv6 / TCP/IP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / RTCP / NTP / SMTP / UPnP / SNMP / SSL/TLS / 802.1X / QoS |
| ONVIF | Profile S / Profile G / Profile T |
| MicroSD | Up to 256 GB |
| Network Storage | ANR / NAS (NFS) |
| Video Stream | Dual Streams |
| Client | EZStation / EZView / EZLive |
| INTERFACE | |
|---|---|
| Ethernet | 1 × RJ45 10/100 Mbps Base-TX Ethernet |
| Audio | Built-in Microphone |
| Storage | 1 × MicroSD Card Slot, up to 256 GB |
| Alarm I/O | N/A |
| POWER & GENERAL | |
|---|---|
| Power Supply | DC 12V ±25%; PoE IEEE 802.3af |
| Power Consumption | Max. 5.6 W |
| Protection | IP67 |
| Surge Protection | 4 kV |
| Operating Temperature | -30°C ~ 60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Material | Graphene + Metal |
| Dimensions | 190 × 73 × 71 mm |
| Weight | Approx. 0.40 kg |
Note: The Uniview IPC2125LE-ADF28KM-G is a 5MP HD Mini IR Fixed Bullet Network Camera featuring a 1/2.7″ CMOS sensor, 2880 × 1620 resolution, EasyStar low-light technology, 120 dB True WDR, 2.8 mm fixed lens, up to 50 m Smart IR, built-in microphone, MicroSD storage up to 256 GB, PoE, IP67 protection and 3-axis adjustment.
