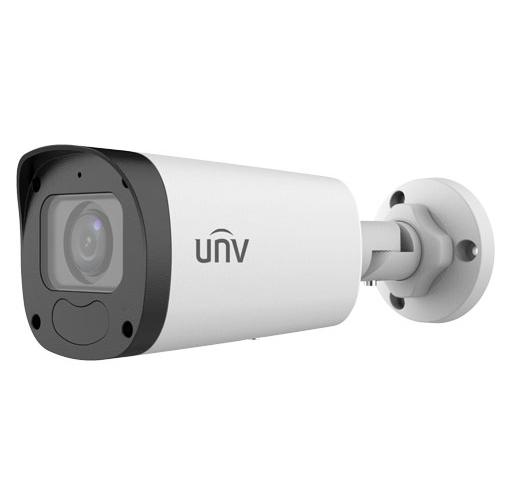

Specifications Uniview IPC2325LB-ADZK-G
| Features |
Description |
| Product Type |
5MP HD IR Varifocal Bullet Network Camera |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Maximum Resolution |
5MP (2880 × 1620) |
| Lens |
2.8–12 mm Motorized Varifocal Auto Focus Lens |
| Wide Dynamic Range |
120 dB True WDR |
| IR Range |
Up to 50 m |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Frame Rate |
Up to 25 fps @ 5MP |
| Audio |
Built-in Microphone |
| Storage |
MicroSD up to 256 GB |
| Network |
10/100M Base-TX Ethernet |
| PoE |
IEEE 802.3af |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/2.7″, 5.0 Megapixel Progressive Scan CMOS |
| Maximum Resolution |
2880 × 1620 |
| Minimum Illumination |
0.003 Lux @ F1.6, AGC ON; 0 Lux with IR On |
| Day & Night |
IR-cut Filter with Auto Switch (ICR) |
| Shutter |
Auto / Manual, 1/1 s to 1/100000 s |
| S/N Ratio |
>56 dB |
| Noise Reduction |
2D / 3D DNR |
| WDR |
120 dB True WDR |
| Defog |
Digital Defog |
| LENS |
| Lens Type |
Motorized Varifocal Auto Focus Lens |
| Focal Length |
2.8–12 mm |
| Iris |
Fixed |
| Horizontal FOV |
108.79°–33.23° |
| Vertical FOV |
56.90°–18.33° |
| Diagonal FOV |
112.56°–37.46° |
| DORI |
| 2.8 mm |
Detect: 63 m / Observe: 25.2 m / Recognize: 12.6 m / Identify: 6.3 m |
| 12 mm |
Detect: 270 m / Observe: 108 m / Recognize: 54 m / Identify: 27 m |
| ILLUMINATOR |
| IR Type |
850 nm |
| IR Range |
Up to 50 m |
| Smart IR |
Supported |
| IR Control |
Auto / Manual |
| VIDEO |
| Main Stream |
5MP (2880 × 1620) Max. 25 fps
4MP (2560 × 1440) Max. 25 fps
3MP (2304 × 1296) Max. 30 fps
1080P (1920 × 1080) Max. 30 fps |
| Sub Stream |
720P / D1 / 640 × 360 / 2CIF / CIF, Max. 30 fps |
| Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Video Bit Rate |
128 Kbps–16 Mbps |
| Corridor Mode |
9:16 Supported |
| ROI |
Up to 8 Areas |
| Privacy Mask |
Up to 4 Areas |
| Motion Detection |
Up to 4 Areas |
| AUDIO |
| Microphone |
Built-in Microphone |
| Audio Compression |
G.711 |
| Sampling Rate |
8 kHz |
| Noise Suppression |
Supported |
| STORAGE & NETWORK |
| Storage |
MicroSD up to 256 GB |
| Network Interface |
1 × RJ45 10/100M Base-TX Ethernet |
| Network Protocols |
IPv4 / TCP / UDP / DHCP / RTP / RTSP / HTTP / HTTPS / FTP / NTP / SMTP / SNMP |
| Compatibility |
ONVIF Profile S / G / T, API |
| SMART |
| Behavior Detection |
Cross Line / Intrusion based on Human Body Detection |
| Motion Detection |
Supported |
| Tampering Alarm |
Supported |
| Audio Detection |
Supported |
| POWER & GENERAL |
| Power Supply |
DC 12V ±25% |
| PoE |
IEEE 802.3af |
| Maximum Power Consumption |
8.5 W |
| Protection |
IP67 |
| Surge Protection |
6 kV |
| Material |
Metal |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Dimensions |
206 × 74 × 74 mm |
| Weight |
Approx. 0.55 kg |
Note: The Uniview IPC2325LB-ADZK-G is a 5MP HD IR Varifocal Bullet Network Camera featuring a 1/2.7″ CMOS sensor, 2880 × 1620 resolution, 2.8–12 mm motorized autofocus varifocal lens, 120 dB True WDR, Smart IR up to 50 m, built-in microphone, MicroSD storage up to 256 GB, PoE, IP67 protection, and 6 kV surge protection.
