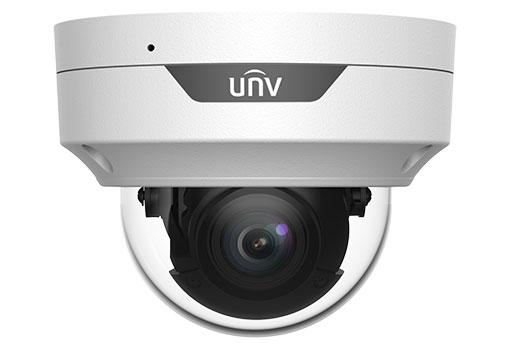

Specifications Uniview IPC3532LB-ADZK-H
| Features | Description |
|---|---|
| Product Type | 2MP HD IR Varifocal Dome Network Camera |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Frame Rate | Up to 30 fps @ 1920 × 1080 |
| Lens | 2.8 ~ 12 mm Motorized Varifocal Lens |
| Aperture | F1.6 |
| Minimum Illumination | 0.003 Lux (F1.6, AGC ON), 0 Lux with IR |
| Field of View | H: 103.6° ~ 33.4° / V: 54.8° ~ 18.7° / D: 107.9° ~ 37.8° |
| WDR | 120 dB True WDR |
| IR Range | Up to 40 m |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Video Streams | Dual Streams |
| Image Enhancement | 2D/3D DNR / BLC / HLC / Smart IR / 9:16 Corridor Mode |
| Smart Functions | Motion Detection / Tampering Alarm / Audio Detection |
| Audio | Built-in Microphone |
| Storage | MicroSD up to 512GB |
| Network Interface | 1 × RJ45 10/100M Base-TX Ethernet |
| ONVIF | Profile S / Profile G / Profile T |
| Power Supply | DC 12V ±25% / PoE IEEE 802.3af |
| Power Consumption | Max. 8 W |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Surge Protection | 6 KV |
| Operating Temperature | -30°C ~ 60°C |
| Dimensions | Φ128 × 100 mm |
| Weight | 0.66 kg |
| CAMERA & LENS | |
|---|---|
| Image Sensor | 1/2.7″ 2MP Progressive Scan CMOS |
| Resolution | 1920 × 1080 |
| Lens | 2.8 ~ 12 mm Motorized Varifocal Lens |
| Aperture | F1.6 |
| Field of View | H: 103.6° ~ 33.4° / V: 54.8° ~ 18.7° / D: 107.9° ~ 37.8° |
| WDR | 120 dB True WDR |
| VIDEO & IMAGE | |
|---|---|
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream | 1920 × 1080 @ Max. 30 fps |
| Sub Stream | 720P / D1 / 640 × 360 @ Max. 30 fps |
| Video Bit Rate | 128 Kbps ~ 6144 Kbps |
| DNR | 2D/3D DNR |
| ROI | Supported |
| Privacy Mask | Up to 4 Areas |
| Smart IR | Supported |
| Corridor Mode | 9:16 Supported |
| INTELLIGENT FEATURES | |
|---|---|
| Motion Detection | Supported |
| Tampering Alarm | Supported |
| Audio Detection | Supported |
| Smart IR | Supported |
| AUDIO & STORAGE | |
|---|---|
| Microphone | Built-in Microphone |
| Audio I/O | Built-in Microphone |
| MicroSD | Up to 512GB |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100M Base-TX |
| ONVIF | Profile S / Profile G / Profile T |
| Video Stream | Dual Streams |
| Protocols | IPv4 / IPv6 / TCP / UDP / DHCP / DNS / DDNS / NTP / RTP / RTSP / HTTP / HTTPS / FTP / SMTP / SNMP / UPnP |
| POWER & PROTECTION | |
|---|---|
| Power Supply | DC 12V ±25% / PoE IEEE 802.3af |
| Power Consumption | Max. 8 W |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Surge Protection | 6 KV |
| Operating Temperature | -30°C ~ 60°C |
Note: The Uniview IPC3532LB-ADZK-H is a 2MP HD IR Varifocal Dome Network Camera featuring a 1/2.7″ CMOS sensor, 2.8–12mm motorized varifocal lens, 120dB True WDR, Smart IR up to 40m, Ultra 265 video compression, built-in microphone, MicroSD storage up to 512GB, PoE support, IP67 weather protection and IK10 vandal resistance. It is suitable for indoor and outdoor surveillance applications.
