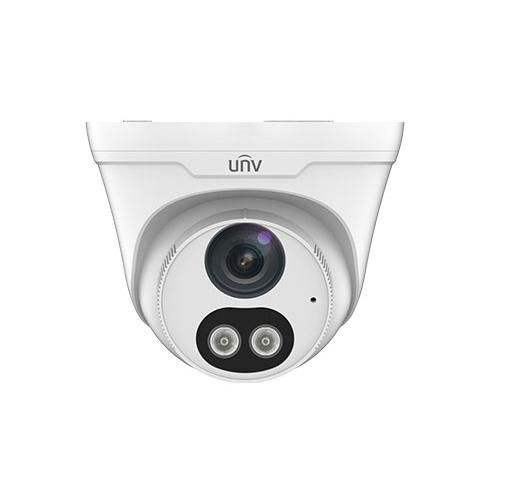

Specifications Uniview IPC3612LE-ADF28KC-WL
| Features |
Description |
| Product Type |
2MP HD ColorHunter IR Fixed Eyeball Network Camera |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Maximum Resolution |
2MP (1920 × 1080) |
| Lens |
2.8 mm Fixed Lens |
| Aperture |
F1.6 |
| Wide Dynamic Range |
120 dB True WDR |
| IR Range |
Up to 30 m |
| White Light Range |
Up to 30 m |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Frame Rate |
Up to 30 fps @ 1080p |
| Audio |
Built-in Microphone & Speaker, Two-way Audio |
| Storage |
MicroSD up to 128 GB |
| Network |
10/100M Base-TX Ethernet |
| PoE |
IEEE 802.3af |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/2.8″, 2.0 Megapixel Progressive Scan CMOS |
| Maximum Resolution |
1920 × 1080 |
| Minimum Illumination |
0.003 Lux @ F1.6, AGC ON; 0 Lux with IR |
| Day & Night |
IR-cut Filter with Auto Switch (ICR) |
| Shutter |
Auto / Manual, 1/1 to 1/100000 s |
| S/N Ratio |
>52 dB |
| Noise Reduction |
2D / 3D DNR |
| WDR |
120 dB True WDR |
| Defog |
Digital Defog |
| LENS |
| Lens Type |
Fixed Lens |
| Focal Length |
2.8 mm |
| Aperture |
F1.6 |
| Horizontal FOV |
106.7° |
| Vertical FOV |
57.1° |
| Diagonal FOV |
115.7° |
| DORI |
| Detect |
43.4 m |
| Observe |
17.4 m |
| Recognize |
8.7 m |
| Identify |
4.3 m |
| ILLUMINATOR |
| IR Type |
850 nm |
| IR Range |
Up to 30 m |
| White Light Range |
Up to 30 m |
| Smart IR |
Supported |
| IR Control |
Auto / Manual |
| VIDEO |
| Main Stream |
1080P (1920 × 1080), Max. 30 fps
720P (1280 × 720), Max. 30 fps |
| Sub Stream |
720P / D1 / 640 × 360 / 2CIF / CIF, Max. 30 fps |
| Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Video Bit Rate |
128 Kbps–6 Mbps |
| Corridor Mode |
9:16 Supported |
| ROI |
Up to 8 Areas |
| Privacy Mask |
Up to 4 Areas |
| Motion Detection |
Up to 4 Areas |
| AUDIO |
| Microphone |
Built-in Microphone |
| Speaker |
Built-in Speaker |
| Audio Compression |
G.711U / G.711A |
| Two-way Audio |
Supported |
| Audio Bit Rate |
64 Kbps |
| Sampling Rate |
8 kHz |
| SMART |
| Behavior Detection |
Cross Line / Intrusion based on Human Body Detection |
| Motion Detection |
Supported |
| Tampering Alarm |
Supported |
| Audio Detection |
Supported |
| STORAGE & NETWORK |
| Storage |
MicroSD up to 128 GB |
| Network Interface |
1 × RJ45 10/100M Base-TX Ethernet |
| Network Storage |
ANR / NAS (NFS) |
| Compatibility |
ONVIF Profile S / G / T, API, SDK |
| POWER & GENERAL |
| Power Supply |
DC 12V ±25% |
| PoE |
IEEE 802.3af |
| Maximum Power Consumption |
8.0 W |
| Protection |
IP67 |
| Material |
Metal + Plastic |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Dimensions |
Ø118 × 95 mm |
| Weight |
Approx. 0.30 kg |
Note: The Uniview IPC3612LE-ADF28KC-WL is a 2MP HD ColorHunter IR Fixed Eyeball Network Camera featuring a 1/2.8″ CMOS sensor, 1920 × 1080 resolution, 2.8 mm fixed lens, 120 dB True WDR, Smart IR and white light up to 30 m, built-in microphone and speaker, two-way audio, MicroSD storage up to 128 GB, PoE, and IP67 protection.
