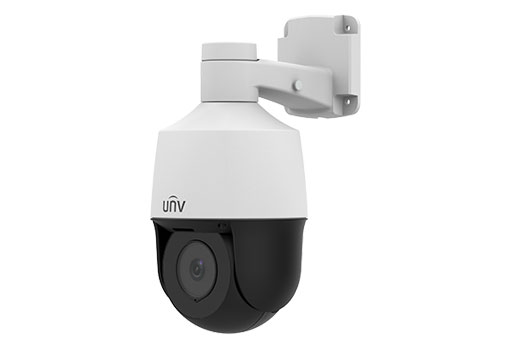

Specifications Uniview IPC672LR-AX4DUPK

Features	Description
Device Type	2MP LightHunter IR Network PTZ Dome Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Maximum Resolution	1920 × 1080
Optical Zoom	4X
Focal Length	2.8 ~ 12mm
WDR	120dB Optical WDR
IR Range	Up to 50m
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Smart Features	Motion Detection, ROI, Smart IR, HLC, BLC and Dewarping
Audio	Built-in Microphone and Speaker
Storage	MicroSD up to 128GB
Protection	IP66

CAMERA
Image Sensor	1/2.8″, 2.0 Megapixel Progressive Scan CMOS
Minimum Illumination	Color: 0.001 Lux (F1.6, AGC ON), 0 Lux with IR
Day/Night	IR-Cut Filter with Auto Switch (ICR)
Shutter	Auto / Manual, 1s ~ 1/100000s
WDR	120dB Optical WDR
S/N	>52dB
Digital Noise Reduction	2D / 3D DNR

LENS
Lens Type	2.8 ~ 12mm AF Automatic Focusing and Motorized Zoom Lens
Optical Zoom	4X
Horizontal Field of View	32.5° ~ 95.7°
Vertical Field of View	18.4° ~ 52.2°
Diagonal Field of View	36.9° ~ 100.8°

DORI
Detect	43.4m ~ 186.2m
Observe	17.4m ~ 74.5m
Recognize	8.7m ~ 37.2m
Identify	4.3m ~ 18.6m

VIDEO
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Main Stream	1080P (1920 × 1080), Max 30fps / 720P (1280 × 720), Max 30fps
Sub Stream	720P (1280 × 720), Max 30fps
Third Stream	CIF (352 × 288), Max 30fps
Video Bit Rate	128Kbps ~ 16Mbps
Video Stream	Triple Streams
H.264 Code Profile	Baseline Profile / Main Profile
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 Areas
ROI	Up to 8 Areas
Motion Detection	Up to 4 Areas

White Balance	Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital Noise Reduction	2D / 3D DNR
Smart IR	Supported
HLC	Supported
BLC	Supported
Dewarping	Supported
Image Flip	Normal / Vertical / Horizontal / 180°

PTZ
Pan Range	345°
Pan Speed	0.1°/s ~ 50°/s
Preset Pan Speed	50°/s
Tilt Range	90°
Tilt Speed	0.1°/s ~ 40°/s
Preset Tilt Speed	40°/s
Presets	256
Patrol	Preset Patrol / Route Patrol

AUDIO
Audio Compression	G.711
Sampling Rate	8KHz
Audio Suppression	Supported
Built-in Microphone	Supported
Built-in Speaker	Supported
Two-Way Audio	Supported

STORAGE
Edge Storage	MicroSD, Up to 128GB
Network Storage	ANR / NAS (NFS)

NETWORK
Network Interface	1 × RJ45 10/100Mbps Base-TX Ethernet
ONVIF	Profile S / Profile G / Profile T
Compatible Integration	ONVIF / API
Network Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL
Client	EZStation / EZView / EZLive

POWER & PROTECTION
Power Supply	DC 12V ±25% / PoE (IEEE 802.3at)
Maximum Power Consumption	16W
Surge Protection	4KV
Protection	IP66

PHYSICAL & ENVIRONMENT
Dimensions	Ø133 × 248.4mm
Net Weight	0.87kg
Gross Weight	1.13kg
Material	Metal + Plastic
Operating Temperature	-20°C to 60°C
Operating Humidity	≤95% RH, Non-Condensing
Storage Temperature	-20°C to 60°C
Storage Humidity	≤95% RH, Non-Condensing

Note: The Uniview IPC672LR-AX4DUPK is a 2MP LightHunter IR Network PTZ Dome Camera featuring a 1/2.8″ progressive scan CMOS sensor, 2.8~12mm motorized zoom lens and 4X optical zoom. It supports 1920 × 1080 video at up to 30fps, Ultra 265/H.265/H.264/MJPEG compression, 120dB Optical WDR, Smart IR up to 50m, built-in microphone and speaker, MicroSD storage up to 128GB and ONVIF integration. The camera supports DC 12V and PoE (IEEE 802.3at).

Important: The IPC672LR-AX4DUPK is a 2MP PTZ Dome Camera with 4X optical zoom, 120dB Optical WDR and Smart IR up to 50m. It supports built-in microphone and speaker, two-way audio, MicroSD storage up to 128GB, 256 presets, 4KV surge protection and IP66 protection. Maximum power consumption is 16W.
