Specifications Uniview IPC9312LFW-AF28-2X4
| Features | Description |
|---|---|
| Device Type | 2MP+2MP 4X ColorHunter MultiView Dual-light Network PTZ Camera |
| Camera Type | Dual-Lens Panorama + PTZ Camera |
| Image Sensor | 1/2.8″ 2MP CMOS |
| Maximum Resolution | 1920 × 1080 |
| Optical Zoom | 4X on PTZ Channel |
| Focal Length | 2.8mm Panorama / 2.8 ~ 12mm PTZ |
| WDR | Up to 120dB Optical WDR |
| IR Range | Up to 10m Panorama / Up to 50m PTZ |
| Warm Light Range | Up to 10m PTZ |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features | Smart Intrusion Prevention, Cross Line, Intrusion, Enter Area and Leave Area Detection |
| Audio | Built-in Dual Microphone and High-Power Speaker, Two-Way Audio |
| LightHunter | Supported |
| Installation | Wall Mount / Ceiling Mount |
| Protection | IP66 |
| CAMERA | |
|---|---|
| Image Sensor | 1/2.8″, 2MP CMOS |
| Minimum Illumination – Panorama | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR |
| Minimum Illumination – PTZ | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR / Warm Light |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| LENS | |
|---|---|
| Panorama Lens | 2.8mm Fixed Lens |
| PTZ Lens | 2.8 ~ 12mm AF Automatic Focusing and Motorized Zoom Lens |
| Optical Zoom | 4X PTZ Channel |
| Panorama Horizontal FOV | 102.4° |
| PTZ Horizontal FOV | 106.6° ~ 30.6° |
| Panorama Vertical FOV | 54.9° |
| PTZ Vertical FOV | 56.5° ~ 17.4° |
| Panorama Diagonal FOV | 133.1° |
| PTZ Diagonal FOV | 138.6° ~ 37.6° |
| DORI | |
|---|---|
| Detect – Panorama | 43.4m |
| Observe – Panorama | 17.4m |
| Recognize – Panorama | 8.7m |
| Identify – Panorama | 4.3m |
| Detect – PTZ | 43.4m ~ 162.9m |
| Observe – PTZ | 17.4m ~ 65.2m |
| Recognize – PTZ | 8.7m ~ 32.6m |
| Identify – PTZ | 4.3m ~ 16.3m |
| VIDEO | |
|---|---|
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream | 1080P (1920 × 1080), Max 25fps |
| Sub Stream | 720P (1280 × 720), Max 25fps |
| Video Bit Rate | 128Kbps ~ 16Mbps |
| U-Code | Supported |
| ROI | Up to 8 Areas |
| Video Stream | Dual Streams |
| OSD | Up to 4 OSDs |
| Privacy Mask | 24 Areas, Up to 4 Areas per Scene |
| IMAGE | |
|---|---|
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| Smart IR | Supported |
| HLC | Supported |
| BLC | Supported |
| Image Flip | Normal / Vertical / Horizontal / 180° |
| PTZ | |
|---|---|
| Pan Range | 0° ~ 345° |
| Pan Speed | 1°/s ~ 40°/s |
| Tilt Range | -10° ~ 100° |
| Tilt Speed | 2°/s ~ 50°/s |
| Presets | 256 |
| Preset Patrol | 16 Patrols, Up to 64 Presets per Patrol |
| Patrol Stay Time | 1000s ~ 1800s |
| Home Position | Supported |
| SMART FEATURES | |
|---|---|
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area and Leave Area Detection |
| False Alarm Filtering | Supported |
| PTZ Tracking | PTZ Channel can be linked to the fixed channel’s Smart Intrusion Prevention to track triggering objects |
| LightHunter | Provides High Image Quality in Low-Light Environments |
| ILLUMINATOR | |
|---|---|
| IR Range – Panorama | Up to 10m |
| IR Range – PTZ | Up to 50m |
| Warm Light Range – PTZ | Up to 10m |
| IR Wavelength | 850nm |
| Light Control | Auto / Manual |
| AUDIO | |
|---|---|
| Built-in Microphone | Dual Microphone |
| Built-in Speaker | High-Power Speaker |
| Two-Way Audio | Supported |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| IP Address | Dual Channels with One IP Address |
| Network Protocol | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP and SSL |
| Client | EZStation / UNV-Link / UNV-Link Pro |
| POWER & PROTECTION | |
|---|---|
| Power Supply | DC 12V / PoE+ (IEEE 802.3at) |
| Maximum Power Consumption | 16W |
| Surge Protection | 2KV |
| Protection | IP66 |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Wall Mount Dimensions | 192 × 134 × 302mm |
| Ceiling Mount Dimensions | 154 × 134 × 363mm |
| Weight | 1.03kg |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Storage Humidity | ≤95% RH, Non-Condensing |

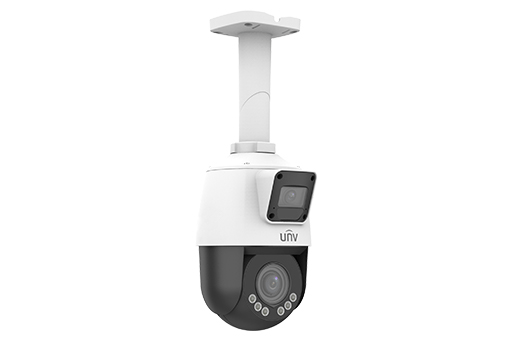

Note: The Uniview IPC9312LFW-AF28-2X4 is a 2MP+2MP ColorHunter MultiView Dual-light Network PTZ Camera combining a fixed 2MP panorama camera and a 2MP PTZ camera under one IP address. The panorama channel uses a 2.8mm fixed lens with a 102.4° horizontal field of view, while the PTZ channel uses a 2.8~12mm motorized lens with 4X optical zoom. It supports 120dB optical WDR, LightHunter technology, Smart Intrusion Prevention, IR and warm-light illumination, built-in dual microphones, high-power speaker and two-way audio.
Important: The IPC9312LFW-AF28-2X4 is a dual-lens camera combining Panorama and PTZ, rather than a conventional single-lens PTZ camera. The fixed panorama channel provides a wide overall view while the PTZ channel can optically zoom up to 4X. The PTZ channel can also be linked to the fixed channel’s Smart Intrusion Prevention rules to track objects that trigger an event. The camera supports PoE+ (IEEE 802.3at), has IP66 protection and a maximum power consumption of 16W.
