Specifications LINK CB-0106A-1
| Features |
Description |
| Product Type |
RG 6/U Coaxial Cable |
| Grade |
ADVANCE GRADE |
| Application |
CCTV, CATV, MATV, HDTV, TV Cable, RF Signal Transmission |
| Inner Conductor |
Copper Covered Steel, 1.02 mm (18AWG) |
| Dielectric |
Foamed Polyethylene, 4.57 mm |
| Shield Tape |
AL/P-Foil (Bonded), 100% Coverage |
| Braid Wire |
Aluminum, 0.12 mm x 144 Wires |
| Shield Coverage |
95% |
| Jacket |
Black PVC/LSZH |
| Cable Diameter |
6.86 ± 0.15 mm |
| Impedance |
75 Ohm |
| Messenger Wire |
N/A |
| Electrical Characteristics |
Description |
| Capacitance |
52 pF/m ± 3 pF/m |
| Velocity Ratio |
> 82% |
| DCR Inner Conductor |
< 92 Ohm/km @ 20°C |
| DCR Shield |
< 29 Ohm/km @ 20°C |
| Insulation Resistance |
> 10,000 MΩ·km |
| Dielectric Strength |
2500 VAC |
| Jacket Sparker |
4000 VAC |
| Return Loss (5-470 MHz) |
> 25 dB |
| Return Loss (470-1000 MHz) |
> 23 dB |
| Return Loss (1000-2000 MHz) |
> 20 dB |
| Screening Factor |
VHF: 80 dB / UHF: 75 dB |
| Physical Characteristics |
Description |
| Maximum Pulling Tension |
470 N |
| Minimum Bending Radius |
Installation: 10 x Cable Diameter (68.6 mm)
Operation: 4 x Cable Diameter (27.44 mm) |
| Operating / Storage Temperature |
-20°C to +75°C |
| Installation Temperature |
0°C to +60°C |
| Jacket Color |
Black |
| Packaging |
100 m / Easy Box |
| Standards |
Description |
| Standard |
MIL-C-17F, MIL-C-17G, ANSI/TIA-568-C.4 |
| Compliance |
UL Communication Cable, UL CATV Cable, RoHS Compliant |
Note: The LINK CB-0106A-1 is an RG 6/U ADVANCE GRADE Coaxial Cable featuring a 1.02 mm Copper Covered Steel inner conductor, Foamed Polyethylene dielectric, 95% aluminum braid shielding, and bonded AL/P-Foil shielding. It is designed for CCTV, CATV, MATV, HDTV, TV Cable, and RF signal transmission.

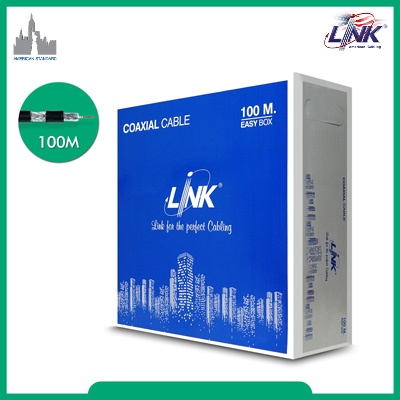

Important: The CB-0106A-1 is the 100 m Easy Box version with a black PVC/LSZH jacket. It features 75 Ohm impedance and 95% shielding for effective protection against signal interference.
