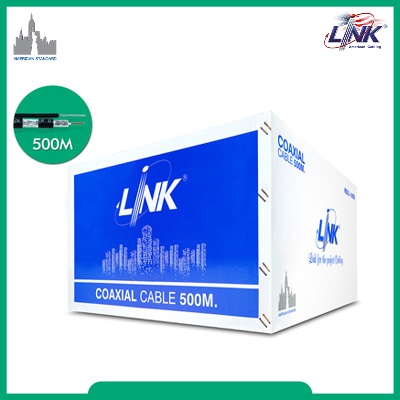

Specifications LINK CB-0106AM
| Features |
Description |
| Product Type |
RG 6/U Outdoor Coaxial Cable with Messenger Wire |
| Grade |
ADVANCE GRADE |
| Application |
CCTV, MATV, TV Cable, RF Signal Transmission |
| Installation |
Outdoor / Aerial Installation |
| Inner Conductor |
Copper Covered Steel, 1.02 mm (18AWG) |
| Dielectric |
Foamed Polyethylene, 4.57 mm |
| Shield Tape |
AL/P-Foil (Bonded), 100% Coverage |
| Braid Wire |
Aluminum, 0.12 mm x 144 Wires |
| Shield Coverage |
95% |
| Non-Hygroscopic Tape |
PET Foil |
| Jacket |
Black PE |
| Cable Diameter |
6.86 mm |
| Impedance |
75 Ohm |
| Messenger Wire |
Galvanized Steel, 1.3 mm, PE 2.30 mm |
| Electrical Characteristics |
Description |
| Capacitance |
52 pF/m ± 3 pF/m |
| Velocity Ratio |
> 82% |
| DCR Inner Conductor |
< 92 Ohm/km @ 20°C |
| DCR Shield |
< 29 Ohm/km @ 20°C |
| Insulation Resistance |
> 10,000 MΩ·km |
| Return Loss (5-470 MHz) |
> 25 dB |
| Return Loss (470-1000 MHz) |
> 23 dB |
| Return Loss (1000-2000 MHz) |
> 20 dB |
| Screening Factor |
VHF: 80 dB / UHF: 75 dB |
| Dielectric Strength |
2500 VAC |
| Jacket Sparker |
4000 VAC |
| Physical Characteristics |
Description |
| Maximum Pulling Tension |
470 N |
| Minimum Bending Radius |
Installation: 10 x Cable Diameter
Operation: 4 x Cable Diameter |
| Operating / Storage Temperature |
-20°C to +75°C |
| Installation Temperature |
0°C to +60°C |
| Jacket Color |
Black |
| Jacket Material |
PE |
| Packaging |
500 m / Roll |
| Standards |
Description |
| Standard |
ANSI/TIA-568-C.4, MIL-C-17F, MIL-C-17G |
| Compliance |
UL Communication Cable, RoHS Compliant |
Note: The LINK CB-0106AM is an RG 6/U ADVANCE GRADE Outdoor Coaxial Cable with a 1.02 mm (18AWG) Copper Covered Steel inner conductor, Foamed Polyethylene dielectric, 95% aluminum braid shielding, bonded AL/P-Foil shielding, and a black PE jacket. It includes a galvanized steel messenger wire for aerial installation.
Important: The CB-0106AM is designed for outdoor and aerial installations where the integrated messenger wire provides mechanical support. It is supplied as a 500 m roll.
