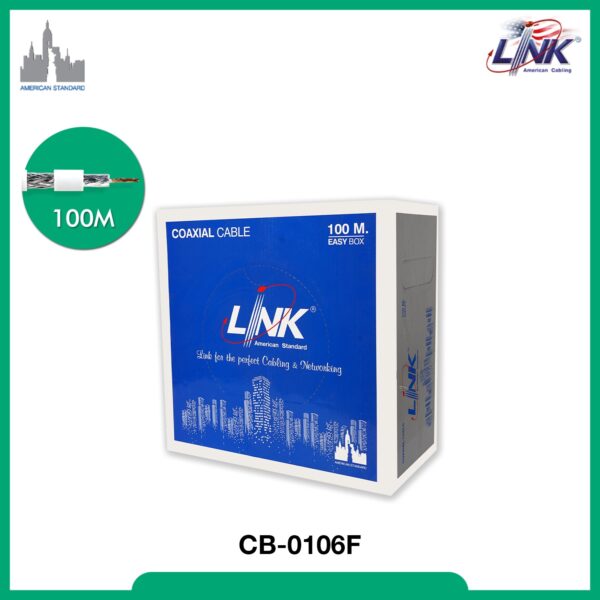

Specifications LINK CB-0106F
| Features |
Description |
| Product Type |
RG 59 Flexible Stranded Coaxial Cable |
| Grade |
ADVANCE GRADE |
| Application |
Analog CCTV, HD CCTV, Ethernet Over Coaxial, CATV, MATV, HDTV, TV Cable, RF Signal |
| Inner Conductor |
Stranded Copper Covered Steel, 0.20 mm x 16 Wires (20AWG) |
| Dielectric |
Foam Polyethylene, 3.66 mm |
| Shield Tape |
AL/P-Foil (Bonded), 100% Coverage |
| Braid Wire |
Aluminum, 0.16 mm x 64 Wires |
| Shield Coverage |
90% |
| Jacket |
White PVC |
| Cable Diameter |
6.20 ± 0.15 mm |
| Impedance |
75 Ohm |
| Electrical Characteristics |
Description |
| Capacitance |
52 pF/m |
| Velocity Ratio |
> 82% |
| DCR Inner Conductor |
< 44 Ohm/km @ 20°C |
| DCR Shield |
< 36 Ohm/km @ 20°C |
| Insulation Resistance |
> 10,000 MΩ·km |
| Dielectric Strength |
2500 VAC |
| Jacket Sparker |
4000 VAC |
| Return Loss (5-470 MHz) |
> 25 dB |
| Return Loss (470-1000 MHz) |
> 23 dB |
| Return Loss (1000-2000 MHz) |
> 20 dB |
| Screening Factor |
VHF: 80 dB / UHF: 75 dB |
| Physical Characteristics |
Description |
| Maximum Pulling Tension |
372 N |
| Minimum Bending Radius |
Installation: 10 x Cable Diameter
Operation: 4 x Cable Diameter |
| Operating / Storage Temperature |
-20°C to +75°C |
| Installation Temperature |
0°C to +60°C |
| Jacket Color |
White |
| Jacket Material |
PVC |
| Packaging |
100 m / Easy Box |
| Standards |
Description |
| Standard |
ANSI/TIA-568-C.4, MIL-C-17F, MIL-C-17G |
| Compliance |
UL Communication Cable, RoHS Compliant |
Note: The LINK CB-0106F is an RG 59 Flexible Stranded Coaxial Cable with ADVANCE GRADE construction, featuring a stranded Copper Covered Steel inner conductor, 90% aluminum braid shielding, bonded AL/P-Foil shielding, and a white PVC jacket. It is designed for CCTV, CATV, MATV, HDTV, TV Cable, Ethernet Over Coaxial, and RF signal transmission.
Important: The CB-0106F is a flexible 75 Ohm coaxial cable designed for applications requiring easier cable routing and bending. It is supplied in a 100 m Easy Box.
