Specifications LINK CB-0108P
| Features | Description |
|---|---|
| Product Type | RG 6/U Coaxial Cable |
| Grade | MILITARY GRADE |
| Application | CCTV, CATV, MATV, HDTV, TV Cable, RF Signal Transmission |
| Installation | Outdoor |
| Inner Conductor | Bare Copper, 1.02 mm (18AWG) |
| Dielectric | Foamed Polyethylene, 4.80 mm |
| Shield Tape | AL/P-Foil (Bonded), 100% Coverage |
| Braid Wire | Bare Copper, 0.12 mm x 168 Wires |
| Shield Coverage | 95% |
| Jacket | Black PE |
| Cable Diameter | 6.80 mm |
| Impedance | 75 Ohm |
| Electrical Characteristics | Description |
|---|---|
| Attenuation | 0.62 dB/100m @ 1 MHz 1.21 dB/100m @ 5 MHz 2.14 dB/100m @ 10 MHz 4.15 dB/100m @ 50 MHz 6.50 dB/100m @ 100 MHz 9.50 dB/100m @ 200 MHz 11.30 dB/100m @ 300 MHz 13.10 dB/100m @ 400 MHz 15.00 dB/100m @ 460 MHz 17.20 dB/100m @ 700 MHz 19.50 dB/100m @ 870 MHz 21.30 dB/100m @ 1000 MHz 29.00 dB/100m @ 1750 MHz 32.00 dB/100m @ 2000 MHz 35.10 dB/100m @ 2500 MHz 39.00 dB/100m @ 3000 MHz |
| Return Loss | > 20 dB (5-470 MHz) > 18 dB (470-1000 MHz) |
| Capacitance | 52 pF/m ± 3 pF/m |
| Velocity Ratio | 82% |
| DCR Inner Conductor | 22 Ohm/km |
| DCR Shield | 11 Ohm/km |
| Screening Factor | > 55 dB (1-1000 MHz) |
| Dielectric Strength | 2500 VAC |
| Jacket Sparker | 4000 VAC |
| Physical Characteristics | Description |
|---|---|
| Maximum Pulling Tension | 470 N |
| Minimum Bending Radius | Installation: 10 x Cable Diameter Operation: 4 x Cable Diameter |
| Operating / Storage Temperature | -20°C to +75°C |
| Installation Temperature | 0°C to +60°C |
| Jacket Color | Black |
| Jacket Material | PE |

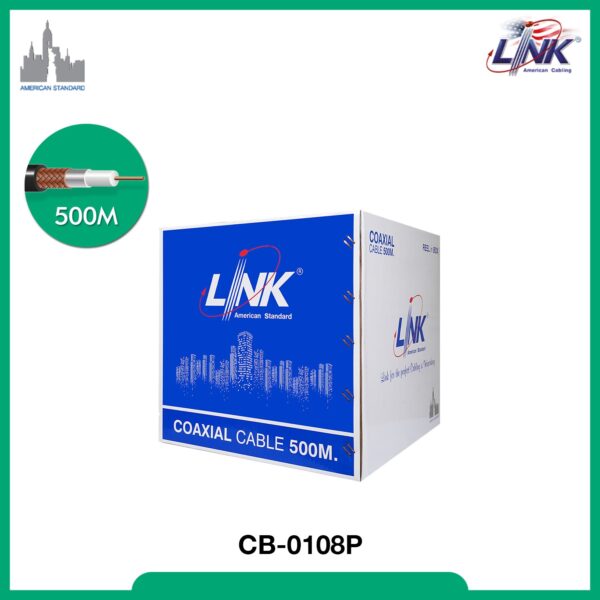

| Packaging | 500 m / Reel in Box |
| Standards | Description |
|---|---|
| Standard | MIL-C-17F, MIL-C-17G, ANSI/TIA-568-C.4 |
| Compliance | UL Communication Cable, UL CATV Cable, RoHS Compliant |
Note: The LINK CB-0108P is an RG 6/U MILITARY GRADE Outdoor Coaxial Cable featuring a 1.02 mm (18AWG) Bare Copper inner conductor, Foamed Polyethylene dielectric, 95% Bare Copper braid shielding, bonded AL/P-Foil shielding, and a black PE jacket. It is designed for CCTV, CATV, MATV, HDTV, TV Cable, and RF signal transmission.
Important: The CB-0108P is the outdoor version of the CB-0108. It features 75 Ohm impedance, 95% shielding, a black PE jacket, and is supplied as a 500 m reel in a box.
