Specifications LINK CB-0109S+
| Features | Description |
|---|---|
| Product Type | RG 6/U Coaxial Cable |
| Grade | STANDARD+ |
| Application | CCTV, CATV, MATV, HDTV, TV Cable, RF Signal Transmission |
| Inner Conductor | Copper Covered Steel, 1.02 mm (18AWG) |
| Dielectric | Foamed Polyethylene, 4.57 mm |
| Shield Tape | AL/P-Foil (Bonded), 100% Coverage |
| Braid Wire | Aluminum, 0.16 mm x 144 Wires |
| Shield Coverage | 96% |
| Jacket | Black PVC/LSZH |
| Impedance | 75 Ohm |
| Cable Diameter | Approx. 6.9 mm |
| Electrical Characteristics | Description |
|---|---|
| Capacitance | 52 pF/m ± 3 pF/m |
| Velocity Ratio | 82% |
| DCR Inner Conductor | 99 Ohm/km |
| DCR Shield | 17.5 Ohm/km |
| Dielectric Strength | 2500 VAC |
| Return Loss (5-470 MHz) | ≥ 25 dB |
| Return Loss (470-1000 MHz) | ≥ 20 dB |
| Return Loss (1000-2000 MHz) | ≥ 15 dB |
| Screening Factor | VHF: ≤ 85 dB / UHF: ≤ 75 dB |
| Physical Characteristics | Description |
|---|---|
| Minimum Bending Radius | 10 x Cable Diameter during Installation |
| Operating Temperature | -20°C to +75°C |
| Installation Temperature | 0°C to +60°C |
| Jacket Color | Black |

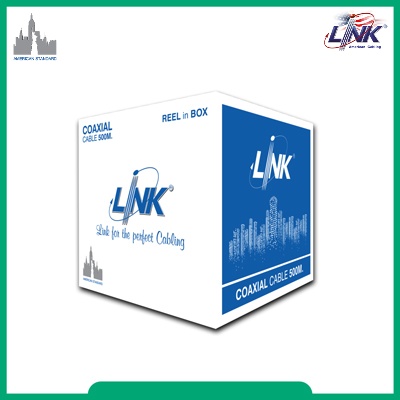

| Packaging | 500 m / Reel in Box |
| Standards | Description |
|---|---|
| Standard | ANSI/TIA-568-C.4 |
| Compliance | RoHS Compliant |
Note: The LINK CB-0109S+ is an RG 6/U STANDARD+ Coaxial Cable featuring a 1.02 mm Copper Covered Steel inner conductor, Foamed Polyethylene dielectric, 96% aluminum braid shielding, and a bonded AL/P-Foil shield. It is designed for CCTV, CATV, MATV, HDTV, TV Cable, and RF signal transmission.
Important: The CB-0109S+ uses a 75 Ohm impedance and is supplied in a 500 m reel. The 96% shielding provides improved protection against EMI/RFI interference compared with standard RG6 cable.
