Specifications LINK CB-0109SM+
| Features |
Description |
| Product Type |
RG 6/U Coaxial Cable with Messenger Wire |
| Grade |
STANDARD+ |
| Application |
Outdoor CCTV, CATV, MATV, HDTV, TV Cable, RF Signal Transmission |
| Installation |
Outdoor / Aerial Installation |
| Inner Conductor |
Copper Covered Steel, 1.02 mm (18AWG) |
| Dielectric |
Foamed Polyethylene, 4.57 mm |
| Shield Tape |
AL/P-Foil |
| Braid Wire |
Aluminum, 0.16 mm x 144 Wires |
| Shield Coverage |
96% |
| Jacket |
Black PE |
| Cable Diameter |
Approx. 6.9 mm |
| Impedance |
75 Ohm |
| Messenger Wire |
Galvanized Steel |
| Electrical Characteristics |
Description |
| Capacitance |
52 pF/m ± 3 pF/m |
| Velocity Ratio |
82% |
| DCR Inner Conductor |
78 Ohm/km |
| DCR Shield |
17.5 Ohm/km |
| Return Loss (5-470 MHz) |
> 25 dB |
| Return Loss (470-1000 MHz) |
> 23 dB |
| Return Loss (1000-2000 MHz) |
> 20 dB |
| Screening Factor |
VHF: 80 dB / UHF: 75 dB |
| Dielectric Strength |
2500 VAC |
| Jacket Sparker |
4000 VAC |
| Physical Characteristics |
Description |
| Maximum Pulling Tension |
470 N |
| Minimum Bending Radius |
Installation: 10 x Cable Diameter
Operation: 4 x Cable Diameter |
| Operating / Storage Temperature |
-20°C to +75°C |
| Installation Temperature |
0°C to +60°C |
| Jacket Color |
Black |
| Jacket Material |
PE |
| Packaging |
500 m / Reel in Box |
| Standards |
Description |
| Standard |
ANSI/TIA-568-C.4 |
| Compliance |
RoHS Compliant |

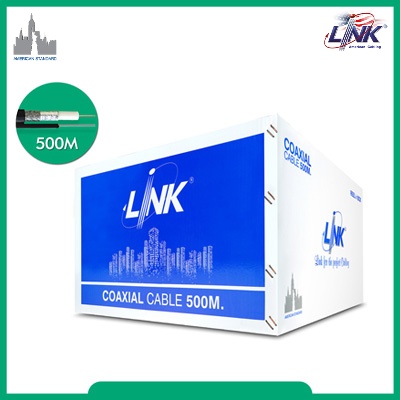

Note: The LINK CB-0109SM+ is an RG 6/U STANDARD+ Outdoor Coaxial Cable with a built-in messenger wire. It features a 1.02 mm (18AWG) Copper Covered Steel inner conductor, Foamed Polyethylene dielectric, 96% aluminum braid shielding, AL/P-Foil shielding, and a black PE jacket. It is designed for outdoor aerial installations, CCTV, CATV, MATV, HDTV, and RF signal transmission.
Important: The CB-0109SM+ combines the specifications of the CB-0109S+ with an integrated galvanized steel messenger wire for aerial cable installation.
