Specifications LINK CB-0109S+WH
| Features |
Description |
| Product Type |
RG 6/U Coaxial Cable |
| Grade |
STANDARD+ |
| Application |
CCTV, CATV, MATV, HDTV, TV Cable, RF Signal Transmission |
| Inner Conductor |
Copper Covered Steel, 1.02 mm (18AWG) |
| Dielectric |
Foamed Polyethylene, 4.57 mm |
| Shield Tape |
AL/P-Foil, 100% Coverage |
| Braid Wire |
Aluminum, 0.16 mm x 144 Wires |
| Shield Coverage |
96% |
| Jacket |
White PVC |
| Impedance |
75 Ohm |
| Cable Diameter |
Approx. 6.9 mm |
| Electrical Characteristics |
Description |
| Capacitance |
52 pF/m ± 3 pF/m |
| Velocity Ratio |
82% |
| DCR Inner Conductor |
78 Ohm/km |
| DCR Shield |
17.5 Ohm/km |
| Return Loss (5-470 MHz) |
> 25 dB |
| Return Loss (470-1000 MHz) |
> 23 dB |
| Return Loss (1000-2000 MHz) |
> 20 dB |
| Dielectric Strength |
2500 VAC |
| Jacket Sparker |
4000 VAC |
| Physical Characteristics |
Description |
| Maximum Pulling Tension |
470 N |
| Minimum Bending Radius |
Installation: 10 x Cable Diameter
Operation: 4 x Cable Diameter |
| Operating / Storage Temperature |
-20°C to +75°C |
| Installation Temperature |
0°C to +60°C |
| Jacket Color |
White |
| Packaging |
500 m / Reel in Box |
| Standards |
Description |
| Standard |
ANSI/TIA-568-C.4 |
| Compliance |
RoHS Compliant |

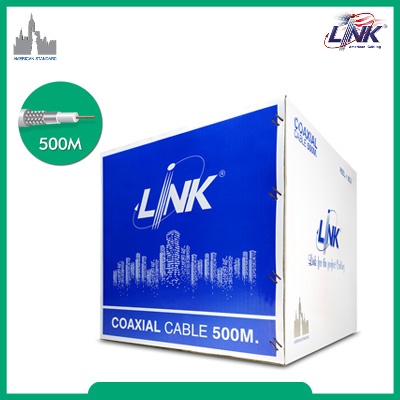

Note: The LINK CB-0109S+WH is an RG 6/U STANDARD+ Coaxial Cable featuring a 1.02 mm Copper Covered Steel inner conductor, Foamed Polyethylene dielectric, 96% aluminum braid shielding, and AL/P-Foil shielding. It is designed for CCTV, CATV, MATV, HDTV, TV Cable, and RF signal transmission.
Important: The CB-0109S+WH is the white-jacket version of the CB-0109S+. It uses 75 Ohm impedance and is supplied as a 500 m reel in a box.
