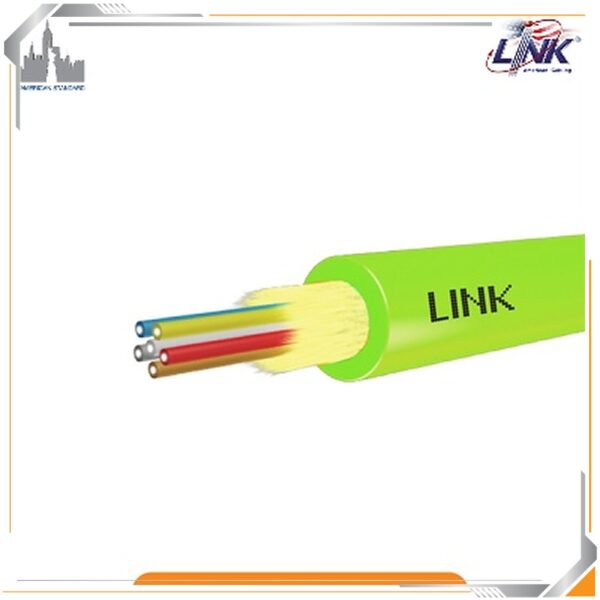

Specifications LINK UFC2212
| Features | Description |
|---|---|
| Device Type | Indoor Multi-Core LSZH Distribution Fiber Optic Cable |
| Fiber Type | OM5 50/125μm Wideband Multi-Mode Fiber (WBMMF) |
| Core Count | 12 Core |
| Cable Construction | Tight Buffer / Distribution Structure with LSZH Sheath |
| Jacket Material | Lime Green FR-LSZH (Flame Retardant Low Smoke Zero Halogen) |
| Installation | Indoor, Tray, Conduit, Data Center and Sub-Rack Distribution |
| Water Protection | Indoor Non-Waterproof Structure |
| Strength Member | Aramid Yarn (Kevlar) Reinforcement with Central Strength Member |
| Cable Length | 2,000 Meters per Drum (Available by Meter) |
| Application | Indoor Distribution, Backbone Cabling, Data Center, and Enterprise Networks |
| Fiber Standard | ITU-T G.651 OM5 Wideband Multi-Mode |
|---|---|
| Fiber Diameter | 50/125μm (0.9 mm Tight Buffer Fibers) |
| Flame Rating | FR-LSZH (Flame Retardant Low Smoke Zero Halogen) & OFNR |
| Installation Type | Indoor Distribution and Trunk Cabling Installation |
| Standards | ANSI/TIA/EIA-568.3-D/E, ISO/IEC 11801:2017, IEC 60332-1, IEC 61034-2, IEC 60754-2, ITU-T G.651, RoHS |
| Application | Short-Wavelength Division Multiplexing (SWDM), 10G, 40G, 100G, 400G Ethernet, Optical Distribution |
| SMART FEATURES | |
|---|---|
| Distribution Design | Compact Multi-Core Tight Buffer Structure Specially Designed for Indoor Backbone and Distribution Runs |
| OM5 Wideband Support | Optimized for Multi-Wavelength Transmission (850nm to 953nm) to Support SWDM Applications over Extended Distances |
| Flame Retardant LSZH Jacket | FR-LSZH Sheath Minimizes Smoke and Halogen-Free Toxic Gas Emission During Fire |
| High Tensile Strength | Aramid Yarn Reinforcement and Central Strength Member Provide Excellent Pulling Strength |
| Easy Termination | Individual Tight Buffer Fibers Allow Direct Connectorization and Splice Preparation |
| GENERAL | |
|---|---|
| Fiber Count | 12 Core |
| Cable Diameter | 6.5 ± 0.5mm |
| Cable Weight | Approx. 35 ± 5kg/km |
| Maximum Tensile Load | 400N (Installation), 200N (Operation) |
| Installation / Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Packing | 2,000m per Drum (Available by Meter) |
| Warranty | 30 Years |
Note: The LINK UFC2212 is a 12-core OM5 Wideband 50/125μm multimode distribution fiber optic cable featuring a lime green flame-retardant low smoke zero halogen (LSZH) jacket, designed specifically for advanced data centers supporting Short-Wavelength Division Multiplexing (SWDM). It features tight buffer construction with flexible aramid yarn reinforcement. The cable complies with international standards, making it ideal for safe indoor routing, high-capacity rack-to-rack links, and high-speed multi-wavelength optical networks.
Important: The LINK UFC2212 is a 12-core OM5 (50/125μm) wideband multimode distribution fiber optic cable featuring tight buffer construction, lime green FR-LSZH flame-retardant jacket for safety, aramid strength members, and SWDM optimization. It supports high-bandwidth 10G, 40G, 100G, and 400G applications over extended multi-wavelength spans, making it ideal for modern high-density data center infrastructure and backbone distribution.
