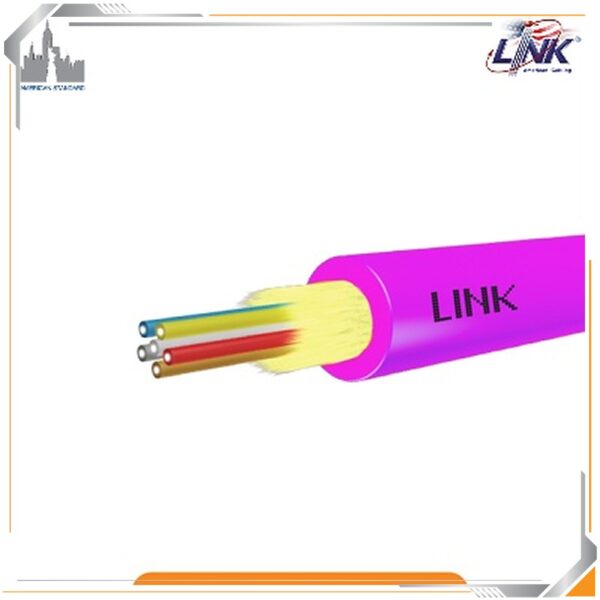

Specifications LINK UFC3212
| Features | Description |
|---|---|
| Device Type | Indoor Multi-Core LSZH Distribution Fiber Optic Cable |
| Fiber Type | OM4 50/125μm XG Multi-Mode Fiber |
| Core Count | 12 Core |
| Cable Construction | Tight Buffer / Distribution Structure with LSZH Sheath |
| Jacket Material | Erika Violet (Magenta) FR-LSZH (Flame Retardant Low Smoke Zero Halogen) |
| Installation | Indoor, Tray, Conduit, Data Center and Sub-Rack Distribution |
| Water Protection | Indoor Non-Waterproof Structure |
| Strength Member | Aramid Yarn (Kevlar) Reinforcement with Central Strength Member |
| Cable Length | 2,000 Meters per Drum (Available by Meter) |
| Application | Indoor Distribution, Backbone Cabling, Data Center, and Enterprise Networks |
| Fiber Standard | ITU-T G.651 OM4 XG Multi-Mode |
|---|---|
| Fiber Diameter | 50/125μm (0.9 mm Tight Buffer Fibers) |
| Flame Rating | FR-LSZH (Flame Retardant Low Smoke Zero Halogen) & OFNR |
| Installation Type | Indoor Distribution and Trunk Cabling Installation |
| Standards | ANSI/TIA/EIA-568.3-D/E, ISO/IEC 11801:2017, IEC 60794-2, IEC 60332-1, IEC 61034-2, IEC 60754-2, ITU-T G.651, RoHS |
| Application | 10G, 40G, 100G Ethernet, Optical Distribution, and Internal Backbone |
| SMART FEATURES | |
|---|---|
| Distribution Design | Compact Multi-Core Tight Buffer Structure Specially Designed for Indoor Backbone and Distribution Runs |
| Flame Retardant LSZH Jacket | FR-LSZH Sheath Minimizes Smoke and Halogen-Free Toxic Gas Emission During Fire |
| High Tensile Strength | Aramid Yarn Reinforcement and Central Strength Member Provide Excellent Pulling Strength |
| Easy Termination | Individual Tight Buffer Fibers Allow Direct Connectorization and Splice Preparation |
| High-Speed Network Support | Supports Ultra-High-Speed 10G, 40G and 100G Ethernet Applications Over Longer Distances |
| GENERAL | |
|---|---|
| Fiber Count | 12 Core |
| Cable Diameter | 6.5 ± 0.5mm |
| Cable Weight | Approx. 35 ± 5kg/km |
| Maximum Tensile Load | 400N (Installation), 200N (Operation) |
| Installation / Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Packing | 2,000m per Drum (Available by Meter) |
| Warranty | 30 Years |
Note: The LINK UFC3212 is a 12-core OM4 XG 50/125μm multimode distribution fiber optic cable featuring an erika violet flame-retardant low smoke zero halogen (LSZH) jacket, designed specifically for indoor multi-core distribution and backbone applications. It features tight buffer construction with flexible aramid yarn reinforcement. The cable complies with ANSI/TIA, ISO/IEC, IEC, and ITU-T standards, making it ideal for safe indoor data center routing, rack-to-rack links, and ultra-high-speed 10G/40G/100G telecommunication network distribution.
Important: The LINK UFC3212 is a 12-core OM4 XG (50/125μm) multimode distribution fiber optic cable featuring tight buffer construction, erika violet FR-LSZH flame-retardant jacket for safety, aramid yarn strength members, and direct termination capability. It supports ultra-high-speed 10G, 40G, and 100G network applications and is ideal for indoor backbone routing, data center trunk wiring, and enterprise fiber optic infrastructure.
