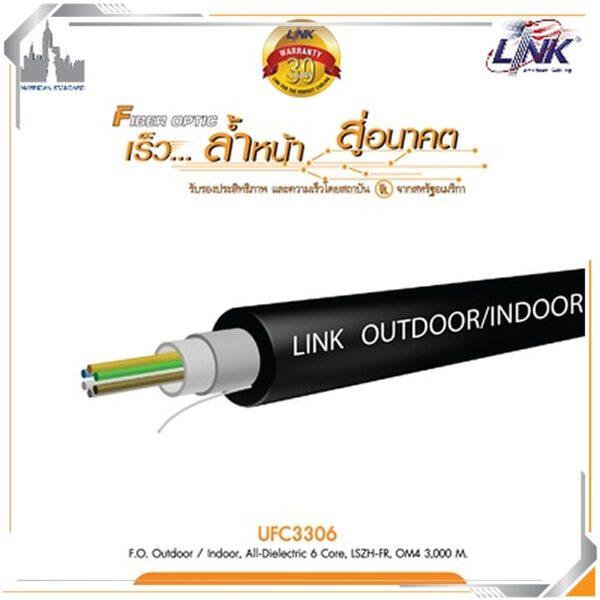

Specifications LINK UFC3306
| Features | Description |
|---|---|
| Device Type | Outdoor/Indoor All-Dielectric Fiber Optic Cable |
| Fiber Type | OM4 Multimode 50/125 μm |
| Core Count | 6 Core |
| Cable Construction | Single Loose Tube, All-Dielectric |
| Water Blocking | Waterproof Gel Filled Tube with Water Blocking E-Glass Yarn |
| Strength Member | Water Blocking E-Glass Yarn (Non-Metallic) |
| Outer Jacket | UV-Resistant FR-LSZH (Low Smoke Zero Halogen) |
| Jacket Color | Black |
| Cable Length | 3,000 Meters / Drum |
| Application | Campus Backbone, Building Backbone, Indoor/Outdoor Duct, Lash Aerial, Data Center, FTTx, CATV, CCTV and Enterprise Networks |
| Cable Standard | ANSI/TIA-568.3-D, ISO/IEC 11801:2017 |
|---|---|
| Fiber Standard | ITU-T G.651.1 OM4 Multimode |
| Core Size | 50/125 μm |
| Number of Fibers | 6 Core |
| Fiber Construction | Single Loose Tube with Waterproof Gel Filling |
| Strength Member | Water Blocking E-Glass Yarn |
| Rip Cord | Included |
| Outer Jacket | UV-Resistant FR-LSZH |
| Cable Diameter | Approximately 7.2 ± 0.5 mm |
| Cable Weight | Approximately 53 ± 5 kg/km |
| SMART FEATURES | |
|---|---|
| All-Dielectric Design | Non-Metallic Construction Eliminates Electrical Conductivity and Grounding Requirements |
| OM4 Multimode Fiber | Optimized for High-Speed VCSEL Laser Transmission with Extended Modal Bandwidth for Data Center Networks |
| Water Blocking Protection | Gel-Filled Loose Tube and E-Glass Yarn Prevent Moisture Penetration and Improve Outdoor Reliability |
| LSZH Flame Retardant Jacket | Provides Low Smoke and Zero Halogen Performance for Safer Indoor Installations |
| High-Speed Optical Transmission | Supports 10G, 40G and 100G Ethernet, Fiber Channel, FTTx, CATV and CCTV Applications |
| GENERAL | |
|---|---|
| Cable Type | Outdoor/Indoor All-Dielectric Single Loose Tube Fiber Optic Cable |
| Maximum Tensile Load | 1,800 N (Installation) / 900 N (Operation) |
| Maximum Crush Resistance | 1,500 N / 10 cm |
| Minimum Bend Radius | 15 × Cable Diameter (Installation), 10 × Cable Diameter (Operation) |
| Installation / Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Standards Compliance | ANSI/TIA-568.3-D, ANSI/TIA-568-C.3, ANSI/ICEA 696, ANSI/ICEA 596, ISO/IEC 11801:2017, IEC 60793, IEC 60794-1-2, IEC 60332-1-2, IEC 61034-2, IEC 60754-2, Telcordia GR-20-CORE, ITU-T G.651.1, TIS 2165, RoHS |
| Packaging | 3,000m Drum |
| Warranty | 30 Years |
Note: The LINK UFC3306 is a 6-core OM4 50/125 μm multimode fiber optic cable designed for indoor and outdoor installations. It features an all-dielectric construction, gel-filled single loose tube, water-blocking E-glass yarn, and a UV-resistant FR-LSZH jacket, providing high-bandwidth optical transmission with excellent protection against moisture, UV exposure, and harsh environmental conditions.
Important: The LINK UFC3306 supports IEEE 802.3 Gigabit Ethernet, 10G, 40G and 100G Ethernet, Fiber Channel, FTTx, CATV, CCTV, and campus backbone applications. The OM4 fiber offers a minimum modal bandwidth of 3,500 MHz·km for high-performance data center connectivity, while the all-dielectric design eliminates grounding requirements and provides complete immunity to electromagnetic interference, making it ideal for duct and aerial backbone installations.
